PowerLogic Power and energy meter PM5350 with THD alarming

Item Number: METSEPM5350

1 PCE 0

Where To Buy

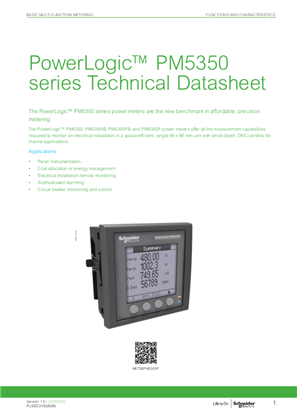

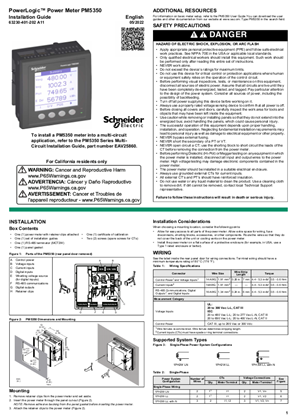

Datasheet

Download

Product Dimensions

Width96 mm

Height96 mm

Depth44 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480284311	-

Specifications

Design

Range	PowerLogic
Product or component type	power meter
Market segment	buildings small building cost management: billing: main incomer buildings small building cost management: billing: sub feeder buildings medium building cost management: billing: main incomer buildings medium building cost management: billing: sub feeder buildings large building cost management: billing: main incomer buildings large building cost management: billing: sub feeder buildings multi-site cost management: billing: main incomer buildings multi-site cost management: billing: sub feeder data center cost management: billing: main incomer data center cost management: billing: sub feeder healthcare cost management: billing: main incomer healthcare cost management: billing: sub feeder industry cost management: billing: main incomer industry cost management: billing: sub feeder buildings small building cost management: cost allocation: main incomer buildings small building cost management: cost allocation: sub feeder buildings medium building cost management: cost allocation: main incomer buildings medium building cost management: cost allocation: sub feeder buildings large building cost management: cost allocation: main incomer buildings large building cost management: cost allocation: sub feeder buildings multi-site cost management: cost allocation: main incomer buildings multi-site cost management: cost allocation: sub feeder data center cost management: cost allocation: main incomer data center cost management: cost allocation: sub feeder healthcare cost management: cost allocation: main incomer healthcare cost management: cost allocation: sub feeder industry cost management: cost allocation: main incomer industry cost management: cost allocation: sub feeder buildings small building network management: main incomer buildings small building network management: sub feeder buildings medium building network management: main incomer buildings medium building network management: sub feeder buildings large building network management: sub feeder buildings multi-site network management: sub feeder data center network management: sub feeder healthcare network management: sub feeder industry network management: sub feeder
Device application	power monitoring
Warranty	18 months

Physical

[in] rated current	5 A 1 A
Communication port protocol	JBUS Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds
Connections - terminals	voltage circuit: screw terminal block4 control circuit: screw terminal block2 current transformer: screw terminal block6 input/output circuit: screw terminal block6 relay output: screw terminal block4
Mounting mode	flush-mounted
Type of installation	for indoor use in a stationary panel
Standards	IEC 61010-1
Product certifications	CE cULus
Width	96 mm
Depth	44 mm
Height	96 mm
Net weight	0.25 kg
Ip degree of protection	IP30 rear: conforming to IEC 60529 IP54 display: conforming to IEC 60529
Relative humidity	5...95 % at 50 °C non-condensing
Ambient air temperature for operation	-25...70 °C meter -20...70 °C display -25--20 °C (with reduced performance) display
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1103036EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	PowerLogic PM5350
Device short name	PM5350
Power quality analysis	total demand distortion total harmonic distortion
Type of measurement	current voltage frequency power factor energy apparent power active power reactive power
[us] rated supply voltage	85...265 V AC 45...65 Hz 100...300 V DC
Network frequency	50 Hz 60 Hz
Poles description	1P + N 3P + N 3P
Maximum power consumption in va	11.9 VA
Ride-through time	100 ms 120 V AC typical 400 ms 230 V AC typical 50 ms 125 V DC typical
Display type	monochrome graphic LCD
Display resolution	6 lines
Sampling rate	32 samples/cycle
Measurement current	5...9000 mA
Analogue input type	current 0.05...9 A (impedance <= 0.3 mOhm) voltage (impedance 10 MOhm)
Measurement voltage	35...480 V AC 45...65 Hz phase to phase 20...277 V AC phase to neutral
Frequency measurement range	45...70 Hz
Number of inputs	4 digital
Measurement accuracy	current +/- 0.3 % voltage +/- 0.3 % frequency +/- 0.05 % power factor +/- 0.005 active energy +/- 0.5 % reactive energy +/- 2 % active power +/- 0.5 % apparent power +/- 0.5 % apparent energy +/- 0.5 % reactive power +/- 2 %
Accuracy class	class 0.5S active energy conforming to IEC 62053-22 class 0.5 active energy conforming to IEC 61557-12 class 2 reactive energy conforming to IEC 62053-23 class 2 reactive energy conforming to IEC 61557-12 class 0.5 power conforming to IEC 61557-12
Number of outputs	2 relay
Communication port support	terminal block: RS485
Data recording	min/max of instantaneous values alarms
Electromagnetic compatibility	limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 electrostatic discharge conforming to IEC 61000-4-2 susceptibility to electromagnetic fields conforming to IEC 61000-4-3 electrical fast transient/burst immunity test conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 conducted RF disturbances conforming to IEC 61000-4-6 immunity to impulse waves conforming to IEC 61000-4-12 conducted and radiated emissions class A conforming to EN 55011 limits for harmonic current emissions conforming to IEC 61000-3-2
Overvoltage category	III
Pollution degree	2
Operating altitude	<= 3000 m
Compatibility code	PM5350
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.200 cm
Package 1 width	12.500 cm
Package 1 length	12.700 cm
Package 1 weight	346.000 g
Unit type of package 2	S03
Number of units in package 2	12
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	4.829 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	154 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.006503733108921
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1980474313008519
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.2486747197146317
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	146.226728779445
Carbon footprint of the use phase [b2, b3, b4, b6]	146 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6824836586448261
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
Take-back	No
Recyclability	Product designed for enhanced end-of-life management and recycling
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	154.36243832221425
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	a625a530-88d0-44af-8a48-7177db082926
China rohs label	5
Pvc free	Yes
End of life manual availability	ENVEOLI110314EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
