PM3000 series PM3210 power meter output digital and pulse

Home ProductsIndustrialPM3000 seriesPM3210 power meter

PM3000 series PM3210 power meter output digital and pulse

Item Number: METSEPM3210

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width90 mm

Height icon

Height95 mm

Depth icon

Depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PowerLogic

Product or component type

power meter

Market segment

  • buildings small building cost management: billing: sub feeder
  • buildings medium building cost management: billing: sub feeder
  • buildings large building cost management: billing: sub feeder
  • buildings multi-site cost management: billing: sub feeder
  • data center cost management: billing: sub feeder
  • healthcare cost management: billing: sub feeder
  • industry cost management: billing: sub feeder
  • buildings small building cost management: cost allocation: sub feeder
  • buildings medium building cost management: cost allocation: sub feeder
  • buildings large building cost management: cost allocation: sub feeder
  • buildings multi-site cost management: cost allocation: sub feeder
  • data center cost management: cost allocation: sub feeder
  • healthcare cost management: cost allocation: sub feeder
  • industry cost management: cost allocation: sub feeder

Device application

  • power monitoring
  • multi-tariff
  • sub billing

Market segment

  • residential
  • small commercial

Warranty

18 months

Physical

[in] rated current

  • 1 A
  • 5 A

Communication port protocol

-

Mounting mode

clip-on

Mounting support

DIN rail

Standards

  • BS EN 61557-12
  • IEC 61557-12
  • EN 61557-12
  • BS EN 61326-1
  • IEC 61326-1
  • EN 61326-1
  • BS EN 62052-11
  • IEC 62052-11
  • EN 62052-11
  • BS EN 62053-21
  • IEC 62053-21
  • EN 62053-21
  • BS EN 62053-22
  • IEC 62053-22
  • EN 62052-22
  • BS EN 62053-23
  • IEC 62053-23
  • EN 62052-23
  • BS EN 61010-1
  • EN 61010-1
  • IEC 61010-1
  • UL 61010-1
  • BS EN 61010-2-30
  • IEC 61010-2-30
  • EN 61010-2-30
  • UL 61010-2-30
  • ANSI C12.20

Product certifications

  • CE conforming to IEC 61010-1 (safety)
  • CE conforming to EN 61557-12 (power monitor)
  • CE conforming to EN/IEC 61326-1 (EMC)
  • UKCA conforming to BS EN 61010-1 (safety)
  • UKCA conforming to BS EN 61557-12 (power monitor)
  • UKCA conforming to BS EN 61326-1 (EMC)
  • cULus conforming to EN 61010-1 (safety)
  • cULus conforming to UL 61010-1 (safety)
  • EAC (sub-meter)
  • RCM

Width

90 mm

Depth

70 mm

Height

95 mm

Net weight

0.26 kg

Ip degree of protection

  • IP40 front panel: conforming to IEC 60529
  • IP20 body: conforming to IEC 60529

Relative humidity

5...95 % at 50 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111275EN_V1

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Package 2 bare product quantity

16

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Product name

PowerLogic PM3000

Device short name

PM3210

Power quality analysis

up to the 15th harmonic

Type of measurement

  • active and reactive power
  • apparent power
  • current
  • voltage
  • energy
  • power factor
  • frequency
  • total current harmonic distortion THD (I)
  • total voltage harmonic distortion THD (U)

[us] rated supply voltage

  • 100...277 V AC 45...65 Hz
  • 173...480 V AC 45...65 Hz
  • 100...300 V DC

Network frequency

  • 50 Hz
  • 60 Hz

Poles description

  • 3P
  • 3P + N
  • 1P + N

Power consumption in va

5 VA

Display type

backlit LCD

Display resolution

128 x 96 pixels

Sampling rate

32 samples/cycle

Measurement current

  • 0.05...6 A
  • 0.02...1.2 A

Analogue input type

  • current 0...5 A
  • current 0...1 A

Measurement voltage

  • 50...330 V AC 45...65 Hz direct
  • 50...330 V AC 45...65 Hz phase to neutral
  • 80...570 V AC 45...65 Hz direct
  • 80...570 V AC 45...65 Hz phase to phase
  • 570...999000 V AC 45...65 Hz with external VT

Frequency measurement range

45...65 Hz

Number of inputs

0

Measurement accuracy

  • current 0.3 % 0.5...6 A
  • current 0.5 % 0.1...1.2 A
  • voltage 0.3 % 50...330 V
  • voltage 0.3 % 80...570 V

Accuracy class

  • class 0.5S active energy conforming to IEC 62053-22
  • class 1 active energy conforming to IEC 62053-21
  • class 2 reactive energy conforming to IEC 62053-23
  • class C active energy conforming to EN 50470-3

Number of outputs

1 pulse

Information displayed

tariff (4)

Communication port support

-

Data recording

  • time stamping
  • 5 alarms
  • min/max of instantaneous values

Electromagnetic compatibility

  • electrostatic discharge level 4 conforming to IEC 61000-4-2
  • susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3
  • electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
  • surge immunity test level 4 conforming to IEC 61000-4-5
  • conducted RF disturbances level 3 conforming to IEC 61000-4-6
  • magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8
  • conducted and radiated emissions class B conforming to EN 55022

Overvoltage category

III

Pollution degree

2

Operating altitude

< 3000 m

Compatibility code

PM3210

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.000 cm

Package 1 width

13.700 cm

Package 1 length

13.700 cm

Package 1 weight

401.800 g

Unit type of package 2

S03

Number of units in package 2

16

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.829 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

98 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

10.815660481399393

Carbon footprint of the manufacturing phase [a1 to a3]

11 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

1.0009804722124478

Carbon footprint of the distribution phase [a4]

1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.00835582582520214

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

84.932165148063

Carbon footprint of the use phase [b2, b3, b4, b6]

85 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.7700782306661914

Carbon footprint of the end-of-life phase [c1 to c4]

0.8 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

97.52724015816624

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

0d026977-a1e0-4601-9bc0-3c33c8eca8cf

End of life manual availability

ENVEOLI111258EN_V1

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Other technical guide

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

  • Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.
METSEPM3210 3D-simplified eClass
ZIP

METSEPM3210 3D-simplified eClass

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.1 MB
PM3210_Energy Meter_3D CAD_Zip File
ZIP

PM3210_Energy Meter_3D CAD_Zip File

VERSION

1.0

DATE

11 Apr 2022

REVISION

1.0

DOWNLOAD (ZIP) 613.1 KB
PM3210_Energy Meter_3D CAD_Simplified File
ZIP

PM3210_Energy Meter_3D CAD_Simplified File

VERSION

1.0

DATE

06 Apr 2022

REVISION

1.0

DOWNLOAD (ZIP) 4.7 MB
Smart Panels: Embrace the future of power distribution (eBrochure)
PDF

Smart Panels: Embrace the future of power distribution (eBrochure)

VERSION

1.0

DATE

17 Apr 2019

REVISION

1.0

DOWNLOAD (PDF) 12.5 MB
PowerLogic Energy & Power Meters Catalogue for Panel Builders
ZIP

PowerLogic Energy & Power Meters Catalogue for Panel Builders

VERSION

6.2

DATE

18 Apr 2025

REVISION

6.2

DOWNLOAD (ZIP) 34.4 MB
PowerLogic Power Monitoring and Control Catalog - Web
ZIP

PowerLogic Power Monitoring and Control Catalog - Web

VERSION

9.3

DATE

18 Apr 2025

REVISION

9.3

DOWNLOAD (ZIP) 60.3 MB

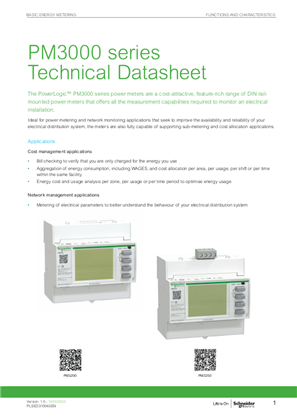

PowerLogic PM3000 series Technical Datasheet
ZIP

PowerLogic PM3000 series Technical Datasheet

VERSION

3.0

DATE

18 May 2022

REVISION

3.0

DOWNLOAD (ZIP) 1.2 MB
PowerLogic PM32XX series, Circularity Profile, End of Life Instructions
ZIP

PowerLogic PM32XX series, Circularity Profile, End of Life Instructions

VERSION

1.0

DATE

27 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 419.3 KB
PowerLogic PM32XX, Environmental Disclosure, Product Environmental Profile
ZIP

PowerLogic PM32XX, Environmental Disclosure, Product Environmental Profile

VERSION

1.0

DATE

27 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 498.6 KB

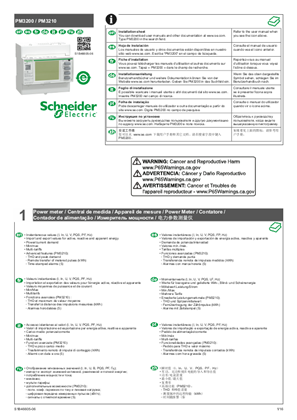

PM3200 / PM3210 - Instruction sheet
ZIP

PM3200 / PM3210 - Instruction sheet

VERSION

6.0

DATE

11 Nov 2022

REVISION

6.0

DOWNLOAD (ZIP) 3.4 MB

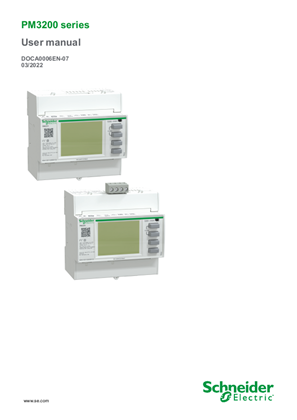

PM3200 series - User Manual
ZIP

PM3200 series - User Manual

VERSION

6.0

DATE

07 Aug 2023

REVISION

6.0

DOWNLOAD (ZIP) 3.2 MB

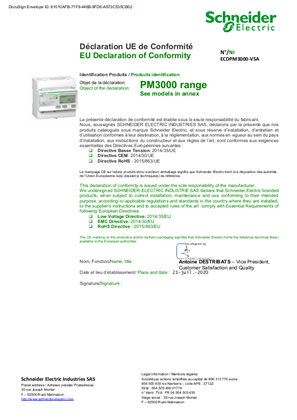

PM3000 range_EU Declaration of Conformity
ZIP

PM3000 range_EU Declaration of Conformity

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 430.1 KB

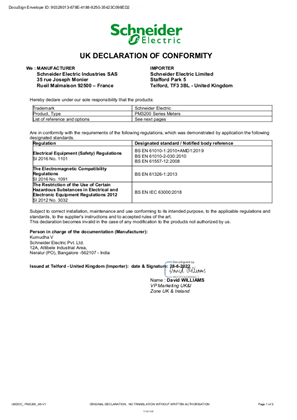

UK Declaration of Conformity
ZIP

UK Declaration of Conformity

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 398.8 KB

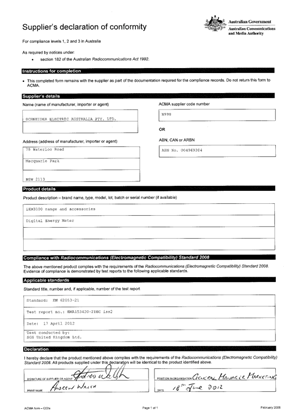

PM32xx series_RCM_Certificate
ZIP

PM32xx series_RCM_Certificate

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 165.7 KB

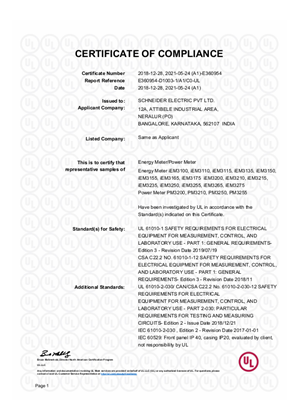

PM32xx series_UL_Certificate of Compliance
ZIP

PM32xx series_UL_Certificate of Compliance

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 173 KB

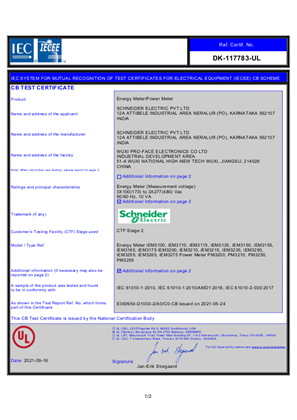

PM32xx series_UL_CB Certificate
ZIP

PM32xx series_UL_CB Certificate

VERSION

1.0

DATE

12 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 207.1 KB
METSEPM3210 China RoHS Declaration
ZIP

METSEPM3210 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 China RoHS Declaration
ZIP

METSEPM3210 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 China RoHS Declaration
ZIP

METSEPM3210 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 China RoHS Declaration
ZIP

METSEPM3210 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 China RoHS Declaration
ZIP

METSEPM3210 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 China RoHS Declaration
ZIP

METSEPM3210 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 EU RoHS Declaration
ZIP

METSEPM3210 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 EU RoHS Declaration
ZIP

METSEPM3210 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 EU RoHS Declaration
ZIP

METSEPM3210 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 EU RoHS Declaration
ZIP

METSEPM3210 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 EU RoHS Declaration
ZIP

METSEPM3210 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 EU RoHS Declaration
ZIP

METSEPM3210 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 REACh Declaration
ZIP

METSEPM3210 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 REACh Declaration
ZIP

METSEPM3210 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 REACh Declaration
ZIP

METSEPM3210 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 REACh Declaration
ZIP

METSEPM3210 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 REACh Declaration
ZIP

METSEPM3210 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
METSEPM3210 REACh Declaration
ZIP

METSEPM3210 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
VISIO iEM3xxx
ZIP

VISIO iEM3xxx

VERSION

1.0

DATE

25 Jan 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.7 MB

Recently viewed
