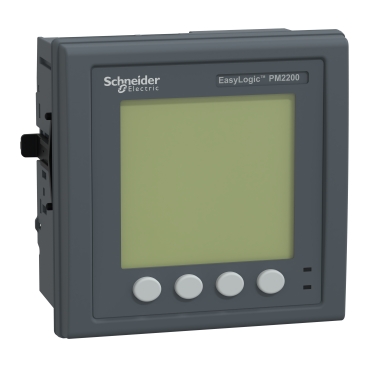

PM2000 series Power & Energy meter

Item Number: METSEPM2230

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For METSEPM2230

Download

Product Dimensions

Width96 mm

Height96 mm

Depth<ul><li>total : 76.09 mm</li><li>embedded : 61.64 mm</li></ul>

See full specifications

Barcode

Qty	EAN	Colour
1	3606480800184	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480800184	-

Specifications

Design

Range

EasyLogic

Product or component type

power meter

Device application

power monitoring
sub billing

Physical

[in] rated current

Control type

4 x button

Local signalling

red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
green LED: module operation and integrated communication

Communication port protocol

Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V

Function available

real time clock

Product certifications

CE conforming to IEC 61010-1
cULus conforming to UL 61010-1
cULus conforming to CSA C22.2 No 61010-1
RCM
EAC
C-Tick

Mounting mode

clip-on

Mounting position

vertical

Mounting support

framework

Provided equipment

1 x installation guide

Electrical insulation class

double insulation
class II

Connections - terminals

current transformer: screw connection (bottom) 6
voltage inputs: screw connection (top) 4

Width

96 mm

Depth

total : 76.09 mm
embedded : 61.64 mm

Height

96 mm

Net weight

300 g

Ip degree of protection

IP54 front: conforming to IEC 60529
IP30 body: conforming to IEC 60529

Relative humidity

5...95 % at 50 °C

Ambient air temperature for operation

-10...60 °C

Ambient air temperature for storage

-25...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1510004_V2

Circularity profile

ENVEOLI1510004_V2

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polycarbonate

Others

Package 2 bare product quantity

Package 1 bare product quantity

Product name

EasyLogic PM2200

Device short name

PM2230

Power quality analysis

total harmonic distortion
up to the 31st harmonic

Type of measurement

apparent power min/max, total
active and reactive power min/max, total
current min/max, avg
voltage min/max, avg
frequency min/max, avg
total current harmonic distortion THD (I) per phase
total voltage harmonic distortion THD (U) per phase
power factor min/max, avg
apparent energy total
active and reactive energy total

Metering type

calculated neutral current
active power P, P1, P2, P3
current I, I1, I2, I3
peak demand power PM, QM, SM
voltage U, U21, U32, U13, V, V1, V2, V3
peak demand currents
reactive power Q, Q1, Q2, Q3
demand power P, Q, S
unbalance current
active, reactive, apparent energy (signed, four quadrant)
apparent power S, S1, S2, S3

Accuracy class

class 1 reactive energy conforming to IEC 62053-24
class 0.5S active energy conforming to IEC 62053-22
class 5 harmonic distorsion (I THD & U THD)

Measurement accuracy

apparent power +/- 0.5 %
active energy +/- 0.5 %
reactive energy +/- 1 %
active power +/- 0.5 %
voltage +/- 0.5 %
power factor +/- 0.01
current +/- 0.5 %
frequency +/- 0.05 %

Measurement current

5...6000 mA

Measurement voltage

35...480 V AC 50/60 Hz between phases
20...277 V AC 50/60 Hz between phase and neutral
480...999000 V AC 50/60 Hz with external VT

Frequency measurement range

45...65 Hz

[us] rated supply voltage

80...277 V AC 45...65 Hz +/- 10 %
100...277 V DC +/- 10 %

Network frequency

60 Hz
50 Hz

Ride-through time

50 ms 120 V AC typical
50 ms 230 V AC typical
50 ms 125 V DC typical

Maximum power consumption in va

8 VA at 277 V AC

Maximum power consumption in w

3.3 W (power lines (AC))
3.3 W at 277 V (power lines (DC))

Analogue input type

current (impedance <= 0.3 mOhm)
voltage (impedance > 5 MOhm)

Tamperproof of settings

protected by access code

Display type

backlit LCD

Display colour

monochrome

Display resolution

128 x 128 pixels

Refresh time

configurable from 1 to 60 min

Information displayed

demand current (past value)
demand current (present value)
demand power (past value)
demand power (present value)
voltage
current
frequency
energy consumption
harmonic distortion
power factor
active power
apparent power
reactive power
unbalanced in %
harmonic amplitude

Number of inputs

Number of outputs

Communication port support

screw terminal block: RS485

Data recording

energy consumption logs
power logs
time stamping
min/max for 8 parameters

Sampling rate

64 samples/cycle

Cybersecurity

enable/disable communication ports

Communication service

remote monitoring

User language

Russian
French
Portuguese
English
Spanish
Chinese
German

Measurement category

category III 480-480 V
category II 480-600 V

Flame retardance

V-0 conforming to UL 94

Compatibility code

PM2230

Service life

7 year(s)

Pollution degree

Operating altitude

<= 2000 m

Electromagnetic compatibility

electrostatic discharge conforming to IEC 61000-4-2
radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3
electrical fast transient/burst immunity test conforming to IEC 61000-4-4
surge immunity test conforming to IEC 61000-4-5
conducted RF disturbances conforming to IEC 61000-4-6
magnetic field at power frequency conforming to IEC 61000-4-8
voltage dips and interruptions immunity test conforming to IEC 61000-4-11
emission tests conforming to FCC part 15 class A

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

12.500 cm

Package 1 width

9.000 cm

Package 1 length

12.000 cm

Package 1 weight

355.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

7.025 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Green premium status for reporting

Green Premium product

Scip number

6599793e-9401-4187-a617-35919522fe23

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

130.66126109502835

Global warming ; total life cycle

131 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

PM2000 series Power & Energy meter

Item Number: METSEPM2230

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

CAD Files and Packs

Product Brochures

Other technical guide

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Declaration of Conformity

Firmware

Software - Hotfix

EasyLogic Power & Energy meter PM22xx - 3D CAD

Range Product description - 3D CAD

EasyLogic Power Metering Panorama - Web Version

IP54 Gasket Technical Datasheet

IP65 Accessory kit Technical Datasheet

EasyLogic PM2000 Series Technical Datasheet

EasyLogic Power & Energy meter PM22xx - 3D CAD

Range Product description - 3D CAD

EasyLogic Power Metering Panorama - Web Version

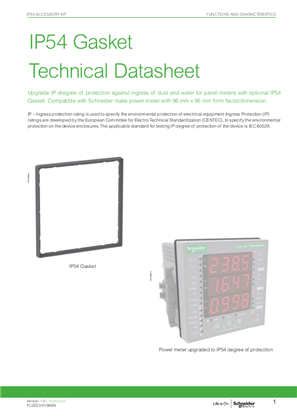

IP54 Gasket Technical Datasheet

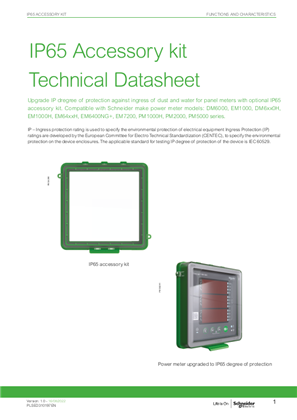

IP65 Accessory kit Technical Datasheet

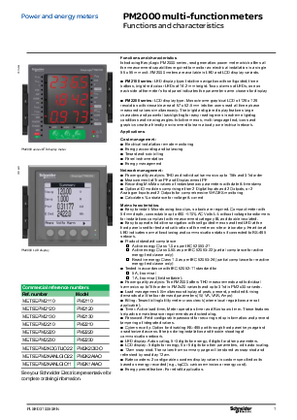

EasyLogic PM2000 Series Technical Datasheet

EasyLogic™ Power metering range catalog

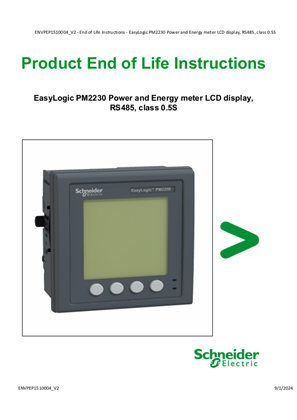

EasyLogic PM200, Circularity Profile, End of Life Instructions

EasyLogic PM2200, Environmental Disclosure, Product Environmental Profile

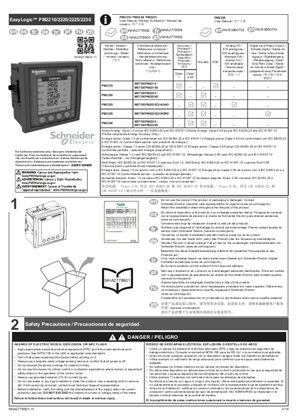

EasyLogic™ PM2210/2220/2225/2230 - English

EasyLogic™ PM2200 series User Manual

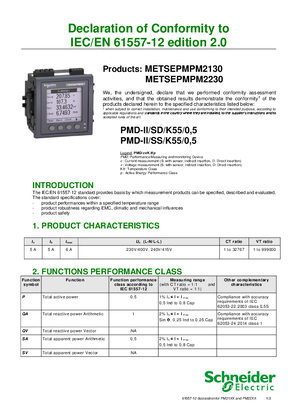

Declaration of Conformity to IEC61557-12 edition 2.0 for METSEPM2230
