EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, LCD display, RS485, class 1 - Image

Home ProductsIndustrialPM2000 seriesPower & Energy meter

PM2000 series Power & Energy meter up to the 15th harmonic, LCD display, RS485, class 1

Item Number: METSEPM2220

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width96 mm

Height96 mm

Depth<ul><li>total : 76.09 mm</li><li>embedded : 61.64 mm</li></ul>

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480800177	-

Specifications

Design

Range	EasyLogic
Product or component type	power meter
Device application	power monitoring sub billing

Physical

[in] rated current	1 A 5 A
Control type	4 x button
Local signalling	red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) green LED: module operation and integrated communication
Communication port protocol	Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
Function available	real time clock

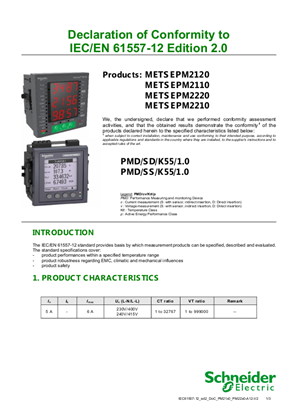

Product certifications	CE conforming to IEC 61010-1 cULus conforming to UL 61010-1 cULus conforming to CSA C22.2 No 61010-1 RCM EAC C-Tick
Mounting mode	clip-on
Mounting position	vertical
Mounting support	framework
Provided equipment	1 x installation guide
Electrical insulation class	double insulation class II
Connections - terminals	current transformer: screw connection (bottom) 6 voltage inputs: screw connection (top) 4
Width	96 mm
Depth	total : 76.09 mm embedded : 61.64 mm
Height	96 mm
Net weight	300 g
Ip degree of protection	IP54 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
Relative humidity	5...95 % at 50 °C
Ambient air temperature for operation	-10...60 °C
Ambient air temperature for storage	-25...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1510004EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	polycarbonate

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	18
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Package 3 bare product quantity	144
Average percentage of recycled plastic content	0 %
	At least in Europe
Product name	EasyLogic PM2200
Device short name	PM2220
Power quality analysis	total harmonic distortion up to the 15th harmonic
Type of measurement	apparent power min/max, total active and reactive power min/max, total current min/max, avg voltage min/max, avg frequency min/max, avg total current harmonic distortion THD (I) per phase total voltage harmonic distortion THD (U) per phase power factor min/max, avg apparent energy total active and reactive energy total
Metering type	active, reactive, apparent energy (signed, four quadrant) current I, I1, I2, I3 peak demand currents peak demand power PM, QM, SM unbalance current active power P, P1, P2, P3 reactive power Q, Q1, Q2, Q3 demand power P, Q, S voltage U, U21, U32, U13, V, V1, V2, V3 apparent power S, S1, S2, S3 calculated neutral current
Accuracy class	class 1 active energy conforming to IEC 62053-21 class 1 reactive energy conforming to IEC 62053-24 class 5 harmonic distortion (I THD & U THD)
Measurement accuracy	apparent power +/- 1 % active energy +/- 1 % reactive energy +/- 1 % active power +/- 1 % voltage +/- 0.5 % power factor +/- 0.01 current +/- 0.5 % frequency +/- 0.05 %
Measurement current	5...6000 mA
Measurement voltage	35...480 V AC 50/60 Hz between phases 20...277 V AC 50/60 Hz between phase and neutral 480...999000 V AC 50/60 Hz with external VT
Frequency measurement range	45...65 Hz
[us] rated supply voltage	44...277 V AC 45...65 Hz +/- 10 % 44...277 V DC +/- 10 %
Network frequency	50 Hz 60 Hz
Ride-through time	100 ms 120 V AC typical 400 ms 230 V AC typical 50 ms 125 V DC typical
Maximum power consumption in va	6 VA at 277 V AC
Maximum power consumption in w	3.3 W (power lines (AC)) 2 W at 277 V (power lines (DC))
Analogue input type	current (impedance <= 0.3 mOhm) voltage (impedance > 5 MOhm)
Tamperproof of settings	protected by access code
Display type	backlit LCD
Display colour	monochrome
Display resolution	128 x 128 pixels
Refresh time	configurable from 1 to 60 min
Information displayed	demand current (past value) demand current (present value) demand power (past value) demand power (present value) voltage current frequency energy consumption harmonic distortion power factor active power apparent power reactive power unbalanced in % harmonic amplitude
Number of inputs	0
Number of outputs	0
Communication port support	screw terminal block: RS485
Data recording	time stamping min/max for 8 parameters
Sampling rate	64 samples/cycle
Cybersecurity	enable/disable communication ports
Communication service	remote monitoring
User language	Spanish French English Russian Portuguese German Chinese
Measurement category	category III 480-480 V category II 480-600 V
Flame retardance	V-0 conforming to UL 94
Compatibility code	PM2220
Service life	7 year(s)
Pollution degree	2
Operating altitude	<= 2000 m
Electromagnetic compatibility	electrostatic discharge conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 electrical fast transient/burst immunity test conforming to IEC 61000-4-4 surge immunity test conforming to IEC 61000-4-5 conducted RF disturbances conforming to IEC 61000-4-6 magnetic field at power frequency conforming to IEC 61000-4-8 voltage dips and interruptions immunity test conforming to IEC 61000-4-11 emission tests conforming to FCC part 15 class A
Overvoltage category	III
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.800 cm
Package 1 width	8.800 cm
Package 1 length	12.000 cm
Package 1 weight	356.000 g
Unit type of package 2	S03
Number of units in package 2	18
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	7.012 kg
Unit type of package 3	P06
Number of units in package 3	144
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	78.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	129 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	11.469745047433399
Carbon footprint of the manufacturing phase [a1 to a3]	11 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.890033360398359
Carbon footprint of the distribution phase [a4]	2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.03774647548545719
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	115.1788985041515
Carbon footprint of the use phase [b2, b3, b4, b6]	115 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6773501992981074
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	129.2537735867668
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	6599793e-9401-4187-a617-35919522fe23
End of life manual availability	ENVEOLI1510004_V2
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
