PM2000 series PM2X30 I/O Module Digital, 2 Inputs + 2 outputs

Home ProductsIndustrialPM2000 seriesPM2X30 I/O Module

PM2000 series PM2X30 I/O Module Digital, 2 Inputs + 2 outputs

Item Number: METSEPM2KDGTLIO22

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width90.5 mm

Height icon

Height53 mm

Depth icon

Depth14.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EasyLogic

Product or component type

I/O module

Device application

optional expansion module

Physical

Range compatibility

  • EasyLogic EasyLogic PM2100 PM2130
  • EasyLogic EasyLogic PM2200 PM2230

Width

90.5 mm

Depth

14.6 mm

Height

53 mm

Net weight

50 g

Ambient air temperature for operation

-10...60 °C

Ambient air temperature for storage

-25...70 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1510005

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

60

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Average percentage of recycled plastic content

0 %

Device short name

PM2K2DIDO

Switching frequency

2 Hz digital input

[ui] rated insulation voltage

2500 V

Number of outputs

2 configurable, <= 20 mA

Output voltage

40 V DC

Input impedance

110 kOhm

Number of inputs

2

Output impedance

50 Ohm

Voltage state 0 guaranteed

0...4 V DC

Voltage state 1 guaranteed

18.5...36 V DC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5 cm

Package 1 width

8 cm

Package 1 length

9.5 cm

Package 1 weight

104 g

Unit type of package 2

S03

Number of units in package 2

60

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

6.98 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

a7ebbabc-caf1-4cb4-a60a-4e5e23907d1f

End of life manual availability

ENVEOLI1510005

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Other technical guide

  • Installation Instruction

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
EAV6663001 asm
ZIP

EAV6663001 asm

VERSION

1.0

DATE

21 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 10.6 MB
Range Product description - 3D CAD
ZIP

Range Product description - 3D CAD

VERSION

1.0

DATE

21 Apr 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
EasyLogic PM2X30 - I/O Module - Digital - 2 Inputs + 2 outputs - 3D CAD
ZIP

EasyLogic PM2X30 - I/O Module - Digital - 2 Inputs + 2 outputs - 3D CAD

VERSION

1.0

DATE

21 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 8.1 MB
EasyLogic Power Metering Panorama - Web Version
ZIP

EasyLogic Power Metering Panorama - Web Version

VERSION

3.2

DATE

21 Aug 2022

REVISION

3.2

DOWNLOAD (ZIP) 1.7 MB
EasyLogic™ Power metering range catalog
ZIP

EasyLogic™ Power metering range catalog

VERSION

2.5

DATE

07 Nov 2022

REVISION

2.5

DOWNLOAD (ZIP) 20.2 MB

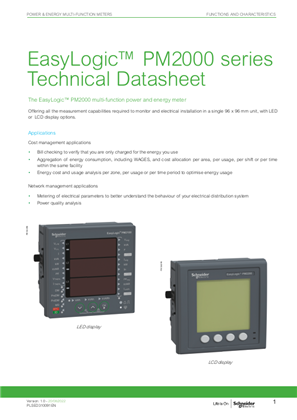

EasyLogic PM2000 Series Technical Datasheet
ZIP

EasyLogic PM2000 Series Technical Datasheet

VERSION

3.7

DATE

20 Aug 2022

REVISION

3.7

DOWNLOAD (ZIP) 4.3 MB

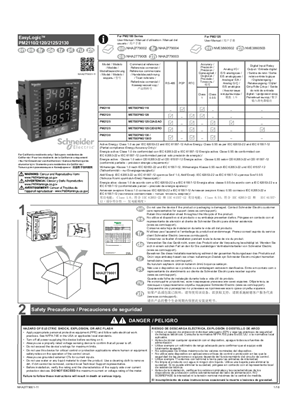

EasyLogic™ PM2110/2120/2125/2130
ZIP

EasyLogic™ PM2110/2120/2125/2130

VERSION

9.0

DATE

25 Jul 2024

REVISION

9.0

DOWNLOAD (ZIP) 10.3 MB

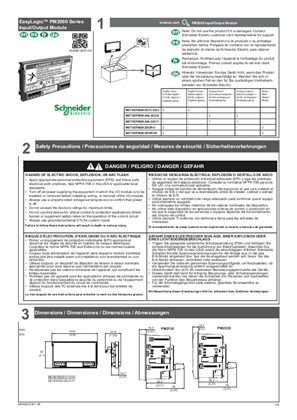

EasyLogic™ PM2000 Series Input/Output Module
ZIP

EasyLogic™ PM2000 Series Input/Output Module

VERSION

3.0

DATE

17 Dec 2021

REVISION

3.0

DOWNLOAD (ZIP) 4.8 MB

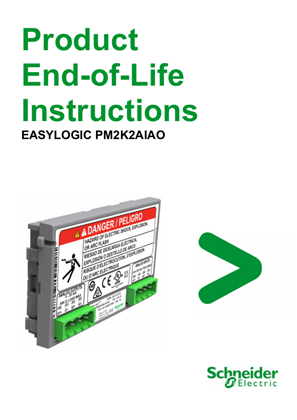

EASYLOGIC PM2K2AIAO, Circularity Profile, End of Life Instructions
ZIP

EASYLOGIC PM2K2AIAO, Circularity Profile, End of Life Instructions

VERSION

1.0

DATE

12 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 352.9 KB
EasyLogic PM2000, Environmental Disclosure, Product Environmental Profile
ZIP

EasyLogic PM2000, Environmental Disclosure, Product Environmental Profile

VERSION

1.0

DATE

09 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 389.3 KB

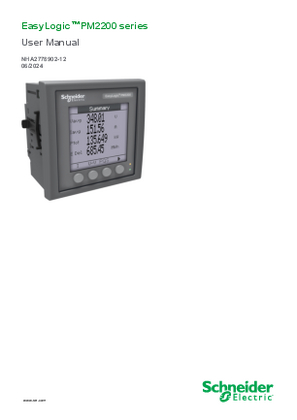

EasyLogic™ PM2200 series User Manual
ZIP

EasyLogic™ PM2200 series User Manual

VERSION

16.0

DATE

05 Feb 2025

REVISION

16.0

DOWNLOAD (ZIP) 1.8 MB

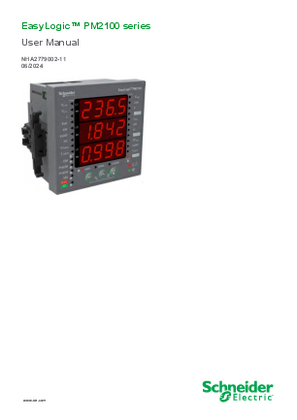

EasyLogic™ PM2100 series User Manual
ZIP

EasyLogic™ PM2100 series User Manual

VERSION

12.0

DATE

15 Jan 2025

REVISION

12.0

DOWNLOAD (ZIP) 1.9 MB
EasyLogic™ PM2200R series User Manual
ZIP

EasyLogic™ PM2200R series User Manual

VERSION

3.0

DATE

29 Sep 2023

REVISION

3.0

DOWNLOAD (ZIP) 3 MB

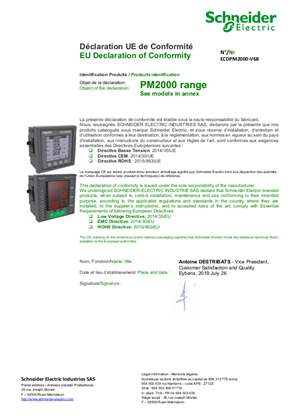

EasyLogic PM2000 - Declaration of Conformity
ZIP

EasyLogic PM2000 - Declaration of Conformity

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 166.1 KB

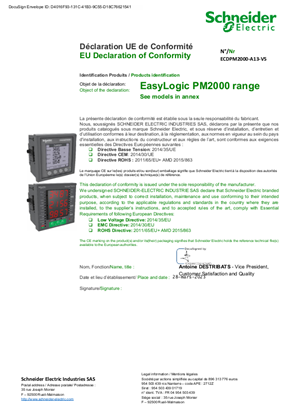

EU Declaration of Conformity
ZIP

EU Declaration of Conformity

VERSION

1.0

DATE

05 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 461.2 KB

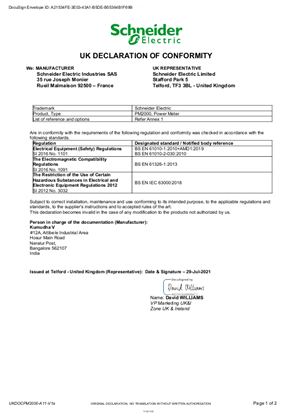

UK DECLARATION OF CONFORMITY PM2000
