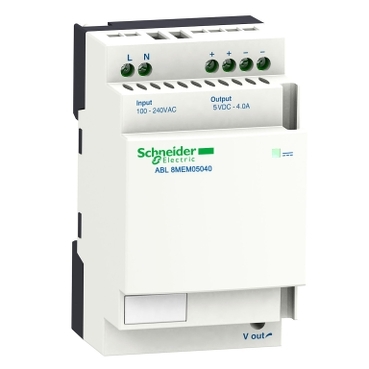

Phaseo ABL7 ABL8 Regulated Switch Power Supply 1 or 2 phase, 100..240V AC, 5V, 4 A

Item Number: ABL8MEM05040

1 PCE 0

Where To Buy

Datasheet

Download

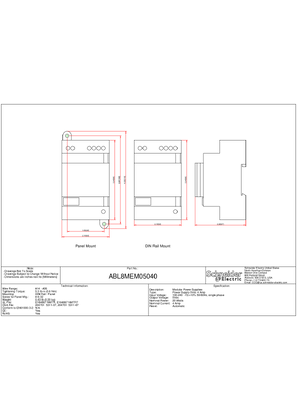

Product Dimensions

Width54 mm

Height100 mm

Depth59 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389119405539	-

Specifications

Design

Range of product	Modicon Power Supply
Product or component type	power supply
Warranty	18 months

Physical

Rated power in w	20 W
Inrush current	20 A
Connections - terminals	screw type terminals: 2 x 0.14...2 x 2.5 mm², (26 AWG...14 AWG) for input connection screw type terminals: 4 x 0.14...4 x 2.5 mm², (26 AWG...14 AWG) for output connection
Depth	59 mm
Height	100 mm
Width	54 mm
Net weight	0.195 kg
Marking	CE
Mounting support	35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail panel 2 screws, diameter : 4 mm
Supply	SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41
Standards	CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1
Product certifications	EAC TUV 60950-1 RCM KC cCSAus CSA 22-2 No 950 cULus 508
Environmental characteristic	EMC conforming to EN 55022 class B EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 EMC conforming to EN/IEC 61204-3 safety conforming to IEC 60950-1
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-25...55 °C without derating mounting position A < 2000 m 55...70 °C with derating factor mounting position A < 2000 m
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1302006EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	56
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Power supply type	regulated switch mode
Input voltage	100...240 V AC phase to phase, terminal(s): L1-L2 100...240 V AC single phase, terminal(s): N-L1 120...250 V DC
Output voltage	5 V DC
Power supply output current	4 A
Input voltage limits	85...264 V AC
Input protection type	integrated fuse (not interchangeable)
Power factor	0.5 at 5 V DC
Efficiency	75 %
Output voltage limits	4.75...6.25 V adjustable
Power dissipation in w	6.7 W
Current consumption	0.35 A 240 V AC 0.55 A 100 V AC
Residual ripple	250 mV
Output protection type	against short-circuits
Status led	1 LED (green) output voltage
Output coupling	parallel series
Operating position	vertical
Dielectric strength	3000 V with between input and output
Operating altitude	2000 m
Compatibility code	ABL8M
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.7 cm
Package 1 width	7.3 cm
Package 1 length	10 cm
Package 1 weight	231 g
Unit type of package 2	S03
Number of units in package 2	56
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	13.574 kg
Sustainable packaging	No
Pvc free	Yes
Scip number	fe64e454-324e-4d95-961c-5ccceb461cf0
Pvc free	Yes
End of life manual availability	ENVEOLI130205EN
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
