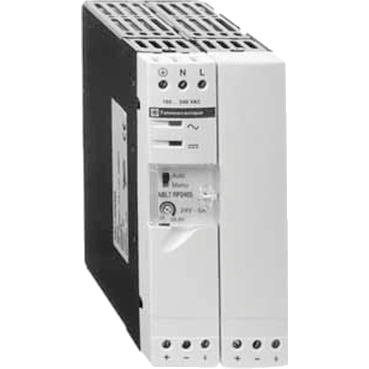

Phaseo ABL7 ABL8 Regulated Switch Power Supply 1 or 2 phase, 100.240V AC 48V, 2.5A

Item Number: ABL7RP4803

1 PCE 0

Where To Buy

Datasheet

Download

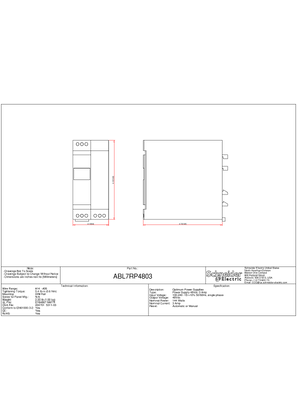

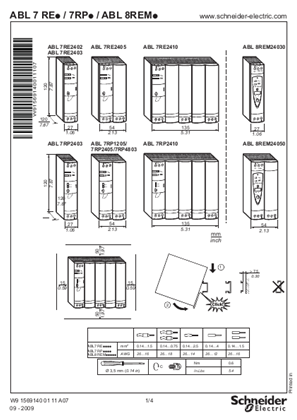

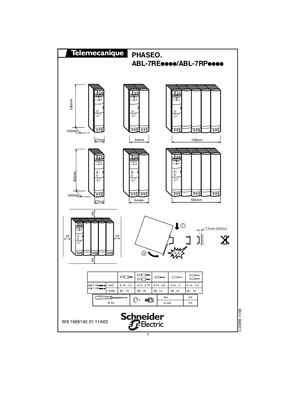

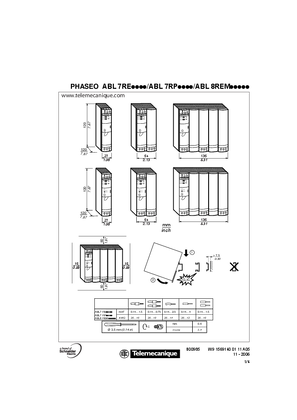

Product Dimensions

Width54 mm

Height120 mm

Depth120 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110178029	-

Specifications

Design

Range of product	Modicon Power Supply
Product or component type	power supply
Warranty	18 months

Physical

Rated power in w	120 W
Inrush current	30 A
Connections - terminals	screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection screw type terminals: 1 x 0.14...1 x 2.5 mm², (AWG 26...AWG 14) for input ground connection screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for output ground connection
Depth	120 mm
Height	120 mm
Width	54 mm
Net weight	1 kg
Marking	CE
Mounting support	75 x 7.5 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail
Supply	SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41
Standards	UL 508 CSA C22.2 No 60950-1 EN/IEC 62368-1
Product certifications	CSA 22-2 No 950 EAC RCM KC UL 508 TÜV
Environmental characteristic	EMC conforming to EN 50081-1 EMC conforming to EN 50082-2 EMC conforming to IEC 61000-6-2 safety conforming to EN/IEC 60950 safety conforming to IEC 61496-1-2
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	0...50 °C without derating mounting position A < 2000 m 50...60 °C with derating factor mounting position A < 2000 m
Mercury free	Yes
Rohs exemption information	Yes
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty duration(in months) bmecat	18
	At least in Europe
Package 1 bare product quantity	1
Power supply type	regulated switch mode
Input voltage	100...240 V AC phase to phase, terminal(s): L1-L2 100...240 V AC single phase, terminal(s): N-L1 110...220 V DC
Output voltage	48 V DC
Power supply output current	2.5 A
Input voltage limits	85...264 V AC 100...250 V AC
Input protection type	integrated fuse (not interchangeable)
Power factor	0.98 at 48 V DC
Efficiency	85 %
Output voltage limits	100...120 % adjustable
Power dissipation in w	25.4 W
Current consumption	1 A 100 V AC 0.6 A 240 V AC
Output protection type	against overload, protection technology: 1.1 x In against overvoltage, protection technology: tripping if U > 1.5 x Un against short-circuits, protection technology: manual or automatic reset against undervoltage, protection technology: tripping if U < 0.8 x Un
Status led	1 LED (green) output voltage 1 LED (orange) input voltage
Output coupling	series parallel
Operating position	vertical
Dielectric strength	3000 V with between input and ground 3000 V with between input and output 500 V with between output and ground 500 V with between outputs
Operating altitude	2000 m
Compatibility code	ABL7R
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.5 cm
Package 1 width	13.3 cm
Package 1 length	14.5 cm
Package 1 weight	1.076 kg
Sustainable packaging	No
Pvc free	Yes
Scip number	fe64e454-324e-4d95-961c-5ccceb461cf0
China rohs label	5
Pvc free	Yes
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
