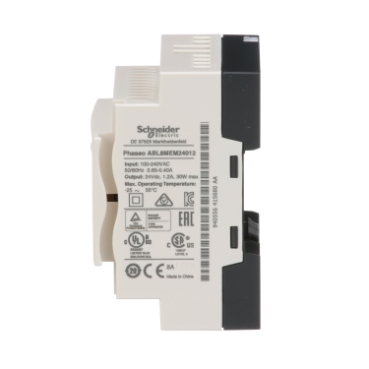

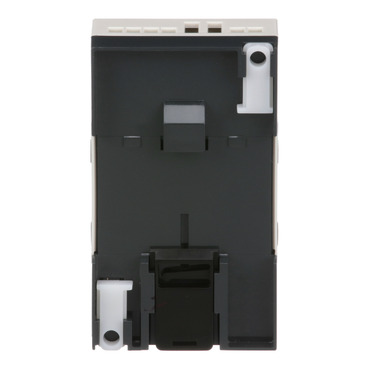

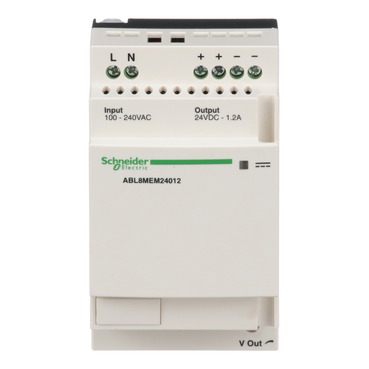

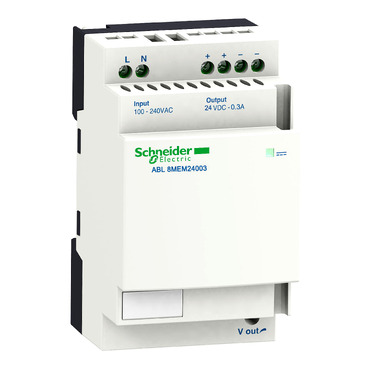

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V AC, 24V, 1.2A

Home ProductsIndustrialPhaseo ABL7 ABL8Regulated Switch Power Supply, 1 or 2 phase, 100..240V AC, 24V, 1.2A

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V AC, 24V, 1.2A

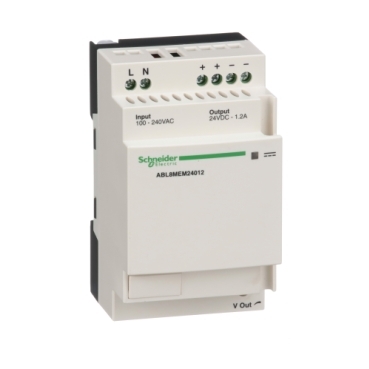

Item Number: ABL8MEM24012

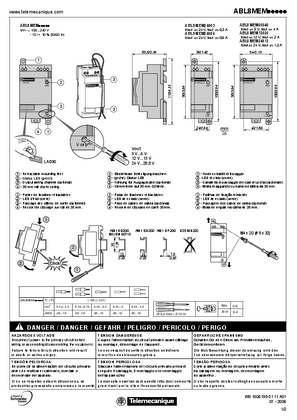

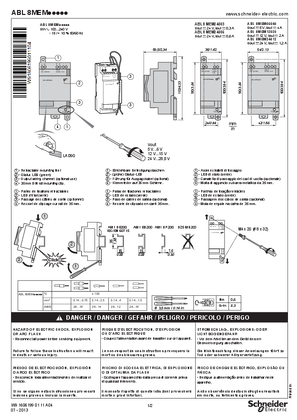

Datasheet

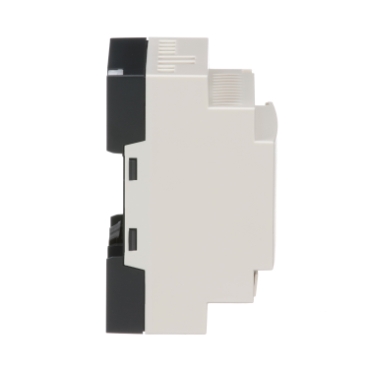

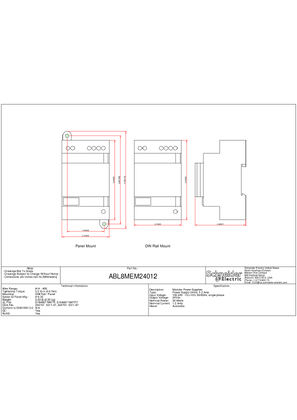

Product Dimensions

Width icon

Width54 mm

Height icon

Height100 mm

Depth icon

Depth59 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Rated power in w

30 W

Inrush current

20 A

Connections - terminals

screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection|screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection

Depth

59 mm

Height

100 mm

Width

54 mm

Net weight

0.195 kg

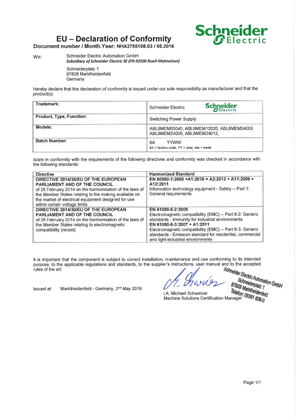

Marking

CE

Mounting support

35 x 7.5 mm symmetrical DIN rail| panel 2 screws, diameter : 4 mm| 35 x 15 mm symmetrical DIN rail

Supply

SELV conforming to EN/IEC 60950-1|SELV conforming to EN/IEC 60204-1|SELV conforming to IEC 60364-4-41

Standards

UL 508|CSA C22.2 No 60950-1|EN/IEC 62368-1

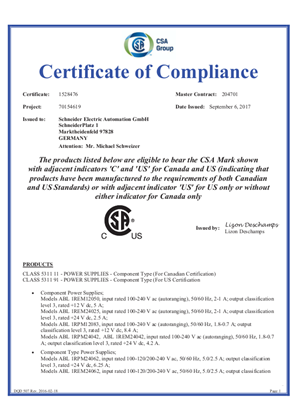

Product certifications

TUV 60950-1|EAC|RCM|KC|cCSAus|CSA 22-2 No 950|cULus 508

Environmental characteristic

EMC conforming to EN 55022 class B|EMC conforming to EN 61000-6-3|EMC conforming to EN/IEC 61000-6-2|EMC conforming to EN/IEC 61204-3|safety conforming to EN/IEC 60950-1

Ip degree of protection

IP20 conforming to EN/IEC 60529

Ambient air temperature for operation

-25...55 °C without derating mounting position A < 2000 m|55...70 °C with derating factor mounting position A < 2000 m

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP130206EN

Circularity profile

ENVEOLI130205EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Power supply type

regulated switch mode

Input voltage

100...240 V AC phase to phase, terminal(s): L1-L2|100...240 V AC single phase, terminal(s): N-L1|120...250 V DC

Output voltage

24 V DC

Power supply output current

1.2 A

Input voltage limits

85...264 V AC

Input protection type

integrated fuse (not interchangeable)

Power factor

0.5 at 24 V DC

Efficiency

82 %

Output voltage limits

22.2...28.8 V adjustable

Power dissipation in w

6.6 W

Current consumption

0.4 A 240 V AC|0.65 A 100 V AC

Residual ripple

250 mV

Output protection type

against short-circuits

Status led

1 LED (green) output voltage

Output coupling

parallel|series

Operating position

vertical

Dielectric strength

3000 V with between input and output

Operating altitude

2000 m

Compatibility code

ABL8M

Unit type of package 1

PCE

Number of units in package 1

1

Pvc free

Yes
Show all specifications
