Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V AC, 24V, 0.3A

Home ProductsIndustrialPhaseo ABL7 ABL8Regulated Switch Power Supply

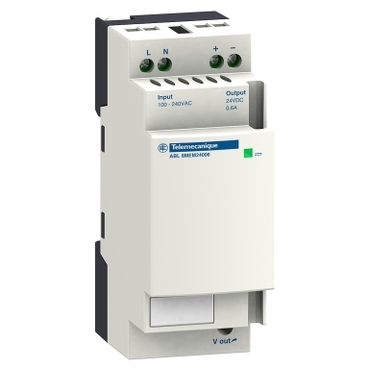

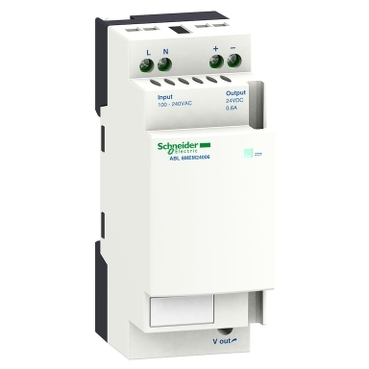

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 1 or 2 phase, 100..240V AC, 24V, 0.3A

Item Number: ABL8MEM24003

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width36 mm

Height icon

Height100 mm

Depth icon

Depth59 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Rated power in w

7 W

Inrush current

20 A

Connections - terminals

screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection|screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for output connection

Depth

59 mm

Height

100 mm

Width

36 mm

Net weight

0.1 kg

Marking

CE

Mounting support

35 x 7.5 mm symmetrical DIN rail| panel 2 screws, diameter : 4 mm| 35 x 15 mm symmetrical DIN rail

Supply

SELV conforming to EN/IEC 60950-1|SELV conforming to EN/IEC 60204-1|SELV conforming to IEC 60364-4-41

Standards

UL 508|CSA C22.2 No 60950-1|EN/IEC 62368-1

Product certifications

KC|TUV 60950-1|RCM|EAC|cCSAus|CSA 22-2 No 950|cULus 508

Environmental characteristic

EMC conforming to EN 55022 class B|EMC conforming to EN 61000-6-3|EMC conforming to EN/IEC 61000-6-2|EMC conforming to EN/IEC 61204-3|safety conforming to EN/IEC 60950-1

Ip degree of protection

IP20 conforming to EN/IEC 60529

Ambient air temperature for operation

-25...55 °C without derating mounting position A < 2000 m|55...70 °C with derating factor mounting position A < 2000 m

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP130206EN

Circularity profile

ENVEOLI130205EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Power supply type

regulated switch mode

Input voltage

100...240 V AC phase to phase, terminal(s): L1-L2|100...240 V AC single phase, terminal(s): N-L1|120...250 V DC

Output voltage

24 V DC

Power supply output current

0.3 A

Input voltage limits

85...264 V AC

Input protection type

integrated fuse (not interchangeable)

Power factor

0.5 at 24 V DC

Efficiency

78 %

Output voltage limits

22.2...28.8 V adjustable

Power dissipation in w

2 W

Current consumption

0.18 A 240 V AC|0.25 A 100 V AC

Residual ripple

250 mV

Output protection type

thermal|against short-circuits

Status led

1 LED (green) output voltage

Output coupling

parallel|series

Operating position

vertical

Dielectric strength

3000 V with between input and output

Operating altitude

2000 m

Compatibility code

ABL8M

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5 cm

Package 1 width

7.4 cm

Package 1 length

10 cm

Package 1 weight

134 g

Pvc free

Yes
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Technical Drawing

  • Certificates (MSDS)

  • eTechPub

  • Declaration of Conformity

ABL8MEM24003_CAD_DOC
ZIP

ABL8MEM24003_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 181.1 KB
Modular Power Supply 7 & 15W
ZIP

Modular Power Supply 7 & 15W

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 91.4 KB
Modular Power Supply 7 & 15W
ZIP

Modular Power Supply 7 & 15W

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 103 KB
Modular Power Supply 7 & 15W
ZIP

Modular Power Supply 7 & 15W

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 253.6 KB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.0

DATE

10 Jul 2023

REVISION

5.0

DOWNLOAD (ZIP) 6.4 MB
ABL8MEM Installation Instructions
ZIP

ABL8MEM Installation Instructions

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 537.1 KB
ABL8MEM...Regulated swich mode power supplies Phaseo Modular
ZIP

ABL8MEM...Regulated swich mode power supplies Phaseo Modular

VERSION

3.0

DATE

18 Aug 2023

REVISION

3.0

DOWNLOAD (ZIP) 297.2 KB
ABL8 MEM.... Regulated switch mode power supply, Product Environmental Profile
ZIP

ABL8 MEM.... Regulated switch mode power supply, Product Environmental Profile

VERSION

2.0

DATE

09 Jun 2023

REVISION

2.0

DOWNLOAD (ZIP) 2.4 MB
ABL8MEM.... Regulated switch mode power supply, Product End-of-Life Instructions
ZIP

ABL8MEM.... Regulated switch mode power supply, Product End-of-Life Instructions

VERSION

2.0

DATE

05 Oct 2022

REVISION

2.0

DOWNLOAD (ZIP) 2.3 MB

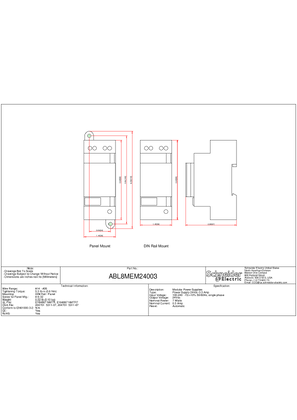

ABL8MEM24003_2D_Drwng_PDF
ZIP

ABL8MEM24003_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 12.8 KB
Phaseo, ABL8, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 190.9 KB

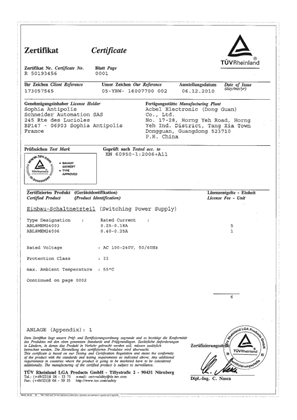

TUV_Certificate_ABL8MEM24003_ABL8MEM24006
