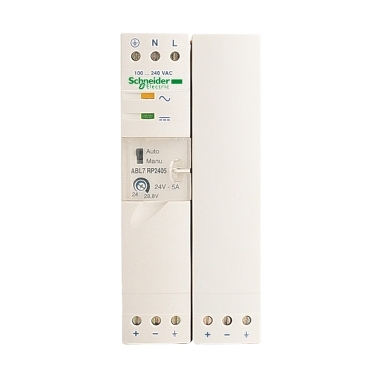

Phaseo ABL7 ABL8 Regulated Switch Power Supply 1 or 2 phase, 100.240V AC 12V, 5A

Home ProductsIndustrialPhaseo ABL7 ABL8Regulated Switch Power Supply

Phaseo ABL7 ABL8 Regulated Switch Power Supply 1 or 2 phase, 100.240V AC 12V, 5A

Item Number: ABL7RP1205

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width54 mm

Height icon

Height120 mm

Depth icon

Depth120 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Warranty

18 months

Physical

Rated power in w

60 W

Inrush current

30 A

Connections - terminals

  • screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection
  • screw type terminals: 1 x 0.14...1 x 2.5 mm², (AWG 26...AWG 14) for input ground connection
  • screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for output connection
  • screw type terminals: 1 x 0.14...1 x 2.5 mm², (AWG 26...AWG 14) for output ground connection

Depth

120 mm

Height

120 mm

Width

54 mm

Net weight

1 kg

Marking

CE

Mounting support

  • 75 x 7.5 mm symmetrical DIN rail
  • 35 x 15 mm symmetrical DIN rail
  • 35 x 7.5 mm symmetrical DIN rail

Supply

  • SELV conforming to IEC 60950-1
  • SELV conforming to IEC 60204-1
  • SELV conforming to IEC 60364-4-41

Standards

  • CSA C22.2 No 60950-1
  • UL 508
  • EN/IEC 62368-1

Product certifications

  • CSA 22-2 No 950
  • EAC
  • cULus 508
  • RCM
  • KC
  • TÜV

Environmental characteristic

  • EMC conforming to EN 50081-1
  • EMC conforming to EN 50082-2
  • EMC conforming to IEC 61000-6-2
  • safety conforming to EN/IEC 60950
  • safety conforming to IEC 61496-1-2

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

  • 0...50 °C without derating mounting position A < 2000 m
  • 50...60 °C with derating factor mounting position A < 2000 m

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

At least in Europe

Package 1 bare product quantity

1

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Power supply type

regulated switch mode

Input voltage

  • 100...240 V AC phase to phase, terminal(s): L1-L2
  • 100...240 V AC single phase, terminal(s): N-L1
  • 110...220 V DC

Output voltage

12 V DC

Power supply output current

5 A

Input voltage limits

  • 100...250 V AC
  • 85...264 V AC

Input protection type

integrated fuse (not interchangeable)

Power factor

0.98 at 12 V DC

Efficiency

85 %

Output voltage limits

100...120 % adjustable

Power dissipation in w

10.6 W

Current consumption

  • 0.4 A 240 V AC
  • 0.8 A 100 V AC

Output protection type

  • against overload, protection technology: 1.1 x In
  • against overvoltage, protection technology: tripping if U > 1.5 x Un
  • against short-circuits, protection technology: manual or automatic reset
  • against undervoltage, protection technology: tripping if U < 0.8 x Un

Status led

  • 1 LED (green) output voltage
  • 1 LED (orange) input voltage

Output coupling

  • parallel
  • series

Operating position

vertical

Dielectric strength

  • 3000 V with between input and ground
  • 3000 V with between input and output
  • 500 V with between output and ground
  • 500 V with between outputs

Operating altitude

2000 m

Compatibility code

ABL7R

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.5 cm

Package 1 width

13.3 cm

Package 1 length

14.5 cm

Package 1 weight

1.073 kg

Sustainable packaging

No

Pvc free

Yes

Scip number

fe64e454-324e-4d95-961c-5ccceb461cf0

Pvc free

Yes

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
ABL7RP1205_CAD_DOC
ZIP

ABL7RP1205_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 977.1 KB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB
Phaseo ABL7RE and ABL7RP Power Supplies Installation Instructions
ZIP

Phaseo ABL7RE and ABL7RP Power Supplies Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 365.9 KB
Instruction Sheet ABL8REM, ABL7RE, and ABL7RP
ZIP

Instruction Sheet ABL8REM, ABL7RE, and ABL7RP

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 699.4 KB
ABL8REM/7RE... /7RP... Regulated switch mode power supplies, Phaseo Optimum (EN)
ZIP

ABL8REM/7RE... /7RP... Regulated switch mode power supplies, Phaseo Optimum (EN)

VERSION

7.0

DATE

18 Aug 2023

REVISION

7.0

DOWNLOAD (ZIP) 225.2 KB
ABL7RP4803 Regulated switch mode power supply, Product End-of-Life Instructions
ZIP

ABL7RP4803 Regulated switch mode power supply, Product End-of-Life Instructions

VERSION

1.0

DATE

05 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 464 KB

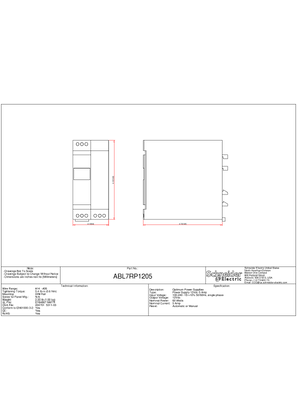

ABL7RP1205_2D_Drwng_PDF
