Phaseo ABL7 ABL8 Regulated Switch Power Supply 1 or 2 phase, 100..240V, 24V, 20A

Home ProductsIndustrialPhaseo ABL7 ABL8Regulated Switch Power Supply

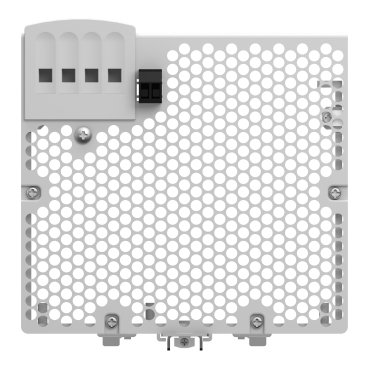

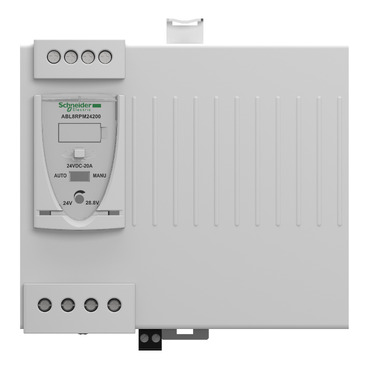

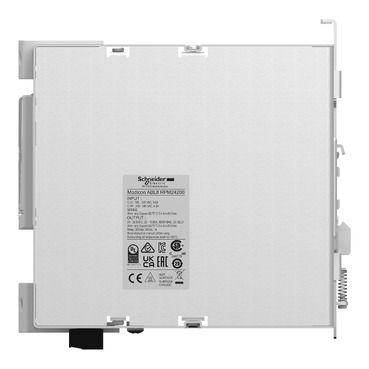

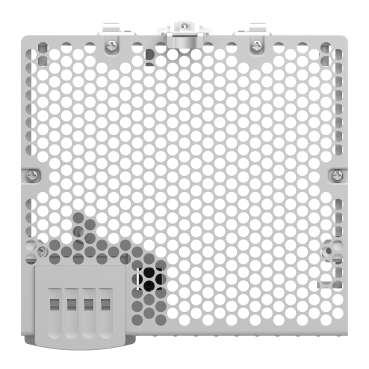

Phaseo ABL7 ABL8 Regulated Switch Power Supply 1 or 2 phase, 100..240V, 24V, 20A

Item Number: ABL8RPM24200

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width146 mm

Height icon

Height125 mm

Depth icon

Depth145 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Warranty

18 months

Physical

Rated power in w

480 W

Inrush current

30 A

Provided equipment

power factor correction filter conforming to IEC 61000-3-2

Connections - terminals

  • removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
  • screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection
  • screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection
  • screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection

Depth

145 mm

Height

125 mm

Width

146 mm

Net weight

1.6 kg

Marking

CE

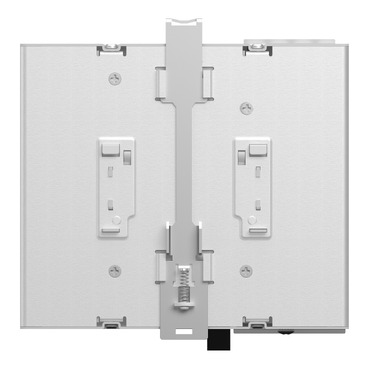

Mounting support

  • 35 x 7.5 mm symmetrical DIN rail
  • 35 x 15 mm symmetrical DIN rail

Supply

  • SELV conforming to IEC 60950-1
  • SELV conforming to IEC 60204-1
  • SELV conforming to IEC 60364-4-41

Standards

  • CSA C22.2 No 60950-1
  • UL 508
  • EN/IEC 62368-1

Product certifications

  • cCSAus
  • EAC
  • KC
  • RCM
  • UL

Environmental characteristic

  • EMC conforming to IEC 61000-6-1
  • EMC conforming to IEC 61000-6-3
  • EMC conforming to EN 55024
  • EMC conforming to IEC 61000-6-4
  • EMC conforming to EN/IEC 61204-3
  • safety conforming to IEC 60950-1
  • safety conforming to EN/IEC 61204-3

Ip degree of protection

  • IP20 conforming to IEC 60529
  • IP10

Ambient air temperature for operation

  • 50...60 °C with derating factor mounting position A < 2000 m
  • -25...50 °C without derating mounting position A < 2000 m

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP061202EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

36

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Power supply type

regulated switch mode

Input voltage

  • 100...120 V AC single phase, terminal(s): N-L1
  • 200...240 V AC phase to phase, terminal(s): L1-L2

Output voltage

24 V DC

Power supply output current

20 A

Permissible temporary current boost

1.5 x In (for 4 s)

Anti-harmonic filter

low frequency harmonic currents

Input voltage limits

  • 85...132 V AC
  • 170...264 V AC

Power factor

  • 0.68 at 240 V AC
  • 0.69 at 120 V AC

Efficiency

88 %

Output voltage limits

24...28.8 V adjustable

Power dissipation in w

57.6 W

Output protection type

  • against overload, protection technology: manual or automatic reset
  • against overvoltage, protection technology: 30...32 V, manual reset
  • against short-circuits, protection technology: manual or automatic reset
  • against undervoltage, protection technology: tripping if U < 21.6 V
  • thermal, protection technology: automatic reset

Status led

  • 1 LED (green and red) output voltage
  • 1 LED (green, red and orange) output current

Output coupling

  • series
  • parallel

Operating position

vertical

Dielectric strength

  • 2500 V with between input and ground
  • 3000 V with between input and output
  • 500 V with between output and ground

Operating altitude

2000 m

Compatibility code

ABL8R

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

20.000 cm

Package 1 width

18.500 cm

Package 1 length

19.500 cm

Package 1 weight

2.811 kg

Unit type of package 2

P06

Number of units in package 2

36

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

114.956 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

c433dc09-2f7b-4231-a331-94ae03569bc6

Pvc free

Yes

End of life manual availability

ENVEOLI0612002EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Universal Power Supply 20A
ZIP

Universal Power Supply 20A

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 8.7 MB
ABL8RPM24200_3D-simpl
ZIP

ABL8RPM24200_3D-simpl

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.9 MB
Universal Power Supply 20A
ZIP

Universal Power Supply 20A

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 7.7 MB
Universal Power Supply 20A
ZIP

Universal Power Supply 20A

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 7.9 MB
UNIV.POWER SUP.1P 24V 20A - 3D CAD
ZIP

UNIV.POWER SUP.1P 24V 20A - 3D CAD

VERSION

1.0

DATE

29 Jun 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB
ABL8RP.../WP...Regulated swich mode power supplies Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL8RP.../WP...Regulated swich mode power supplies Phaseo Universal, Instruction Sheet (EN)

VERSION

6.0

DATE

16 Aug 2025

REVISION

6.0

DOWNLOAD (ZIP) 1.8 MB
ABL8RPS, ABL8RPM, and ABL8WPS Universal Power Supply Installation Instructions
ZIP

ABL8RPS, ABL8RPM, and ABL8WPS Universal Power Supply Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 409.3 KB
ABL8RED24400 Instruction Sheet
ZIP

ABL8RED24400 Instruction Sheet

VERSION

1.0

DATE

11 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 420.2 KB
ABL8RPS24, ABL8RPM24200, and ABL8WPS24*00 Instruction Sheet
ZIP

ABL8RPS24, ABL8RPM24200, and ABL8WPS24*00 Instruction Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 409.3 KB
ABL8WPS..., ABL8RPM... Phaseo - Universall Power Supply, Product Environmental Profile
ZIP

ABL8WPS..., ABL8RPM... Phaseo - Universall Power Supply, Product Environmental Profile

VERSION

1.0

DATE

09 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 4.1 MB

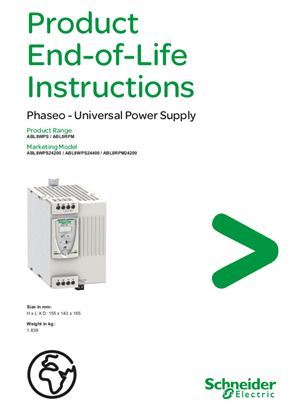

ABL8WPS..., ABL8RPM... Phaseo - Universall Power Supply, Product End-of-Life Instructions
ZIP

ABL8WPS..., ABL8RPM... Phaseo - Universall Power Supply, Product End-of-Life Instructions

VERSION

1.0

DATE

05 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 648.6 KB

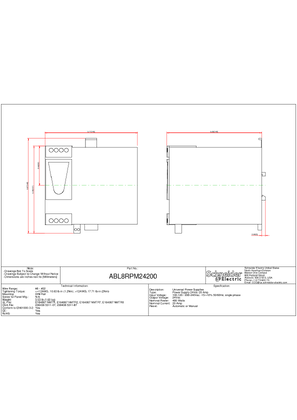

ABL8RPM24200_2D_Drwng_PDF
ZIP

ABL8RPM24200_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 21.6 KB
English
ZIP

English

VERSION

11.0

DATE

19 Nov 2024

REVISION

11.0

DOWNLOAD (ZIP) 2.4 MB

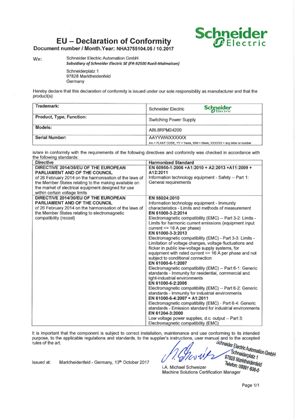

Phaseo DoC of ABL8RPM24200
ZIP

Phaseo DoC of ABL8RPM24200

VERSION

1.5

DATE

06 Oct 2022

REVISION

1.5

DOWNLOAD (ZIP) 470.7 KB
RCM_SupplierDeclarationOfConformity_Equinox_ABL8
ZIP

RCM_SupplierDeclarationOfConformity_Equinox_ABL8

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.8 MB
Phaseo, ABL8, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 189.5 KB

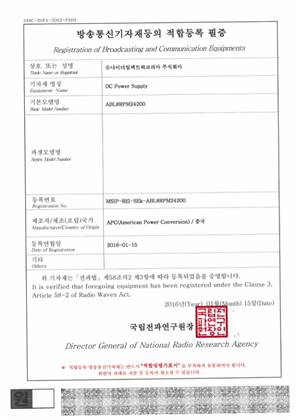

Phaseo KC Certificate ABL8RPM24200
ZIP

Phaseo KC Certificate ABL8RPM24200

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 383.4 KB

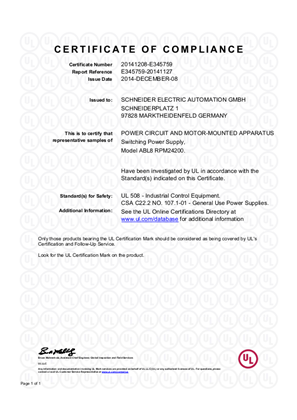

Phaseo, ABL8RPM24200, Certificate, cULus, Ordinary Location
