Phaseo ABL7 ABL8 Redundancy module 40A, Regulated SMPS

Home ProductsIndustrialPhaseo ABL7 ABL8Redundancy module

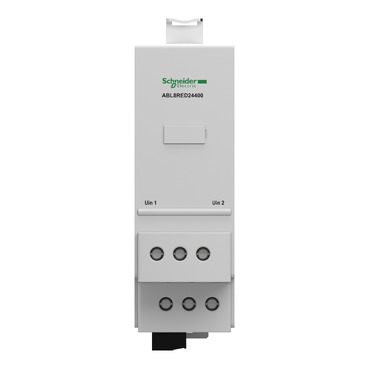

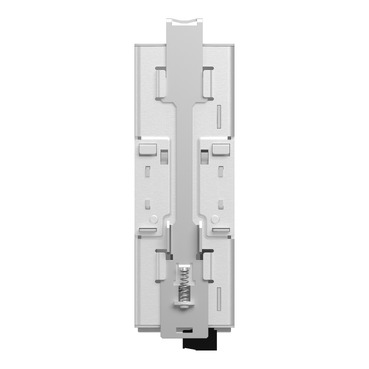

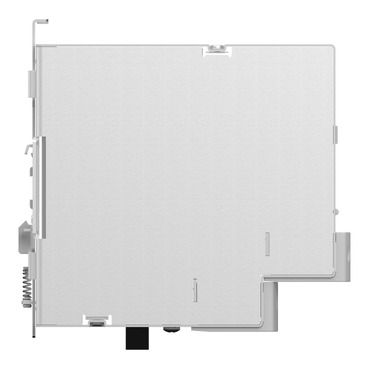

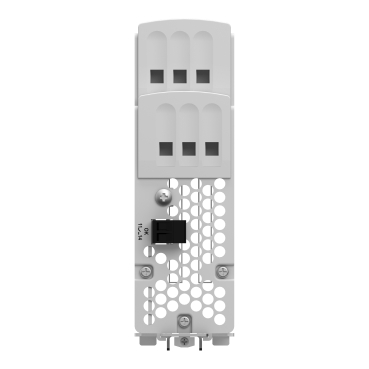

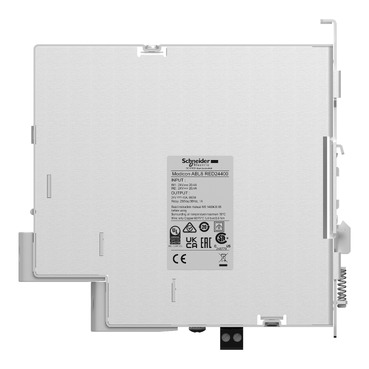

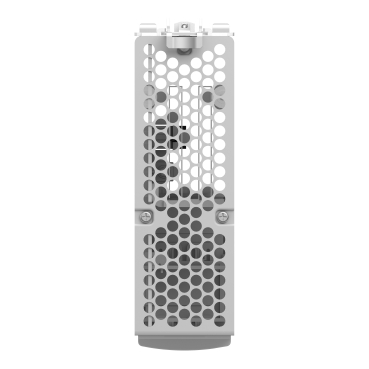

Phaseo ABL7 ABL8 Redundancy module 40A, Regulated SMPS

Item Number: ABL8RED24400

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Phaseo

Product or component type

redundancy module

Warranty

18 months

Physical

Connections - terminals

  • for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
  • for input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8
  • for diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14

Fixing mode

  • by clips on 35 mm symmetrical DIN rail, operating position: horizontal
  • by clips on 35 mm symmetrical DIN rail, operating position: vertical

Marking

CE

Local signalling

  • 1 LED per input (green) for power supply status
  • 1 relay for power supply status

Net weight

0.7 kg

Product certifications

  • EAC
  • RCM

Standards

  • CSA C22.2 No 60950-1
  • UL 508

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Environmental characteristic

  • EMC conforming to IEC 61000-6-3
  • EMC conforming to IEC 61000-6-2
  • safety conforming to IEC 60950-1
  • safety conforming to EN/IEC 61204

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

  • 0...90 % during operation
  • 0...95 % during storage

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP121208EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

80

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Input voltage

24...28.8 V DC

Output voltage

(Uin-0.2) V DC

Maximum output current

40 A

Input voltage limits

22...30 V

Input current

20 A

Number of output channels

1

Output protection type

  • against overload, protection technology: external protection by power supply
  • against short-circuits, protection technology: external protection by power supply

Output coupling

parallel

Operating altitude

2000 m

Name of test

  • electrostatic discharges conforming to IEC 61000-4-2
  • emission conforming to IEC 61000-6-3
  • induced electromagnetic field conforming to IEC 61000-4-6 level 3
  • radiated electromagnetic field conforming to IEC 61000-4-3 level 3
  • rapid transient conforming to IEC 61000-4-4 level 3
  • surge conforming to IEC 61000-4-5 level 2
  • conducted/radiated emissions conforming to EN 55022 class B
  • emission conforming to EN 50081-1

Compatibility code

ABL8R

Dielectric strength

  • 500 V between input and ground
  • 500 V between output and ground

Overvoltage category

class II conforming to VDE 0106-1

Mtbf reliability

2488391 H at 24 V DC with UTE C80-810 calculation method

Vibration resistance

  • 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
  • 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.000 cm

Package 1 width

16.800 cm

Package 1 length

16.600 cm

Package 1 weight

630.000 g

Unit type of package 2

S06

Number of units in package 2

80

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

65.160 kg

Sustainable packaging

No

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

a510c661-ab71-4b35-aa55-069b0716f9fc

Pvc free

Yes

End of life manual availability

ENVEOLI121208EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Redondancy module
ZIP

Redondancy module

VERSION

1.1

DATE

20 May 2024

REVISION

1.1

DOWNLOAD (ZIP) 3 MB
ABL8RED24400_3D-simpl
ZIP

ABL8RED24400_3D-simpl

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.2 MB
Redondancy module
ZIP

Redondancy module

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 2.4 MB
Redondancy module
ZIP

Redondancy module

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 2.3 MB
REDONDANCY MODULE 40A - 3D CAD
ZIP

REDONDANCY MODULE 40A - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB
ABL8TEQ24... Linear power supply, Product Environmental Profile
ZIP

ABL8TEQ24... Linear power supply, Product Environmental Profile

VERSION

2.0

DATE

17 Oct 2025

REVISION

2.0

DOWNLOAD (ZIP) 411.3 KB

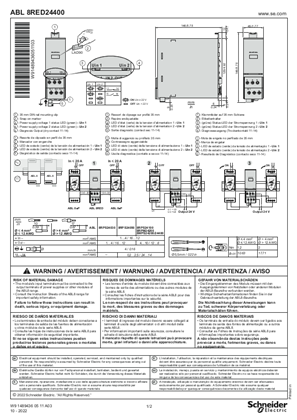

ABL8RED24400 Instruction Sheet
ZIP

ABL8RED24400 Instruction Sheet

VERSION

1.0

DATE

11 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 420.2 KB
ABL8RED...Redundancy module Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL8RED...Redundancy module Phaseo Universal, Instruction Sheet (EN)

VERSION

3.0

DATE

18 Aug 2023

REVISION

3.0

DOWNLOAD (ZIP) 1.1 MB

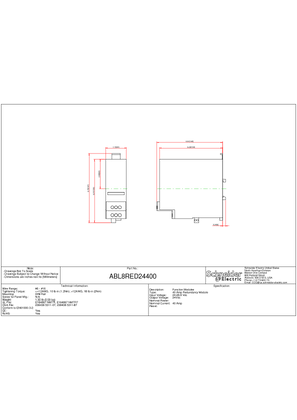

ABL8RED24400_2D_Drwng_PDF
