Phaseo ABL7 ABL8 Modular Power Supply 24V 2,5A

Home ProductsIndustrialPhaseo ABL7 ABL8Modular Power Supply

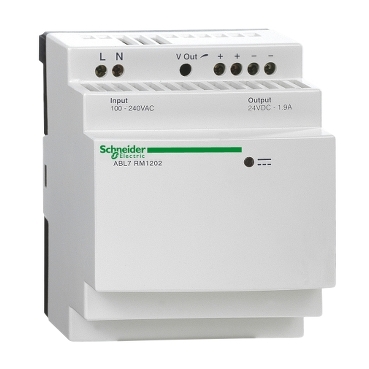

Phaseo ABL7 ABL8 Modular Power Supply 24V 2,5A

Item Number: ABL7RM24025

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width74 mm

Height icon

Height100 mm

Depth icon

Depth59 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Warranty

18 months

Physical

Rated power in w

60 W

Inrush current

90 A

Provided equipment

power factor correction filter conforming to IEC 61000-3-2

Connections - terminals

  • screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection
  • screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection

Depth

59 mm

Height

100 mm

Width

74 mm

Net weight

0.255 kg

Marking

CE

Mounting support

  • 35 x 7.5 mm symmetrical DIN rail
  • panel 2 screws, diameter : 4 mm
  • 35 x 15 mm symmetrical DIN rail

Supply

  • SELV conforming to IEC 60950-1
  • SELV conforming to IEC 60204-1
  • SELV conforming to IEC 60364-4-41

Standards

  • CSA C22.2 No 60950-1
  • UL 508
  • EN/IEC 62368-1

Product certifications

  • EAC
  • cULus 508
  • TUV 60950-1
  • RCM
  • KC

Environmental characteristic

  • EMC conforming to EN 55022 class B
  • EMC conforming to IEC 61000-6-3
  • EMC conforming to IEC 61000-6-2
  • EMC conforming to EN/IEC 61204-3
  • safety conforming to IEC 60950-1

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

  • -25...55 °C without derating mounting position A < 2000 m
  • 55...70 °C with derating factor mounting position A < 2000 m

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403018EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Package 1 bare product quantity

1

Legacy weee scope

In

Power supply type

regulated switch mode

Input voltage

  • 100...240 V AC phase to phase, terminal(s): L1-L2
  • 100...240 V AC single phase, terminal(s): N-L1

Output voltage

24 V DC

Power supply output current

2.5 A

Anti-harmonic filter

low frequency harmonic currents

Input voltage limits

85...264 V AC

Input protection type

integrated fuse (not interchangeable)

Power factor

0.5 at 24 V DC

Efficiency

84 %

Output voltage limits

22.2...28.8 V adjustable

Power dissipation in w

11.4 W

Current consumption

0.7 A 240 V AC

Residual ripple

200 mV

Output protection type

  • against undervoltage, protection technology: tripping if U < 19 V
  • against short-circuits

Status led

1 LED (green) output voltage

Output coupling

  • series
  • parallel

Operating position

vertical

Dielectric strength

3000 V with between input and output

Operating altitude

2000 m

Compatibility code

ABL7R

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.8 cm

Package 1 width

8.3 cm

Package 1 length

10.8 cm

Package 1 weight

318 g

Sustainable packaging

No

Pvc free

Yes

Pvc free

Yes

End of life manual availability

ENVEOLI1403018EN

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
ABL7RM24025_CAD_DOC
ZIP

ABL7RM24025_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 214.7 KB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB

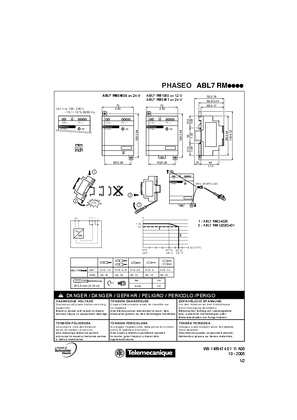

ABL7RM24025 Instruction Sheet
ZIP

ABL7RM24025 Instruction Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 318 KB
ABL7RM... Switch mode modular power supplies, Instruction Sheet
ZIP

ABL7RM... Switch mode modular power supplies, Instruction Sheet

VERSION

5.0

DATE

18 Aug 2023

REVISION

5.0

DOWNLOAD (ZIP) 442.5 KB
ABL7RM24025 MODULAR POWER SUPPLY 24V 2,5A, Product Environmental Profile
ZIP

ABL7RM24025 MODULAR POWER SUPPLY 24V 2,5A, Product Environmental Profile

VERSION

1.0

DATE

09 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 3 MB

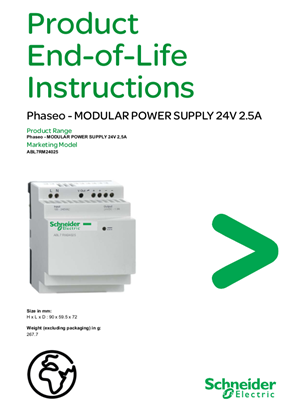

ABL7RM24025 MODULAR POWER SUPPLY 24V 2,5A, Product End-of-Life Instructions
ZIP

ABL7RM24025 MODULAR POWER SUPPLY 24V 2,5A, Product End-of-Life Instructions

VERSION

1.0

DATE

05 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 168.4 KB

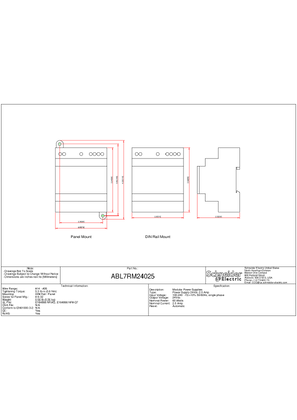

ABL7RM24025_2D_Drwng_PDF
ZIP

ABL7RM24025_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 12.7 KB
English
ZIP

English

VERSION

11.0

DATE

19 Nov 2024

REVISION

11.0

DOWNLOAD (ZIP) 2.4 MB

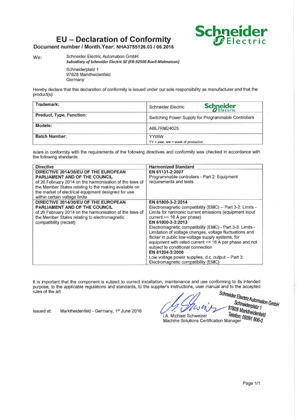

Phaseo DoC ABL7RM24025
ZIP

Phaseo DoC ABL7RM24025

VERSION

1.3

DATE

06 Oct 2022

REVISION

1.3

DOWNLOAD (ZIP) 404.1 KB

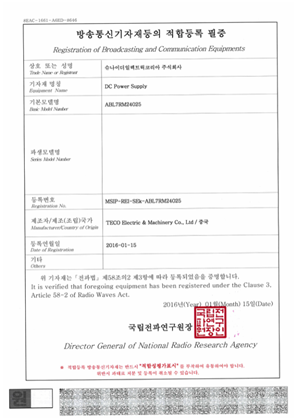

Phaseo KC Certificate ABL7RM24025
