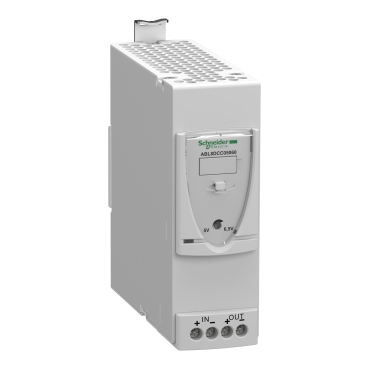

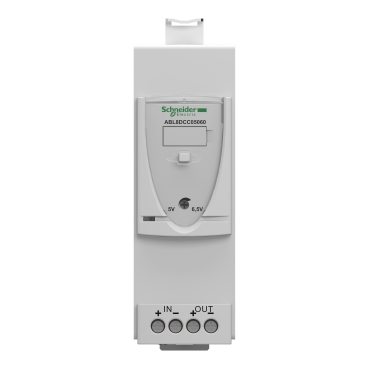

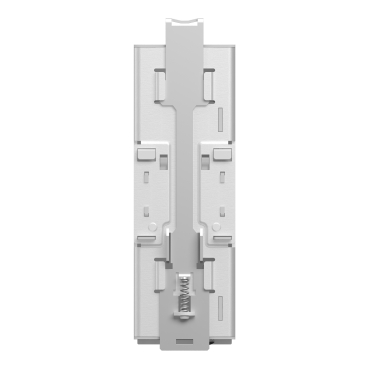

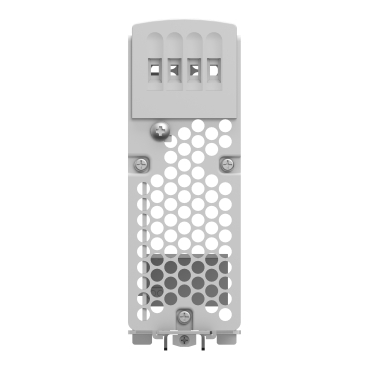

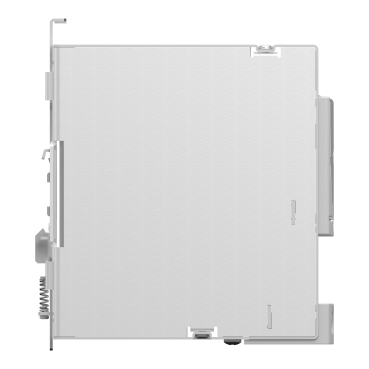

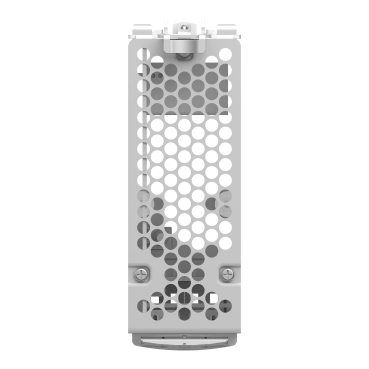

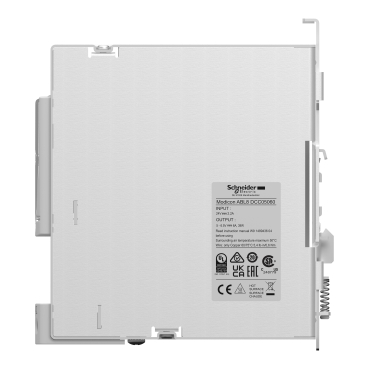

Phaseo ABL7 ABL8 Converter module 30 W, 24..28.8 V DC, 5 V DC, 6A, for regulated SMPS

Home ProductsIndustrialPhaseo ABL7 ABL8Converter module

Phaseo ABL7 ABL8 Converter module 30 W, 24..28.8 V DC, 5 V DC, 6A, for regulated SMPS

Item Number: ABL8DCC05060

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Phaseo Universal

Product or component type

converter module

Warranty

18 months

Physical

Rated power in w

30 W

Connections - terminals

  • for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10
  • for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10

Fixing mode

  • by clips on 35 mm symmetrical DIN rail, operating position: horizontal with derating to 40 %
  • by clips on 35 mm symmetrical DIN rail, operating position: vertical

Local signalling

1 LED (green) for output voltage (> 4 V)

Net weight

0.3 kg

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Relative humidity

  • 0...90 % during operation
  • 0...95 % during storage

Product certifications

  • EAC
  • cCSAus
  • RCM
  • UL

Environmental characteristic

  • EMC conforming to EN 50081-1
  • EMC conforming to IEC 61000-6-3
  • EMC conforming to IEC 61000-6-2
  • safety conforming to IEC 60950-1
  • safety conforming to IEC 61204

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP061201EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

At least in Europe

Package 1 bare product quantity

1

Package 2 bare product quantity

18

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Input voltage

24...28.8 V DC

Output voltage

5 V DC

Power supply output current

6 A

Input voltage limits

22...30 V

Efficiency

80 %

Power dissipation in w

7 W

Input protection type

against reverse polarity

Output voltage limits

5...6.5 V

Line and load regulation

1...3 %

Residual ripple

<= 100 mV

Output protection type

  • against overload, protection technology: automatic reset
  • against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset
  • against short-circuits, protection technology: automatic reset

Operating altitude

2000 m

Name of test

  • induced electromagnetic field conforming to IEC 61000-4-6 level 3
  • radiated electromagnetic field conforming to IEC 61000-4-3 level 3
  • rapid transient conforming to IEC 61000-4-4 level 3
  • surge conforming to IEC 61000-4-5 level 2
  • conducted/radiated emissions conforming to EN 55022 class B
  • electrostatic discharges conforming to IEC 61000-4-2
  • emission conforming to IEC 61000-6-3

Compatibility code

ABL8D

Overvoltage category

class 3

Vibration resistance

  • 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
  • 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2

Dielectric strength

  • 500 V between input and ground
  • 500 V between input and output
  • 500 V between output and ground

Mtbf reliability

1511725 H at 24 V DC with UTE C80-810 calculation method

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.500 cm

Package 1 width

14.500 cm

Package 1 length

16.500 cm

Package 1 weight

624.000 g

Unit type of package 2

S04

Number of units in package 2

18

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

11.900 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

113 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

16.836294028045153

Carbon footprint of the manufacturing phase [a1 to a3]

17 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.3281133284091029

Carbon footprint of the distribution phase [a4]

0.3 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.18527344700589943

Carbon footprint of the installation phase [a5]

0.2 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

94.4810221371356

Carbon footprint of the use phase [b2, b3, b4, b6]

94 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

1.164004784519576

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

112.99470772511533

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Pvc free

Yes

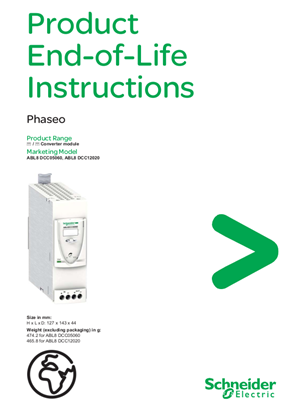

End of life manual availability

ENVEOLI120913EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • End of Life Manual

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
DC/DC module 5V
ZIP

DC/DC module 5V

VERSION

1.1

DATE

20 May 2024

REVISION

1.1

DOWNLOAD (ZIP) 5.7 MB
ABL8DCC05060_3D-simpl
ZIP

ABL8DCC05060_3D-simpl

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.1 MB
ABL8DCC05060_CAD_DOC
ZIP

ABL8DCC05060_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 536.4 KB
DC/DC module 5V
ZIP

DC/DC module 5V

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 4.6 MB
DC/DC module 5V
ZIP

DC/DC module 5V

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 4.8 MB

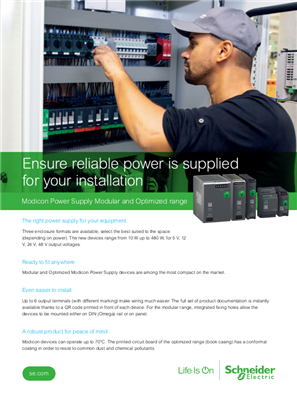

Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB
ABL8RPS... Phaseo - Universall Power Supply, Product Environmental Profile
ZIP

ABL8RPS... Phaseo - Universall Power Supply, Product Environmental Profile

VERSION

2.0

DATE

23 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 2.2 MB

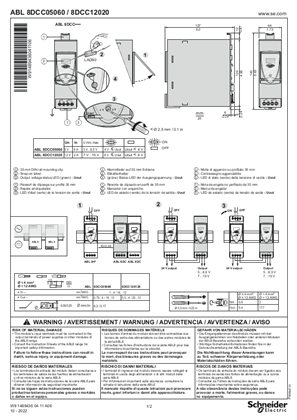

ABL8DCC...DC/DC converters Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL8DCC...DC/DC converters Phaseo Universal, Instruction Sheet (EN)

VERSION

6.0

DATE

18 Aug 2023

REVISION

6.0

DOWNLOAD (ZIP) 987.3 KB

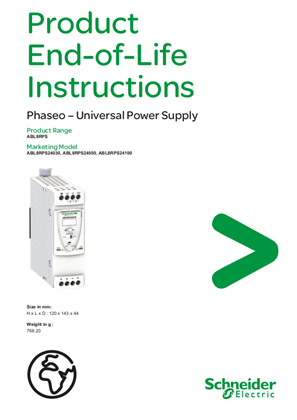

ABL8RPS... Universal range power supply, Product End-of-Life Instructions
ZIP

ABL8RPS... Universal range power supply, Product End-of-Life Instructions

VERSION

2.0

DATE

12 Jun 2023

REVISION

2.0

DOWNLOAD (ZIP) 604.7 KB

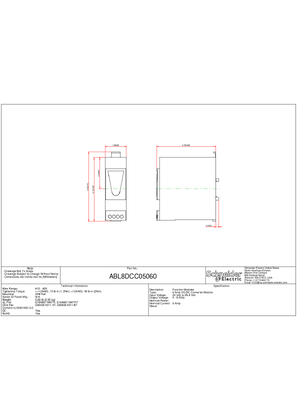

ABL8DCC05060_2D_Drwng_PDF
ZIP

ABL8DCC05060_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 17.3 KB
English
ZIP

English

VERSION

2.0

DATE

23 Oct 2024

REVISION

2.0

DOWNLOAD (ZIP) 255.9 KB

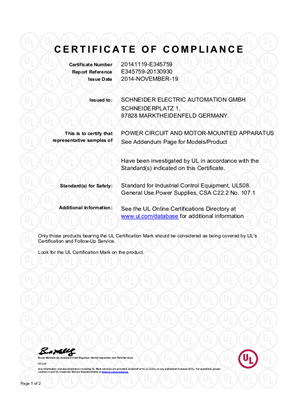

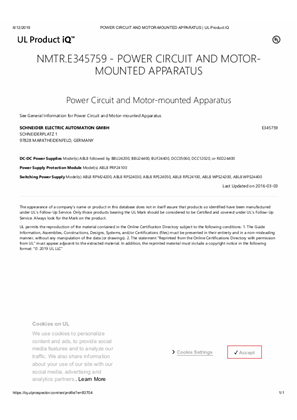

Phaseo, ABL8, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 189.5 KB
Phaseo, ABL8BBU, ABL8BUF, ABL8DCC, ABL8RED, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8BBU, ABL8BUF, ABL8DCC, ABL8RED, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 400 KB

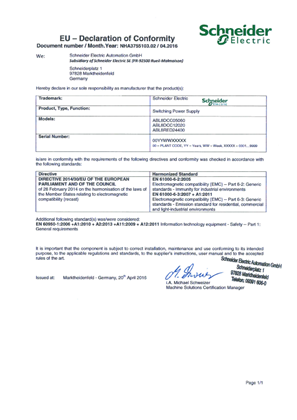

Phaseo DoC ABL8DCCxxxxx
ZIP

Phaseo DoC ABL8DCCxxxxx

VERSION

1.1

DATE

06 Oct 2022

REVISION

1.1

DOWNLOAD (ZIP) 328.1 KB

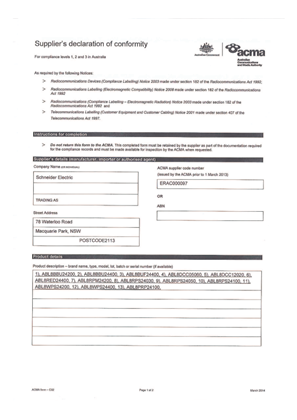

RCM_SupplierDeclarationOfConformity_Equinox_ABL8
