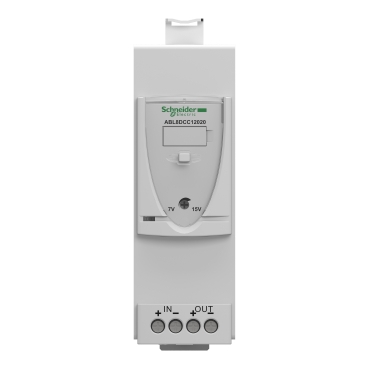

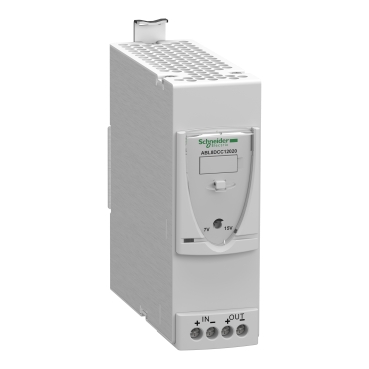

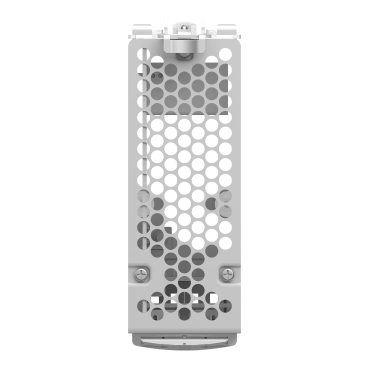

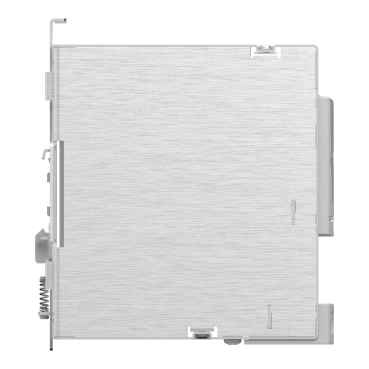

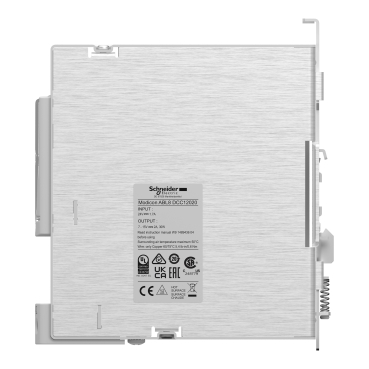

Phaseo ABL7 ABL8 Converter module 24 W, 24..28.8 V DC, 12V DC, 2A, for regulated SMPS

Item Number: ABL8DCC12020

1 PCE 0

Where To Buy

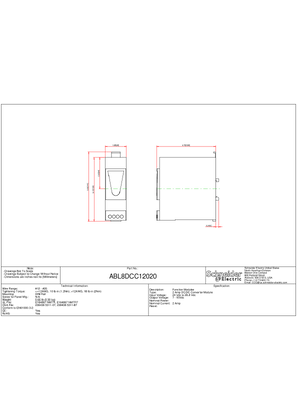

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389119406895	-

Specifications

Design

Range of product	Phaseo Universal
Product or component type	converter module
Warranty	18 months

Physical

Rated power in w	24 W

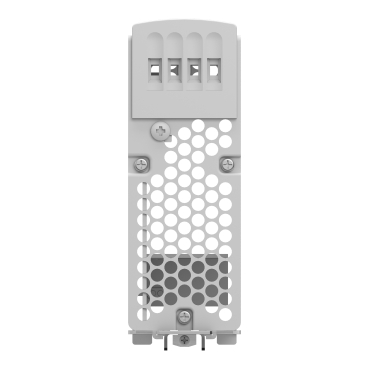

Connections - terminals	for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10 for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10

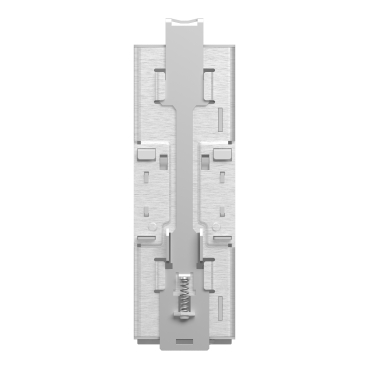

Fixing mode	by clips on 35 mm symmetrical DIN rail, operating position: horizontal by clips on 35 mm symmetrical DIN rail, operating position: vertical
Local signalling	1 LED (green) for output voltage (> 6 V)
Net weight	0.3 kg
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...85 °C
Relative humidity	0...90 % during operation 0...95 % during storage
Product certifications	RCM EAC cCSAus UL
Environmental characteristic	EMC conforming to EN 50081-1 EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 safety conforming to IEC 60950-1 safety conforming to IEC 61204
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP061201EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	18
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Input voltage	24...28.8 V DC
Output voltage	12 V DC
Power supply output current	2 A
Input voltage limits	22...30 V
Efficiency	82 %
Power dissipation in w	4 W
Input protection type	against reverse polarity
Output voltage limits	7...15 V
Line and load regulation	1...3 %
Residual ripple	<= 100 mV
Output protection type	against overload, protection technology: automatic reset against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset against short-circuits, protection technology: automatic reset
Operating altitude	2000 m
Name of test	induced electromagnetic field conforming to IEC 61000-4-6 level 3 radiated electromagnetic field conforming to IEC 61000-4-3 level 3 rapid transient conforming to IEC 61000-4-4 level 3 surge conforming to IEC 61000-4-5 level 2 conducted/radiated emissions conforming to EN 55022 class B electrostatic discharges conforming to IEC 61000-4-2 emission conforming to IEC 61000-6-3
Compatibility code	ABL8D
Overvoltage category	class 3
Vibration resistance	2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2
Dielectric strength	500 V between input and ground 500 V between input and output 500 V between output and ground
Mtbf reliability	1583182 H at 24 V DC with UTE C80-810 calculation method
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.500 cm
Package 1 width	14.500 cm
Package 1 length	16.500 cm
Package 1 weight	603.000 g
Unit type of package 2	S04
Number of units in package 2	18
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	12.161 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	72 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	16.21572549816528
Carbon footprint of the manufacturing phase [a1 to a3]	16 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.316019407650434
Carbon footprint of the distribution phase [a4]	0.3 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.1784444577733102
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	53.98915550693463
Carbon footprint of the use phase [b2, b3, b4, b6]	54 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.1211007620132456
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	71.82044563253689
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
China rohs label	5
Pvc free	Yes
End of life manual availability	ENVEOLI120913EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
