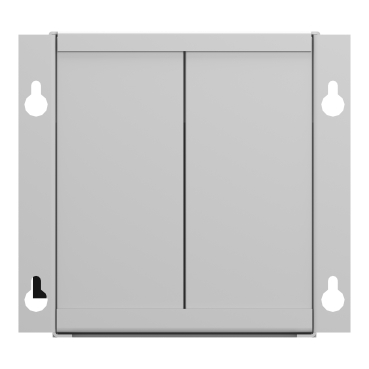

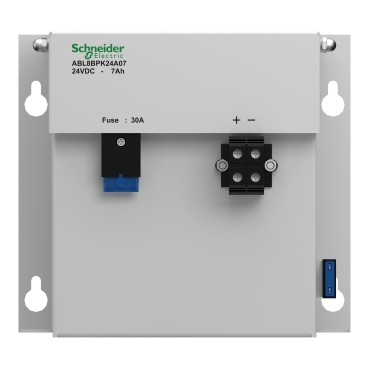

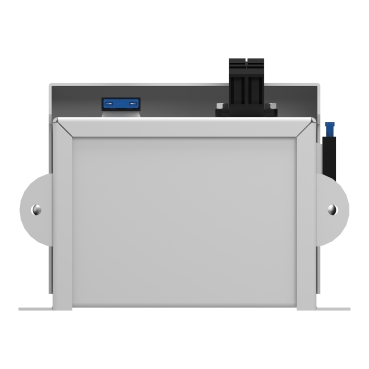

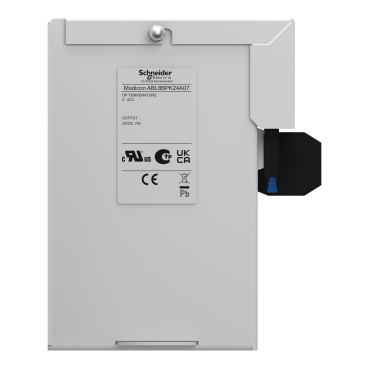

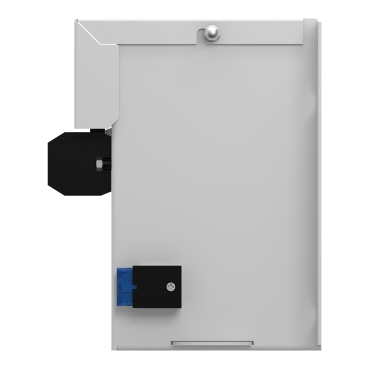

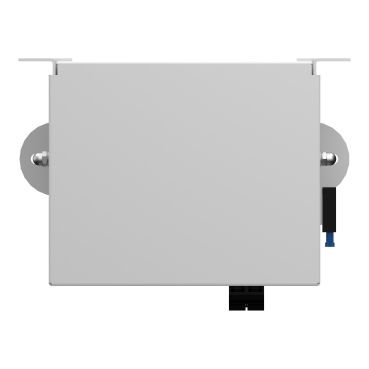

Phaseo ABL7 ABL8 Battery Pack 7Ah

Item Number: ABL8BPK24A07

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Phaseo

Product or component type

battery module

Warranty

18 months

Physical

Marking

CE

Net weight

6.5 kg

Product certifications

  • CTP
  • UL

Ambient air temperature for operation

0...40 °C

Ambient air temperature for storage

-20...50 °C

Environmental disclosure

ENVPEP1410021EN

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

12

Package 1 bare product quantity

1

Legacy weee scope

Out

At least in Europe

Weee label

No

Battery capacity

7 Ah

Input voltage limits

21...29 V

Charging time

72 h

Load current

0.7 A

Holding current

  • 3 A
  • 6 A
  • 25 A
  • 10 A
  • 20 A
  • 4 A
  • 5 A
  • 7 A
  • 1 A
  • 2 A
  • 30 A
  • 8 A
  • 15 A
  • 35 A

Self-discharge rate

  • 9 %, 3 months
  • 3 %, 1 month
  • 15 %, 6 months

Output coupling

parallel

Operating altitude

2000 m

Holding time

  • 5 h
  • 8 mn
  • 6 mn
  • 15 mn
  • 9 mn
  • 20 mn
  • 2 h
  • 0.2 s
  • 50 mn
  • 7 mn
  • 5 mn
  • 4 mn
  • 5 s
  • 0.5 s
  • 30 s
  • 10 s
  • 1 mn
  • 10 mn
  • 3 h
  • 30 mn
  • 2 mn
  • 1 h
  • 1 s
  • 3 mn
  • 2 s
  • 40 mn

Holding solution

use of battery modules

Compatibility code

ABL8B

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

19.500 cm

Package 1 width

20.000 cm

Package 1 length

26.500 cm

Package 1 weight

6.173 kg

Unit type of package 2

S06

Number of units in package 2

12

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

87.308 kg

Sustainable packaging

No

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Pvc free

Yes

End of life manual availability

ENVEOLI1410021EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
ABL8BPK24A07_3D-simpl
ZIP

ABL8BPK24A07_3D-simpl

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.6 MB
ABL8BPK24A07_CAD_DOC
ZIP

ABL8BPK24A07_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 179.4 KB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB
ABL 8BPK24A.. Battery module Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL 8BPK24A.. Battery module Phaseo Universal, Instruction Sheet (EN)

VERSION

6.0

DATE

18 Aug 2023

REVISION

6.0

DOWNLOAD (ZIP) 1.9 MB
ABL8BPK... Phaseo – Function Module, Product Environmental Profile
ZIP

ABL8BPK... Phaseo – Function Module, Product Environmental Profile

VERSION

1.0

DATE

09 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 4 MB
ABL8BPK... Phaseo – Function Module, Product End-of-Life Instructions
ZIP

ABL8BPK... Phaseo – Function Module, Product End-of-Life Instructions

VERSION

1.0

DATE

05 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 561.7 KB
ABL8... Phaseo power outage solution, User guide
ZIP

ABL8... Phaseo power outage solution, User guide

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.8 MB

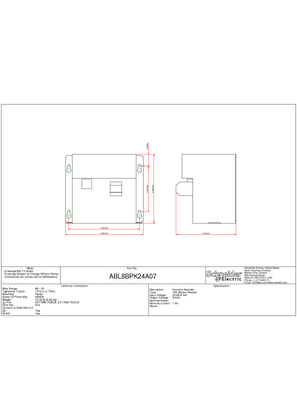

ABL8BPK24A07_2D_Drwng_PDF
