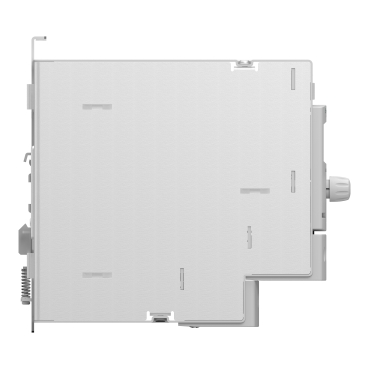

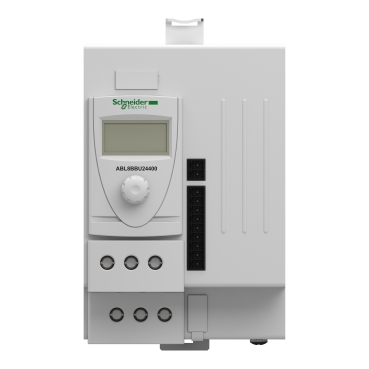

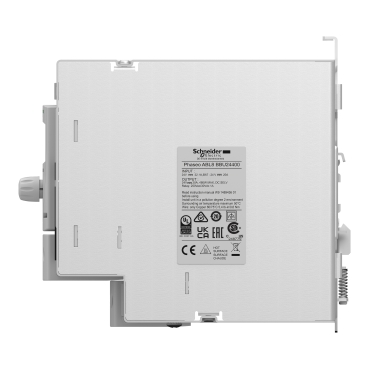

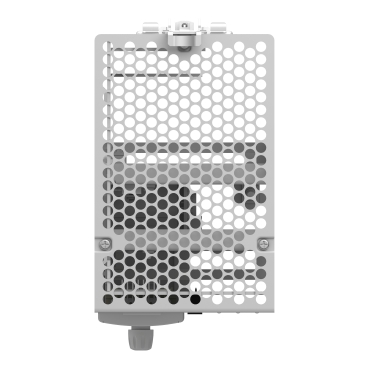

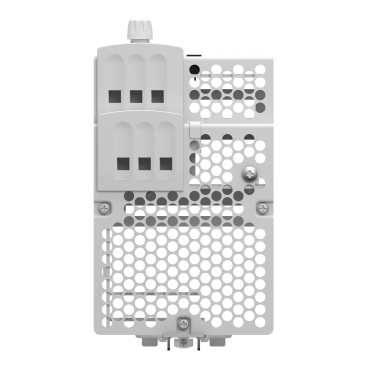

Phaseo ABL7 ABL8 Battery control module 24..28.8V DC, 24V, 40A, for regulated SMPS

Home ProductsIndustrialPhaseo ABL7 ABL8Battery control module

Phaseo ABL7 ABL8 Battery control module 24..28.8V DC, 24V, 40A, for regulated SMPS

Item Number: ABL8BBU24400

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Phaseo

Product or component type

battery control module

Warranty

18 months

Physical

Connections - terminals

  • for diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm²
  • for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
  • for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8

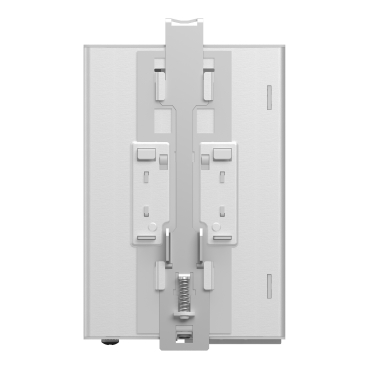

Fixing mode

  • by clips on 35 mm symmetrical DIN rail, operating position: horizontal
  • by clips on 35 mm symmetrical DIN rail, operating position: vertical

Marking

CE

Local signalling

  • 1 C/O relay for alarm status
  • 1 C/O relay for battery status
  • 1 C/O relay for power supply status
  • LCD screen for module status

Net weight

0.7 kg

Product certifications

  • RCM
  • EAC

Standards

  • UL 508
  • CSA C22.2 No 60950-1

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Environmental characteristic

  • EMC conforming to IEC 61000-6-3
  • EMC conforming to IEC 61000-6-2
  • safety conforming to IEC 60950-1
  • safety conforming to EN/IEC 61204-3

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

  • 0...90 % during operation
  • 0...95 % during storage

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP121210EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 2 bare product quantity

8

Average percentage of recycled plastic content

0 %

At least in Europe

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Input voltage

24...28.8 V DC

Output voltage

  • (Ubattery-0.5) V in battery mode DC
  • (Uin-0.25) V in nominal mode DC

Maximum output current

40 A

Maximum output current

40 A

Input voltage limits

22...30 V

Maximum power dissipation in w

12 W

Activation threshold

adjustable 22...36 V

Number of output channels

1

Holding current

  • 35 A
  • 40 A
  • 25 A
  • 30 A

Current consumption

  • 0.6 A on load
  • 0.1 mA no load
  • <= 40.6 A

Output protection type

  • against overload, protection technology: 1.5 x In
  • against short-circuits, protection technology: battery-backed mode, automatic reset
  • against short-circuits, protection technology: power-supplied mode

Name of test

  • electrostatic discharges conforming to IEC 61000-4-2
  • emission conforming to IEC 61000-6-3
  • induced electromagnetic field conforming to IEC 61000-4-6 level 3
  • radiated electromagnetic field conforming to IEC 61000-4-3 level 3
  • rapid transient conforming to IEC 61000-4-4 level 3
  • surge conforming to IEC 61000-4-5 level 2
  • conducted/radiated emissions conforming to EN 55022 class B, 20 %

Holding time

  • 7 mn
  • 10 s
  • 15 mn
  • 2 mn
  • 0.5 s
  • 4 mn
  • 9 mn
  • 5 mn
  • 1 s
  • 5 s
  • 6 mn
  • 30 s
  • 1 mn
  • 3 mn
  • 0.2 s
  • 8 mn
  • 10 mn
  • 2 s
  • 20 mn

Holding solution

use of battery modules

Compatibility code

ABL8B

Dielectric strength

  • 500 V between input and ground
  • 500 V between output and ground

Overvoltage category

class II conforming to VDE 0106-1

Mtbf reliability

707945 H at 24 V DC with UTE C80-810 calculation method

Vibration resistance

  • 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
  • 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.200 cm

Package 1 width

18.000 cm

Package 1 length

18.500 cm

Package 1 weight

1.349 kg

Unit type of package 2

S04

Number of units in package 2

8

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

11.594 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

d3d88924-119f-4532-b002-d5104837eddb

Pvc free

Yes

End of life manual availability

ENVEOLI1212010EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Battery back-up module 40A
ZIP

Battery back-up module 40A

VERSION

1.1

DATE

20 May 2024

REVISION

1.1

DOWNLOAD (ZIP) 106.6 MB
ABL8BBU24400_3D-simpl
ZIP

ABL8BBU24400_3D-simpl

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 6.1 MB
ABL8BBU24400_CAD_DOC
ZIP

ABL8BBU24400_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 912.8 KB
Battery back-up module 40A
ZIP

Battery back-up module 40A

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 6.8 MB
Battery back-up module 40A
ZIP

Battery back-up module 40A

VERSION

1.1

DATE

04 Aug 2023

REVISION

1.1

DOWNLOAD (ZIP) 6.8 MB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB
ABL8BBU Instruction Sheet
ZIP

ABL8BBU Instruction Sheet

VERSION

1.0

DATE

21 Aug 2025

REVISION

1.0

DOWNLOAD (ZIP) 969.5 KB
ABL8BBU...Battery check module Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL8BBU...Battery check module Phaseo Universal, Instruction Sheet (EN)

VERSION

5.0

DATE

18 Aug 2023

REVISION

5.0

DOWNLOAD (ZIP) 6.4 MB
ABL8... Battery control module, Product End-of-Life Instructions
ZIP

ABL8... Battery control module, Product End-of-Life Instructions

VERSION

1.0

DATE

12 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.4 MB
ABL8BBU24... Battery Control Module, Product Environmental Profile
ZIP

ABL8BBU24... Battery Control Module, Product Environmental Profile

VERSION

2.0

DATE

09 Jun 2023

REVISION

2.0

DOWNLOAD (ZIP) 2.3 MB
ABL8... Phaseo power outage solution, User guide
ZIP

ABL8... Phaseo power outage solution, User guide

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.8 MB

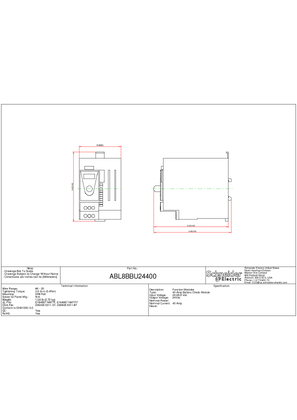

ABL8BBU24400_2D_Drwng_PDF
