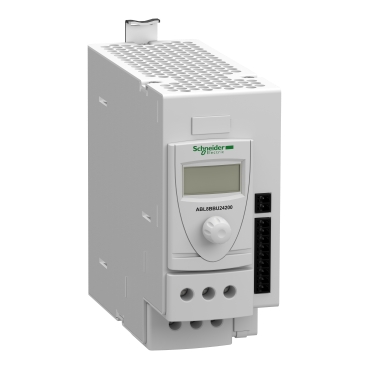

Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS

Home ProductsIndustrialPhaseo ABL7 ABL8Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS

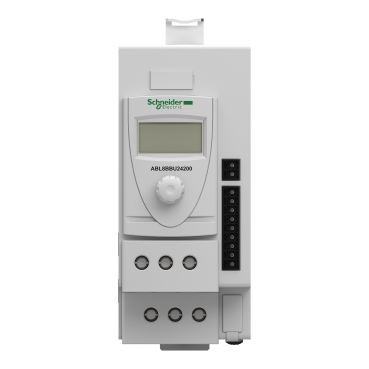

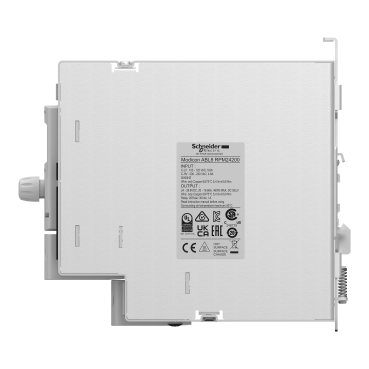

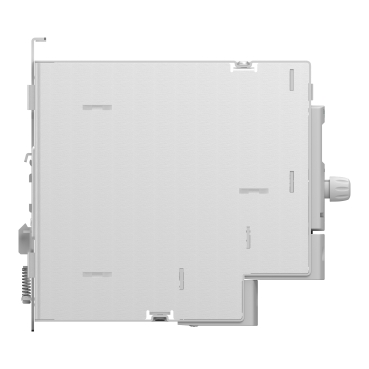

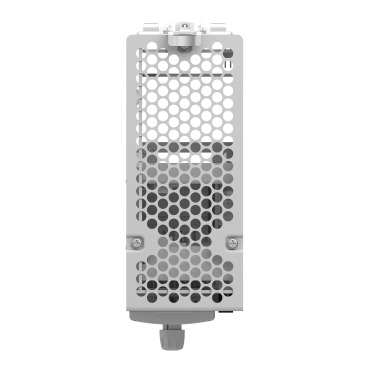

Phaseo ABL7 ABL8, Battery control module, 24..28.8V DC, 24V, 20A, for regulated SMPS

Item Number: ABL8BBU24200

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Phaseo

Product or component type

battery control module

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

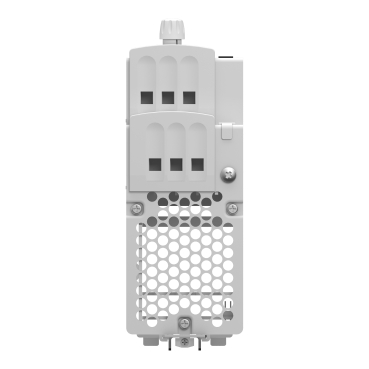

Connections - terminals

for diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm²|for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8|for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8

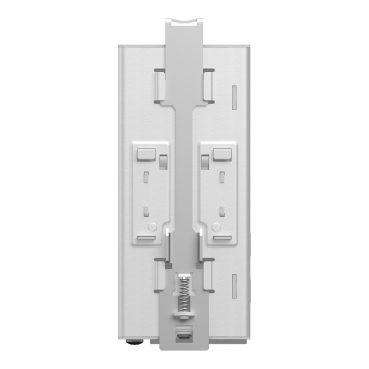

Fixing mode

by clips on 35 mm symmetrical DIN rail, operating position: horizontal|by clips on 35 mm symmetrical DIN rail, operating position: vertical

Marking

CE

Local signalling

1 C/O relay for alarm status|1 C/O relay for battery status|1 C/O relay for power supply status|LCD screen for module status

Width

60 mm

Height

125 mm

Depth

160 mm

Net weight

0.5 kg

Product certifications

RCM|EAC

Standards

UL 508|CSA C22.2 No 60950-1

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Environmental characteristic

EMC conforming to IEC 61000-6-3|EMC conforming to IEC 61000-6-2|safety conforming to IEC 60950-1|safety conforming to EN/IEC 61204-3

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

0...90 % during operation|0...95 % during storage

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

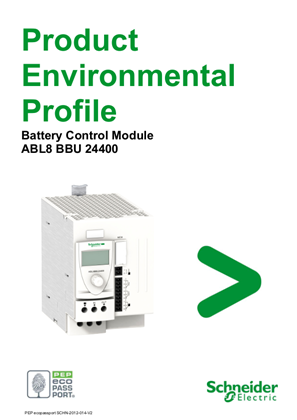

Environmental disclosure

ENVPEP121210EN

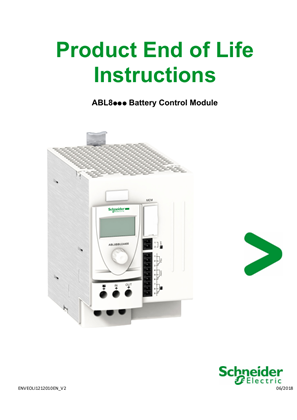

Circularity profile

ENVEOLI1212010EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Commercial status history

SESA301466 | Tue Feb 20 09:14:00 EST 2024 | From Unitary Local | From 08 to 14

Package 1 bare product quantity

1

Input voltage

24...28.8 V DC

Output voltage

(Ubattery-0.5) V in battery mode DC|(Uin-0.25) V in nominal mode DC

Maximum output current

20 A

Maximum output current

20 A

Input voltage limits

22...30 V

Maximum power dissipation in w

7 W

Activation threshold

adjustable 22...36 V

Number of output channels

1

Holding current

15 A|4 A|5 A|7 A|1 A|20 A|3 A|10 A|2 A|6 A|8 A

Current consumption

0.6 A on load|0.1 mA no load|<= 40.6 A

Output protection type

against overload, protection technology: 1.5 x In|against short-circuits, protection technology: battery-backed mode, automatic reset|against short-circuits, protection technology: power-supplied mode

Operating altitude

2000 m

Name of test

electrostatic discharges conforming to IEC 61000-4-2|emission conforming to IEC 61000-6-3|induced electromagnetic field conforming to IEC 61000-4-6 level 3|radiated electromagnetic field conforming to IEC 61000-4-3 level 3|rapid transient conforming to IEC 61000-4-4 level 3|surge conforming to IEC 61000-4-5 level 2|conducted/radiated emissions conforming to EN 55022 class B, 20 %

Holding time

20 mn|2 s|5 h|3 h|5 mn|1 mn|7 mn|30 s|5 s|10 s|3 mn|4 mn|40 mn|2 h|0.5 s|1 s|2 mn|15 mn|10 mn|1 h|8 mn|9 mn|50 mn|30 mn|6 mn

Holding solution

use of battery modules

Compatibility code

ABL8B

Dielectric strength

500 V between input and ground|500 V between output and ground

Overvoltage category

class II conforming to VDE 0106-1

Mtbf reliability

718708 H at 24 V DC with UTE C80-810 calculation method

Vibration resistance

2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2|3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9 cm

Package 1 width

19.5 cm

Package 1 length

19.5 cm

Package 1 weight

1.468 kg

Unit type of package 2

S03

Number of units in package 2

8

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

11.929 kg

Unit type of package 3

P06

Number of units in package 3

72

Package 3 height

80 cm

Package 3 width

80 cm

Package 3 length

60 cm

Package 3 weight

118.7 kg

Pvc free

Yes
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • End of Life Manual

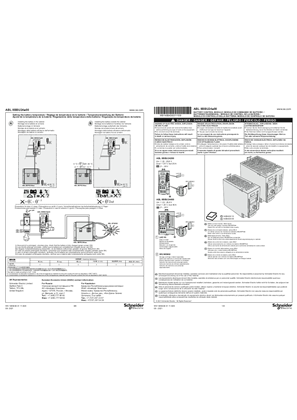

  • Installation Instruction

  • Environmental Disclosure

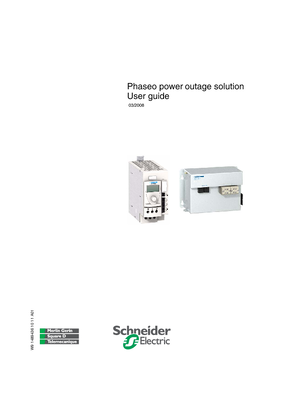

  • Operating Manuals

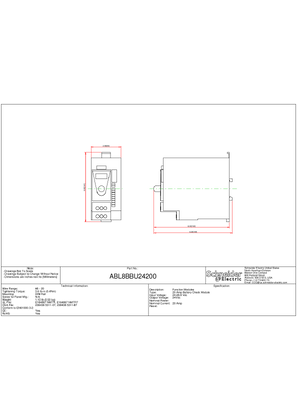

  • Technical Drawing

  • Certificates (MSDS)

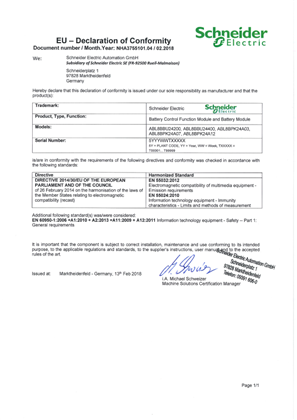

  • Declaration of Conformity
