Specifications
Design

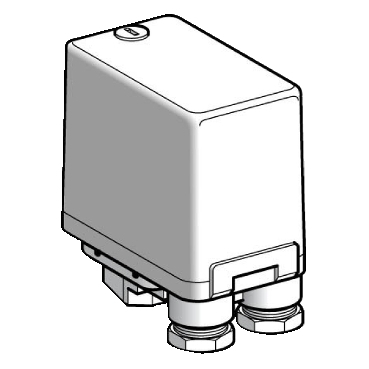

| Range of product | Telemecanique Pressure sensors XM |
|---|
Physical
| Cable entry | 2 entries incorporating Pg 13.5 plastic cable gland, cable outer diameter: 9-13 mm conforming to NF C 68-300 |
|---|---|
| Sale per indivisible quantity | 1 |
| Control type | without |
| Electrical durability |
|
| Mechanical durability | 1000000 cycles |
| Net weight | 0.43 kg |
| Depth | 98 mm |
| Height | 106 mm |
| Width | 57 mm |
| Product certifications | EAC |
| Standards |
|
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...70 °C |
| Ip degree of protection | IP54 conforming to IEC 60529 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP111130EN |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
Filter items
-
All
-
Installation Instruction
-

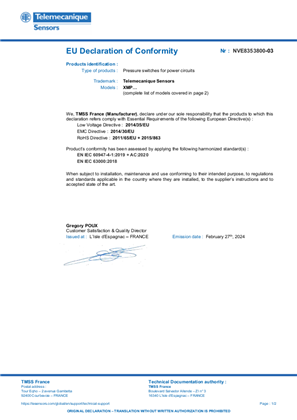

Declaration of Conformity
-
