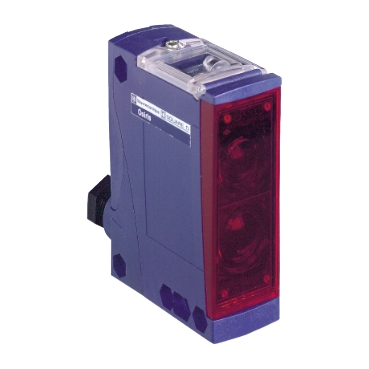

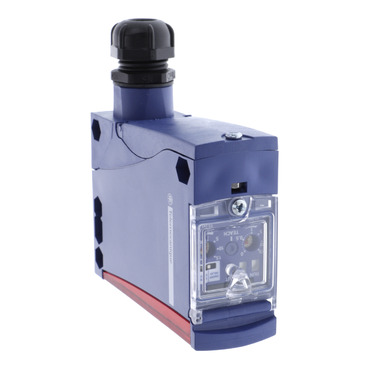

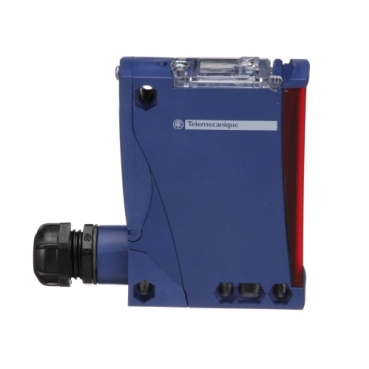

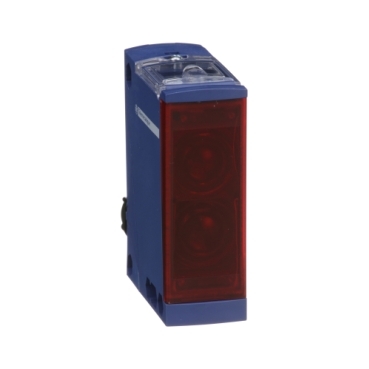

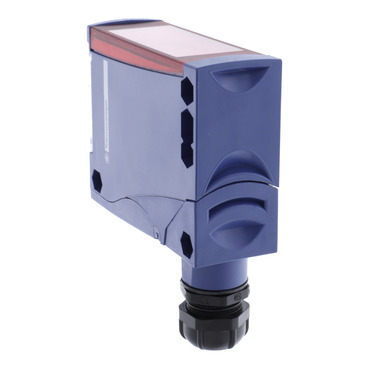

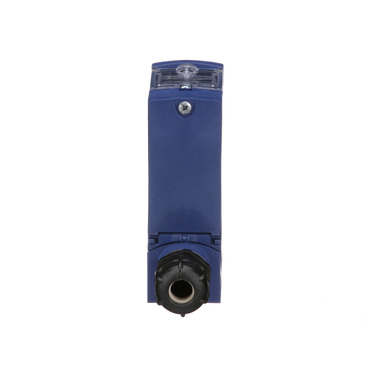

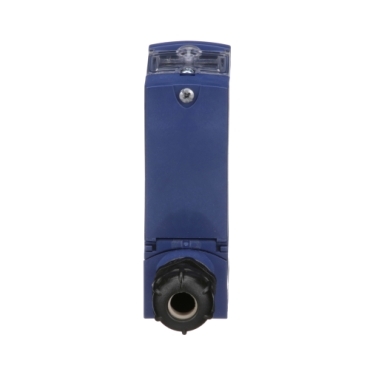

OsiSense XU Photo Electric Sensor Universal SN 0 TO

Item Number: XUX0ARCTT16

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width31 mm

Height92 mm

Depth77 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110168068	-

Specifications

Design

Range of product	Telemecanique Photoelectric sensors XU
Warranty	18 months

Physical

Cable entry	1 entry for M16 x 1.5 cable gland, cable outer diameter: 7-10 mm
Electrical durability	500000 cycles, cos f = 1 , operating rate <60 cyc/mn at 250 V 500000 cycles, cos f = 0.4 , operating rate <60 cyc/mn at 250 V
Depth	77 mm
Height	92 mm
Width	31 mm
Net weight	0.2 kg
Product certifications	UL CE CSA
Ambient air temperature for operation	-25...55 °C
Ambient air temperature for storage	-40...70 °C
Ip degree of protection	IP65 conforming to IEC 60529 IP67 conforming to IEC 60529
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP111233EN
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	plastic

Others

Important message	We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	22
Package 3 bare product quantity	352
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	No
	At least in Europe
Series name	general purpose multimode
Electronic sensor type	photo-electric sensor
Sensor name	XUX
Sensor design	compact 92 x 71
Detection system	multimode
Sensing range	> 0...40 m
Type of output signal	discrete
Supply circuit type	AC/DC
Wiring technique	5-wire
Discrete output function	1 NO or 1 NC programmable
Electrical connection	screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
Product specific application	-
Emission	infrared diffuse infrared diffuse with background suppression infrared thru beam red polarised reflex
[sn] nominal sensing distance	11 m polarised reflex need reflector XUZC50 40 m thru beam need a transmitter XUX0ARCTT16T 2 m diffuse 1.3...1.3 m diffuse with background suppression
Enclosure material	PBT
Lens material	PMMA
Maximum sensing distance	15 m polarised reflex 3 m diffuse 60 m thru beam 1.3 m diffuse with background suppression
Output type	relay
Add on output	with alarm output, <= 100 mA with overload and short-circuit protection
Status led	1 LED (green) for supply 1 LED (red) for instability 1 LED (yellow) for output state
[us] rated supply voltage	24...240 V AC/DC
Switching capacity in ma	0.5 A (cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V) 3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
Switching frequency	<= 20 Hz
Maximum voltage drop	<1.5 V (closed state)
Maximum power consumption in w	2 W AC/DC
Time delay range	0.02...15 s monostable, on-delay or off-delay (programmable) delay
Maximum delay first up	200 ms
Maximum delay response	25 ms
Maximum delay recovery	25 ms
Setting-up	self-teaching
Vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	13.000 cm
Package 1 width	9.500 cm
Package 1 length	4.000 cm
Package 1 weight	209.000 g
Unit type of package 2	S02
Number of units in package 2	22
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	5.119 kg
Unit type of package 3	P06
Number of units in package 3	352
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	90.850 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	fbedf799-a7f7-4346-b673-e6228b691a6f
China rohs label	5
End of life manual availability	ENVEOLI111209EN
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Handout
Installation Instruction
eTechPub
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

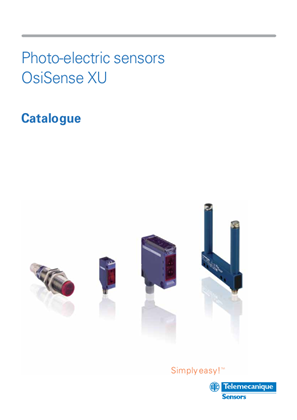

Photo-electric sensors OsiSense XU, compact 92X71, - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 999.3 KB

ZIP

Telemecanique Sensors: The essential guide of detection

VERSION

1.0

DATE

03 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 24.3 MB

ZIP

Photo-electric sensors XU range

VERSION

1.1

DATE

26 Apr 2024

REVISION

1.1

DOWNLOAD (ZIP) 34.4 MB

ZIP

Detection components - Panorama 2024

VERSION

2.1

DATE

22 Jul 2024

REVISION

2.1

DOWNLOAD (ZIP) 11.8 MB

ZIP

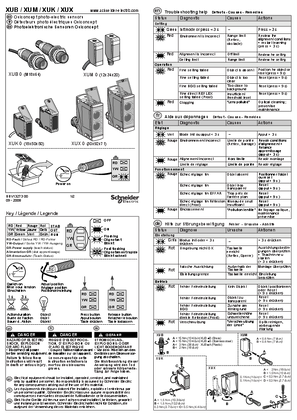

XUB / XUM / XUK / XUX Osiconcept photo-electric sensors, instruction sheet
