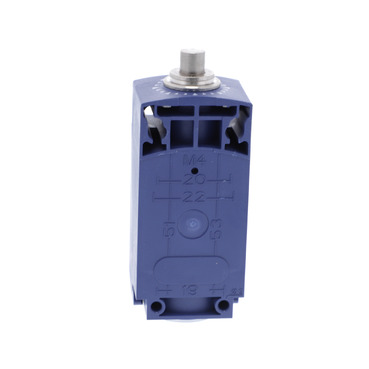

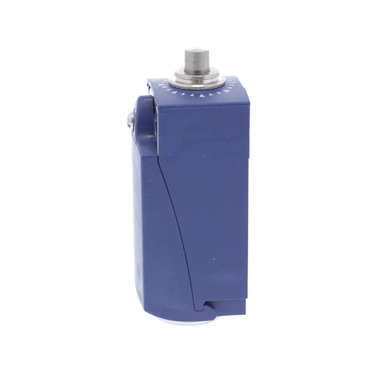

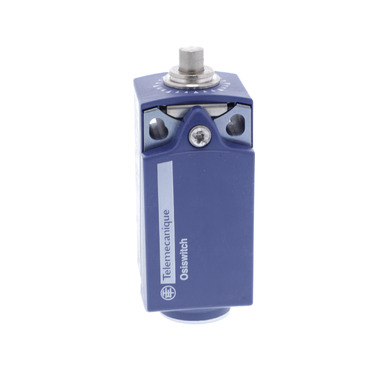

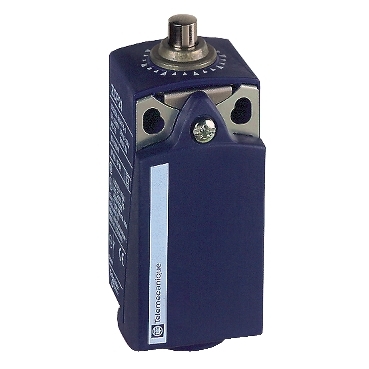

OsiSense XC Standard Limit Switch XCKP Steel End Plunger 1 Nc

Item Number: XCKP2110P16

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width31 mm

Height65 mm

Depth30 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110201727	-

Specifications

Design

Range of product	Telemecanique Limit switches XC Standard
Product or component type	limit switch

Physical

Fixing mode	by the body
Number of poles	2
Cable entry	1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm
Electrical durability	5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Mechanical durability	15000000 cycles
Width	31 mm
Height	65 mm
Depth	30 mm
Net weight	0.09 kg
Device presentation	complete product
Ip degree of protection	IP66 conforming to IEC 60529 IP67 conforming to IEC 60529
Ik degree of protection	IK04 conforming to IEC 62262
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-40...70 °C
Product certifications	CCC CSA UL
Standards	IEC 60947-5-1 IEC 60204-1 CSA C22.2 No 14 UL 508
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP110606EN
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Important message	We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	81
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Series name	standard format
Device short name	XCKP
Sensor design	compact form B conforming to CENELEC EN 50047
Body type	fixed
Head type	plunger head
Body material	plastic
Head material	zamak
Movement of operating head	linear
Type of operator	spring return plunger metal
Type of approach	vertical approach, 1 direction
Contacts type and composition	1 NC + 1 NO
Contact operation	snap action
Switch actuation	on end
Electrical connection	screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form	Zb
Positive opening	with
Positive opening minimum force	45 N
Minimum force for tripping	15 N
Minimum actuation speed	0.01 m/min
Maximum actuation speed	0.5 m/s
Repeat accuracy	0.1 mm on the tripping points with 1 million operating cycles
Contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
[ui] rated insulation voltage	300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
Maximum resistance across terminals	25 MOhm conforming to IEC 60255-7 category 3
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1
Short-circuit protection	10 A cartridge fuse, type gG
Terminals description iso n°1	(13-14)NO (21-22)NC
Compatibility code	XCKP
Specific application	compact variable
Shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance	25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection class	class II conforming to IEC 61140 class II conforming to NF C 20-030
Protective treatment	TC
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.300 cm
Package 1 width	4.600 cm
Package 1 length	8.100 cm
Package 1 weight	72.000 g
Unit type of package 2	S02
Number of units in package 2	81
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	6.360 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	4e7fad22-cb90-485e-b0d8-6dd3cec617cd
End of life manual availability	ENVEOLI110603EN
Take-back	No
Warranty (in months)	18
