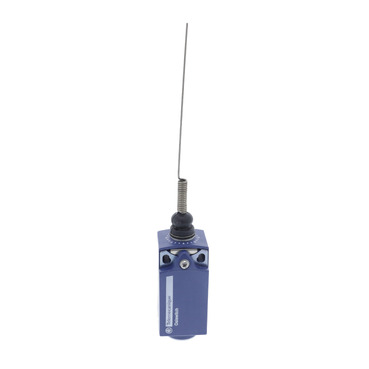

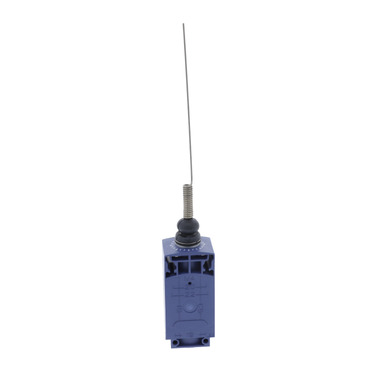

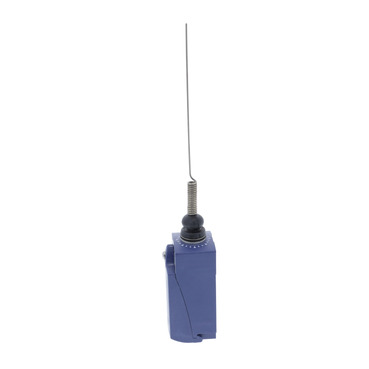

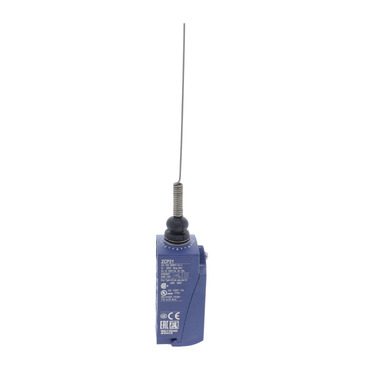

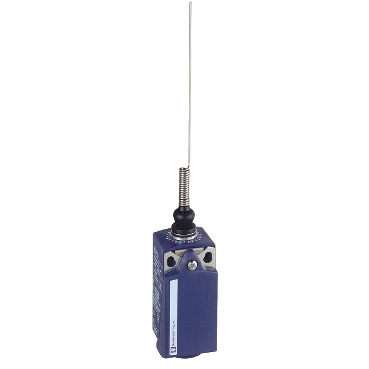

OsiSense XC Standard Limit Switch XCKP Cat S Whisker 1 Nc And

Home ProductsIndustrialOsiSenseLimit Switch

OsiSense XC Standard Limit Switch XCKP Cat S Whisker 1 Nc And

Item Number: XCKP2106P16

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width31 mm

Height icon

Height65 mm

Depth icon

Depth30 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Telemecanique Limit switches XC Standard

Product or component type

limit switch

Warranty

18 months

Physical

Fixing mode

by the body

Number of poles

2

Cable entry

1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm

Electrical durability

  • 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
  • 5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
  • 5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Mechanical durability

5000000 cycles

Width

31 mm

Height

65 mm

Depth

30 mm

Net weight

0.085 kg

Device presentation

complete product

Ip degree of protection

  • IP66 conforming to IEC 60529
  • IP67 conforming to IEC 60529

Ik degree of protection

IK04 conforming to IEC 62262

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...70 °C

Product certifications

  • UL
  • CCC
  • CSA

Standards

  • IEC 60204-1
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • UL 508

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110606EN

Circularity profile

ENVEOLI110603EN

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

plastic

Others

Package 1 bare product quantity

1

Commercial status history

  • SESA301466
  • Mon Jul 17 19:45:00 EDT 2023
  • From Import Local
  • From 08 to 18

Important message

We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com

Package 2 bare product quantity

33

Series name

standard format

Device short name

XCKP

Sensor design

compact

Body type

fixed

Head type

multi-directional head

Body material

plastic

Head material

zamak

Movement of operating head

multi-directional

Type of operator

spring return cat''s whisker

Type of approach

multi-directional approach

Contacts type and composition

1 NC + 1 NO

Contact operation

snap action

Switch actuation

by any moving part

Electrical connection

screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Contacts insulation form

Zb

Positive opening

without

Minimum torque for tripping

0.13 N.m

Maximum actuation speed

1 m/s

Repeat accuracy

0.1 mm on the tripping points with 1 million operating cycles

Contact code designation

  • A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A
  • Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

[ui] rated insulation voltage

  • 300 V conforming to UL 508
  • 500 V (pollution degree 3) conforming to IEC 60947-1
  • 300 V conforming to CSA C22.2 No 14

Maximum resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

[uimp] rated impulse withstand voltage

  • 6 kV conforming to IEC 60664
  • 6 kV conforming to IEC 60947-1

Short-circuit protection

10 A cartridge fuse, type gG

Terminals description iso n°1

  • (13-14)NO
  • (21-22)NC

Compatibility code

XCKP

Specific application

compact variable

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Electrical shock protection class

  • class II conforming to IEC 61140
  • class II conforming to NF C 20-030

Protective treatment

TC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.200 cm

Package 1 width

4.600 cm

Package 1 length

21.600 cm

Package 1 weight

81.000 g

Unit type of package 2

S02

Number of units in package 2

33

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

3.180 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

4e7fad22-cb90-485e-b0d8-6dd3cec617cd

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
