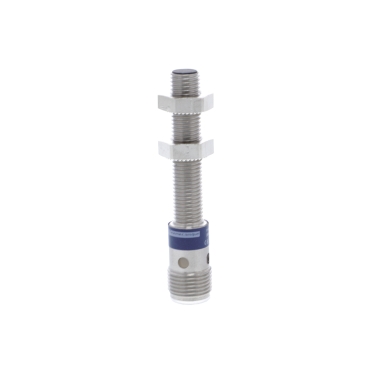

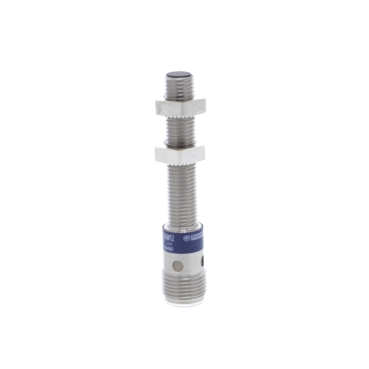

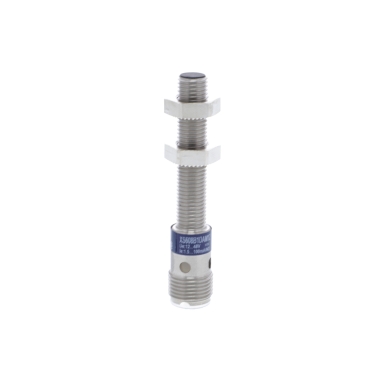

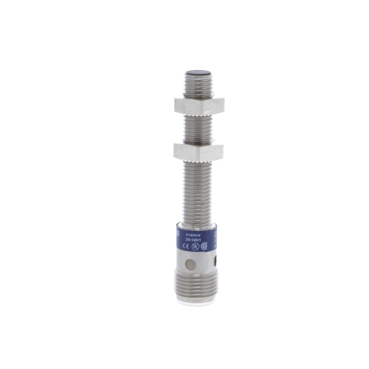

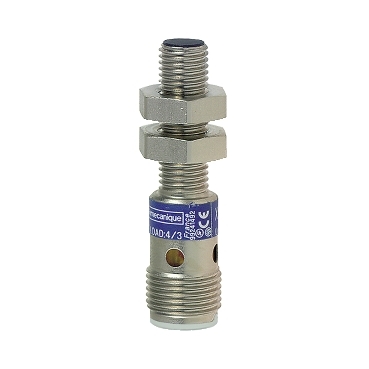

OsiSense XS & XT Inductive Sensor XS6 M8, L62mm, stainless, Sn2.5 mm, 12...48 VDC, M12

Item Number: XS608B1NAM12

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110145663	-

Specifications

Design

Range of product	Telemecanique Inductive proximity sensors XS

Physical

Sensor type	inductive proximity sensor
Ip degree of protection	IP67 conforming to IEC 60529
Marking	CE
Length	62 mm
Net weight	0.015 kg
Product certifications	CSA UL
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP111006EN
Eu rohs directive	Compliant By Exemption

Material

Material	stainless steel

Others

Important message	We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	44
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Series name	general purpose
Sensor name	XS6
Sensor design	cylindrical M8
Size	62 mm
Body type	fixed
Detector flush mounting acceptance	flush mountable
Type of output signal	discrete
Wiring technique	3-wire
[sn] nominal sensing distance	2.5 mm
Discrete output function	1 NO
Output circuit type	DC
Discrete output type	NPN
Electrical connection	male connector M12, 4 pins
[us] rated supply voltage	12...24 V DC with reverse polarity protection
Switching capacity in ma	<= 200 mA DC with overload and short-circuit protection
Thread type	M8 x 1
Detection face	frontal
Front material	PPS
Enclosure material	stainless steel 303
Sensing range	> 0...2.5 mm
Operating zone	0...2 mm
Differential travel	1...15% of Sr
Status led	output state: 1 LED (yellow)
Supply voltage limits	10...36 V DC
Switching frequency	<= 2500 Hz
Maximum voltage drop	<2 V (closed)
Current consumption	<= 10 mA no-load
Maximum delay first up	10 ms
Maximum delay response	0.2 ms
Maximum delay recovery	0.2 ms
Threaded length	40 mm
Vibration resistance	25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.200 cm
Package 1 width	9.600 cm
Package 1 length	6.700 cm
Package 1 weight	22.000 g
Unit type of package 2	S02
Number of units in package 2	44
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	1.293 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	3bc2f5da-1620-4d53-878c-410a857f3212
End of life manual availability	ENVEOLI1110045
Take-back	No
Warranty (in months)	18
