Nema Pressure Switches Pressure Switch 575V Ac 1Hp F +Options

Item Number: 9013FYG2J21B7PU2

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width2.78 in

Height2.8 in

Depth3.76 in

See full specifications

Specifications

Design

Range of product	Pumptrol
Warranty	18 months

Physical

Quantity per set	1
Type of packing	individual
Electrical durability	100000 cycles, operating rate <10 cyc/mn
Mechanical durability	300000 cycles
Net weight	1.15 lb(US)
Width	2.78 in
Height	2.8 in
Depth	3.76 in
Standards	UL 508 NSF ANSI 61 Annex G CE
Ambient air temperature for operation	-22...158 °F
Ambient air temperature for storage	-22...158 °F
Ip degree of protection	IP20 conforming to IEC 60529
Product certifications	CSA UL listed
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP111211EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	polypropylene: cover noryl thermoplastic resin or equivalent: cover

Others

Important message	We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Pressure sensor name	9013FY
Pressure sensor size	80 psi (5-60 psi)
Value of setting	30...50 psi
Electrical circuit type	power circuit
Product specific application	control electrically driven water pumps
Pressure sensor type	electromechanical pressure switch
Controlled fluid	fresh water (32-158 °F)
Adjustable range on rising pressure	25...80 psi
Approximate adjustable differential	20...30 psi
Destruction pressure	220 psi
Pressure actuator	diaphragm
Pressure switch type of operation	regulation between 2 thresholds
Scale type	adjustable differential
Setting	internal
Local display	without
Contacts type and composition	2 NC, snap action, DPST-DB, Form YY
Cable entry number	2 0.88 in cable entries with 0.84 in across flats conforming to UL 508
Electrical connection	slip-on connectors (line and load terminals)
Fluid connection type	0.25 inch NPSF internal conforming to UL 508
Short-circuit protection	20 A cartridge fuse, type gG
Materials in contact with fluid	zinc plated steel or equivalent flange nitrile (Buna-N) or equivalent rubber diaphragm
Operating position	any position
Motor power kw	1.5 kW (2 hp) at 115 V AC, 1 phase 2.2 kW (3 hp) at 115 V AC, 3 phases 2.2 kW (3 hp) at 230 V AC, 1 phase 3.7 kW (5 hp) at 230 V AC, 3 phases
Terminal block type	4 terminals
Maximum operating rate	10 cyc/mn
[ui] rated insulation voltage	575 V conforming to UL 508
Repeat accuracy	+/- 3 %
Terminals description iso n°1	L2-T2 L1-T1
Factory modification	supplied with 1 grommet pulsation plug
Protective treatment	none
Nema degree of protection	NEMA 1 conforming to UL 50
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	25.806 cm
Package 1 width	10.16 cm
Package 1 length	65.548 cm
Package 1 weight	453.592 g
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	ENVEOLI111210EN
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

PDF

9013FSG Pumptrol Pressure Switches Brochure

VERSION

1.0

DATE

20 Nov 2012

REVISION

1.0

DOWNLOAD (PDF) 268.7 KB

ZIP

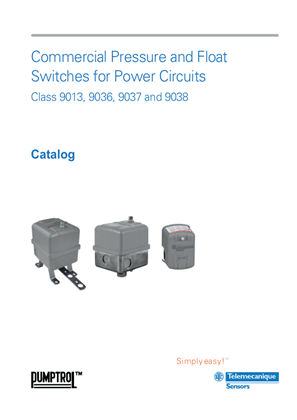

Commercial Pressure and Float Switches for Power Circuits Class 9013, 9036, 9037 and 9038
