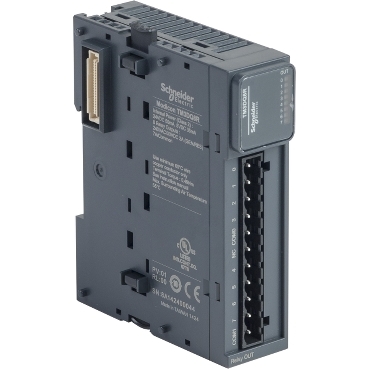

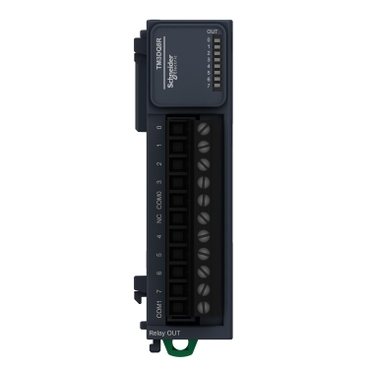

Modicon TM3 Discrete output module 8 relay outputs (screw) 24VDC

Item Number: TM3DQ8R

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width27.4 mm

Height icon

Height90 mm

Depth icon

Depth84.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete output module

Physical

Range compatibility

  • Modicon M241
  • Modicon M251
  • Modicon M221
  • Modicon M262

Mechanical durability

20000000 cycles

Local signalling

1 LED per channel (green) for output status

Mounting support

  • top hat type TH35-15 rail conforming to IEC 60715
  • top hat type TH35-7.5 rail conforming to IEC 60715
  • plate or panel with fixing kit

Height

90 mm

Width

27.4 mm

Depth

84.6 mm

Net weight

0.11 kg

Marking

CE

Standards

IEC 61131-2

Product certifications

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1402009EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 3 bare product quantity

504

Package 2 bare product quantity

42

Package 1 bare product quantity

1

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Discrete output logic

positive or negative

Discrete output type

relay normally open

Maximum cable distance between devices

unshielded cable: <30 m for relay output

Pollution degree

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.519 cm

Package 1 width

10.487 cm

Package 1 length

12.849 cm

Package 1 weight

240.0 g

Unit type of package 2

CAR

Number of units in package 2

42

Package 2 height

29.4 cm

Package 2 width

39.7 cm

Package 2 length

56.0 cm

Package 2 weight

10.95 kg

Unit type of package 3

P12

Number of units in package 3

504

Package 3 height

105 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

130 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

52 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

15.0812449141462

Carbon footprint of the manufacturing phase [a1 to a3]

15 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.05212255335683411

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.006146806439778057

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

36.42818651281858

Carbon footprint of the use phase [b2, b3, b4, b6]

36 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.5581033264017555

Carbon footprint of the end-of-life phase [c1 to c4]

0.6 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

52.12580411316315

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Pvc free

Yes

End of life manual availability

ENVEOLI1402009EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
