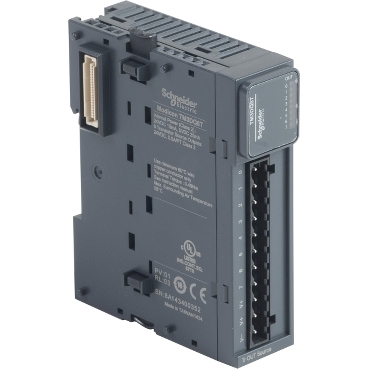

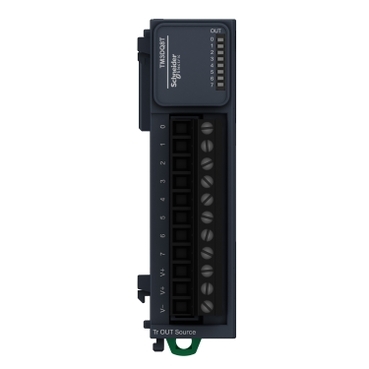

Modicon TM3 Discrete output module 8 outputs transistor PNP (screw)

Home ProductsIndustrialModiconDiscrete output module

Modicon TM3 Discrete output module 8 outputs transistor PNP (screw)

Item Number: TM3DQ8T

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width27.4 mm

Height icon

Height90 mm

Depth icon

Depth84.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete output module

Physical

Range compatibility

  • Modicon M241
  • Modicon M251
  • Modicon M221
  • Modicon M262

Local signalling

1 LED per channel (green) for output status

Mounting support

  • top hat type TH35-15 rail conforming to IEC 60715
  • top hat type TH35-7.5 rail conforming to IEC 60715
  • plate or panel with fixing kit

Height

90 mm

Width

27.4 mm

Depth

84.6 mm

Net weight

0.76 kg

Marking

CE

Standards

IEC 61131-2

Product certifications

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1402009EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 3 bare product quantity

504

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

42

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Discrete output logic

positive logic (source)

Discrete output type

transistor

Maximum cable distance between devices

unshielded cable: <30 m for transistor output

Pollution degree

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.601 cm

Package 1 width

10.536 cm

Package 1 length

12.965 cm

Package 1 weight

210.0 g

Unit type of package 2

CAR

Number of units in package 2

42

Package 2 height

30.0 cm

Package 2 width

39.3 cm

Package 2 length

56.3 cm

Package 2 weight

10.15 kg

Unit type of package 3

P12

Number of units in package 3

504

Package 3 height

105 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

133 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

62 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

41.796593047776604

Carbon footprint of the manufacturing phase [a1 to a3]

42 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.14445393358894024

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.017035434990242043

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

18.21409325640929

Carbon footprint of the use phase [b2, b3, b4, b6]

18 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

1.5467435045991507

Carbon footprint of the end-of-life phase [c1 to c4]

2 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

61.71891917736423

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Pvc free

Yes

End of life manual availability

ENVEOLI1402009EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
