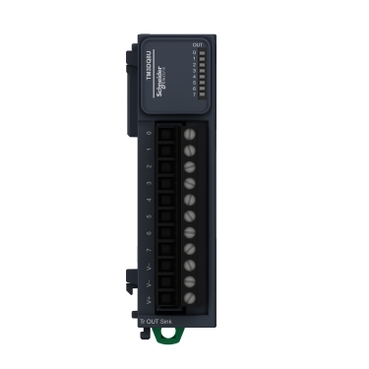

Modicon TM3 Discrete output module 8 outputs transistor NPN (screw)

Home ProductsIndustrialModiconDiscrete output module

Modicon TM3 Discrete output module 8 outputs transistor NPN (screw)

Item Number: TM3DQ8U

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width27.4 mm

Height icon

Height90 mm

Depth icon

Depth84.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete output module

Physical

Range compatibility

  • Modicon M241
  • Modicon M251
  • Modicon M221
  • Modicon M262

Local signalling

1 LED per channel (green) for output status

Mounting support

  • top hat type TH35-15 rail conforming to IEC 60715
  • top hat type TH35-7.5 rail conforming to IEC 60715
  • plate or panel with fixing kit

Height

90 mm

Width

27.4 mm

Depth

84.6 mm

Net weight

0.76 kg

Marking

CE

Standards

IEC 61131-2

Product certifications

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1402009EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

9

Package 3 bare product quantity

144

Average percentage of recycled plastic content

0 %

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Discrete output logic

negative logic (sink)

Discrete output type

transistor

Maximum cable distance between devices

unshielded cable: <30 m for transistor output

Pollution degree

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

12.5 cm

Package 1 length

10.5 cm

Package 1 weight

230.0 g

Unit type of package 2

S02

Number of units in package 2

9

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

2.427 kg

Unit type of package 3

P06

Number of units in package 3

144

Package 3 height

75 cm

Package 3 width

40 cm

Package 3 length

80 cm

Package 3 weight

25.058 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

65 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

42.6583784714421

Carbon footprint of the manufacturing phase [a1 to a3]

43 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.14743236520933076

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.017386681072515075

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

20.111394637285258

Carbon footprint of the use phase [b2, b3, b4, b6]

20 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

1.5786351232506797

Carbon footprint of the end-of-life phase [c1 to c4]

2 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

64.51322727825989

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Pvc free

Yes

End of life manual availability

ENVEOLI1402009EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
