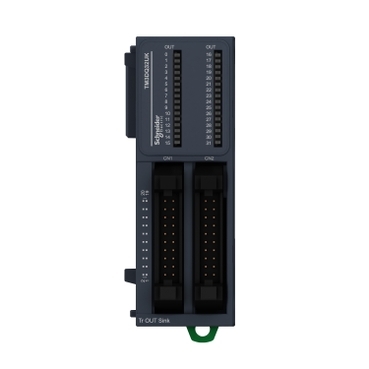

Modicon TM3 Discrete output module 32 outputs transistor NPN (HE10)

Home ProductsIndustrialModiconDiscrete output module

Modicon TM3 Discrete output module 32 outputs transistor NPN (HE10)

Item Number: TM3DQ32UK

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width33.5 mm

Height icon

Height90 mm

Depth icon

Depth81.3 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete output module

Physical

Range compatibility

  • Modicon M241
  • Modicon M251
  • Modicon M221
  • Modicon M262

Local signalling

1 LED per channel (green) for output status

Mounting support

  • top hat type TH35-15 rail conforming to IEC 60715
  • top hat type TH35-7.5 rail conforming to IEC 60715
  • plate or panel with fixing kit

Height

90 mm

Width

33.5 mm

Depth

81.3 mm

Net weight

0.112 kg

Marking

CE

Standards

IEC 61131-2

Product certifications

  • cULus
  • CE
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1402009EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

At least in Europe

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

288

Package 2 bare product quantity

9

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Discrete output logic

negative logic (sink)

Discrete output type

transistor

Maximum cable distance between devices

unshielded cable: <5 m for transistor output

Pollution degree

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.594 cm

Package 1 width

10.647 cm

Package 1 length

12.775 cm

Package 1 weight

220.0 g

Unit type of package 2

CAR

Number of units in package 2

9

Package 2 height

15.5 cm

Package 2 width

29.7 cm

Package 2 length

40.2 cm

Package 2 weight

2.411 kg

Unit type of package 3

P12

Number of units in package 3

288

Package 3 height

75 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

85 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

56 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

14.305638032847252

Carbon footprint of the manufacturing phase [a1 to a3]

14 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.04944196489848264

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.005830684965732328

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

41.1714399650085

Carbon footprint of the use phase [b2, b3, b4, b6]

41 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.5294008696153795

Carbon footprint of the end-of-life phase [c1 to c4]

0.5 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

56.061751517335345

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Pvc free

Yes

End of life manual availability

ENVEOLI1402009EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
