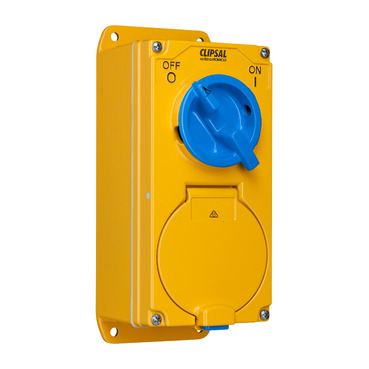

Metal Clad Switched Socket Outlet Combination 2 Gang, 250V, 2 Pole, 3 Sockets

Item Number: WMC310D

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PAC	9311554779801	-
6	CAR	19311554779808	-

Specifications

Design

Range	Clipsal
Colour tint	yellow
Product brand	Clipsal
Range of product	MetalClad
Product or component type	switched socket

Physical

Number of gangs	1 gang
[in] rated current	10 A
Ip degree of protection	IP66
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Eu rohs directive	Compliant By Exemption

Material

Material	cast aluminium

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
	Outside of Europe
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	4
Main colour tint	yellow
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.5 cm
Package 1 width	12.1 cm
Package 1 length	26.0 cm
Package 1 weight	1.827 kg
Unit type of package 2	CAR
Number of units in package 2	4
Package 2 height	24.5 cm
Package 2 width	25.3 cm
Package 2 length	29.8 cm
Package 2 weight	7.31 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	37 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	18.102993475269543
Carbon footprint of the manufacturing phase [a1 to a3]	18 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.4223842654551112
Carbon footprint of the distribution phase [a4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.2544322765639199
Carbon footprint of the installation phase [a5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.7536113492856644
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	37.46439639239673
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
