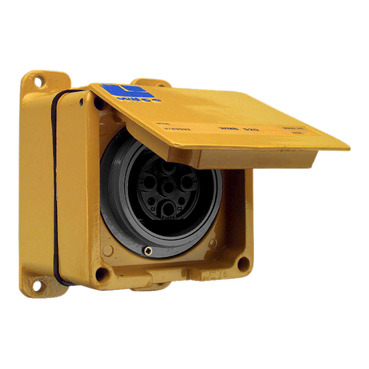

Metal Clad Socket Outlet 1 Gang, 20A, 500V, 5 Round Sockets, Cast Aluminium
Item Number: WMB520
Specifications
Design
Range of product
Wilco
Product brand
Clipsal
Physical
Device mounting
surface
Mounting mode
external mounting
[in] rated current
20 A
[ue] rated operational voltage
500 V 50/60 Hz conforming to EN 60309-2
Socket number
1
Depth
110 mm
Width
115 mm
Height
150 mm
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
cast aluminium
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Weee label
N/A
Outside of Europe
Voltage colour
black
Duration
7 h
Socket-outlet type
R
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
11.0 cm
Package 1 width
11.5 cm
Package 1 length
15.0 cm
Package 1 weight
0.94 kg
Sustainable packaging
No
Warranty (in months)
18
