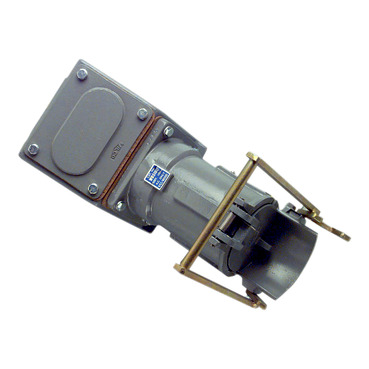

Metal Clad Socket Inlet 100A 500V 5R Pins

Item Number: WB5100R

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554114220	-

Specifications

Design

Range of product	Wilco
Product brand	Clipsal

Physical

[in] rated current	100 A
[ue] rated operational voltage	500 V 50/60 Hz conforming to EN 60309-2
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1210020EN
Eu rohs directive	Compliant By Exemption

Material

Material	cast iron

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Voltage colour	black
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	8.6 kg
Sustainable packaging	No
End of life manual availability	N/A
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Environmental Disclosure
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

STRAIGHT PLUG - 56 SERIES

STRAIGHT PLUG - 56 SERIES

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 429.1 KB

GDE1978001 - WB SERIES 5 PIN 63A-200A WIRING INSTRUCTIONS

GDE1978001 - WB SERIES 5 PIN 63A-200A WIRING INSTRUCTIONS

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 168.6 KB
