Metal Clad Series A Switched Socket Outlet 1 Gang, 63A, 500V, 5 Round Sockets

Item Number: WMC563

1 PCE 0

Where To Buy

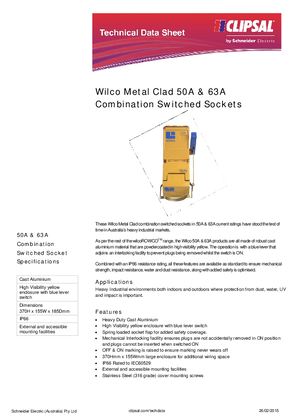

Datasheet

Download

Product Dimensions

Width155 mm

Height370 mm

Depth185 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554122935	-
2	CAR	19311554292369	-

Specifications

Design

Range of product	MetalClad
Product brand	Clipsal
Product or component type	switched socket
Device application	power supply

Physical

Number of poles	3
Number of power socket outlets	1 protective cover
[in] rated current	63 A
[ue] rated operational voltage	500 V AC
Device mounting	surface
Depth	185 mm
Width	155 mm
Height	370 mm
Ip degree of protection	IP66
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024_V1_EN
Eu rohs directive	Compliant By Exemption

Material

Material	cast aluminium: housing

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Number of modules	3
Electrical connection	industrial connector
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	19.0 cm
Package 1 width	17.0 cm
Package 1 length	36.5 cm
Package 1 weight	5.458 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	78 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	54.0810828615332
Carbon footprint of the manufacturing phase [a1 to a3]	54 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.261835424660097
Carbon footprint of the distribution phase [a4]	1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.7600937961061165
Carbon footprint of the installation phase [a5]	0.8 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	5.238757933443435
Carbon footprint of the end-of-life phase [c1 to c4]	5 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	78.27274504156534
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
