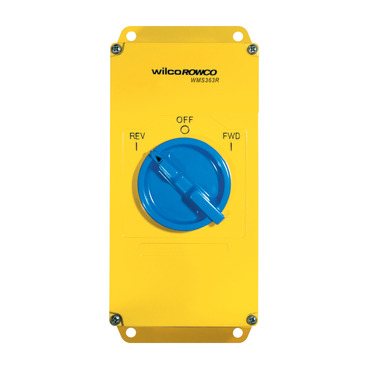

Metal Clad Reversing Switch 3 Pole, 63A, 415V, Made of Cast Aluminium

Home ProductsIndustrialMetal CladReversing Switch

Metal Clad Reversing Switch 3 Pole, 63A, 415V, Made of Cast Aluminium

Item Number: WMS363R

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • Series A
  • Wilco

Product brand

Clipsal

Physical

Device presentation

basic element with complete housing

Control type

rotary knob

Number of poles

3

Device mounting

base mounting

Local signalling

without

[ue] rated operational voltage

415 V AC

Rated current

63 A

Marking

ON-OFF

Fixing mode

by screws

Switch function

3-pole

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant By Exemption

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

cast aluminium

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Warranty duration(in months) bmecat

18

Weee label

N/A

Marking location

marking on surface

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

1.000 kg

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
Show all specifications

Documents & downloads

Filter items

  • All

  • Product Brochures

  • Other technical guide

  • Installation Instruction

  • Specification Guide

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
WilcoROWCO Metal Clad Industrial Switchgear, 17063
ZIP

WilcoROWCO Metal Clad Industrial Switchgear, 17063

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 967.3 KB
