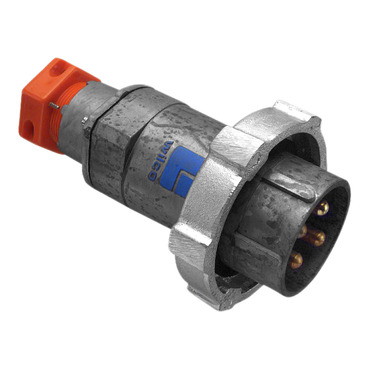

Metal Clad Plug Top Angled, 500V, 50A, 4 Round PIN, Screw Ring

Item Number: WMP450

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554123130	-
9	CAR	29311554306391	-

Specifications

Design

Range of product	Wilco
Product brand	Clipsal
Colour	body: aluminium

Physical

[in] rated current	50 A
[ue] rated operational voltage	500 V 50/60 Hz conforming to EN 60309-2
Connections - terminals	screw terminal
Cable entry	cable gland
Ip degree of protection	IP53
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP121020EN_V2
Eu rohs directive	Compliant By Exemption

Material

Material	aluminium

Others

Package 2 bare product quantity	6
Package 1 bare product quantity	1
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Voltage colour	black
Plug, socket, control station shape	straight
Pin arrangement	A1
Duration	7 h
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	25.6 cm
Package 1 width	11.3 cm
Package 1 length	12.6 cm
Package 1 weight	1.400 kg
Unit type of package 2	CAR
Number of units in package 2	6
Package 2 height	26.5 cm
Package 2 width	24.6 cm
Package 2 length	40.2 cm
Package 2 weight	8.7 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	16 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.247173275435627
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.5037990356361404
Carbon footprint of the distribution phase [a4]	0.5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.005210138684058944
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.008641331557165
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	2.994369352784711
Carbon footprint of the end-of-life phase [c1 to c4]	3 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	15.759193134097702
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
