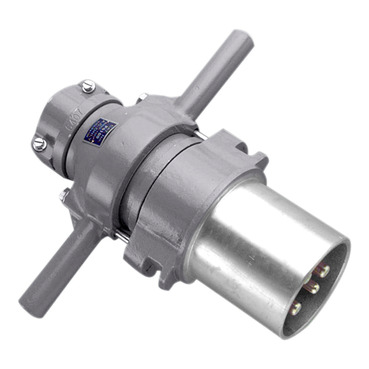

Metal Clad Multi Phase Plug Aluminium, 500V, 100A 4 Round pin

Item Number: P4100

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554104085	-
3	CAR	19311554519183	-

Specifications

Design

Range of product	Wilco
Product brand	Clipsal

Physical

[in] rated current	100 A
[ue] rated operational voltage	500 V 50/60 Hz conforming to EN 60309-2
Connections - terminals	screw terminal
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP121020EN_V2
Eu rohs directive	Compliant By Exemption

Material

Material	aluminium

Others

	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Voltage colour	black
Plug, socket, control station shape	straight
Duration	7 h
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	4.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	36 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	20.706209358387504
Carbon footprint of the manufacturing phase [a1 to a3]	21 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.439425816103258
Carbon footprint of the distribution phase [a4]	1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.014886110525882696
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.008641331557165
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	8.555341007956317
Carbon footprint of the end-of-life phase [c1 to c4]	9 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	35.72450362453013
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

GDE1977501_P4100-P5200 SERIES WIRING INSTRUCTIONS

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 169.3 KB

ZIP

P4100 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

P4100 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

P4100 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

P4100 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
