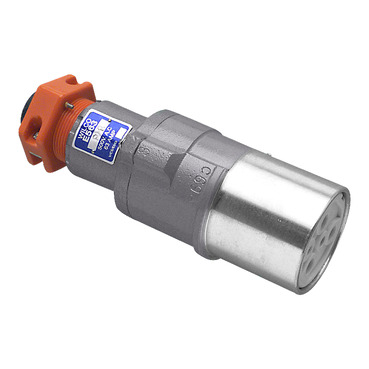

Metal Clad Multi Phase Appliance Connector 500V, 63A, 5 Round Sockets
Item Number: E563PR
Datasheet
Close
Specifications
Design
Range of product
- Wilco
- E
Product brand
Clipsal
Physical
[in] rated current
63 A
[ue] rated operational voltage
500 V 50/60 Hz conforming to EN 60309-2
Socket number
1
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
aluminium
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Voltage colour
black
Duration
7 h
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
