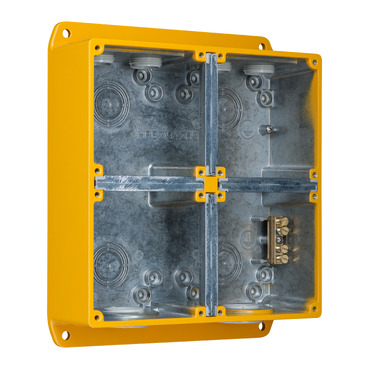

Metal Clad Multi Gang Enclosure 4 Gang, Cast Aluminium Material

Home ProductsIndustrialMetal CladMulti Gang Enclosure

Metal Clad Multi Gang Enclosure 4 Gang, Cast Aluminium Material

Item Number: WMMG4

1 PCE 0

Datasheet

Product Dimensions

Width201 mm

Height239 mm

Depth67 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PAC	9311554779566	-
4	CAR	19311554779563	-

Specifications

Design

Range	Clipsal
Product brand	Clipsal
Range of product	MetalClad
Product or component type	enclosure

Physical

Number of gangs	4 gangs
Width	201 mm
Height	239 mm
Depth	67 mm
Ip degree of protection	IP66
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1508013EN
Eu rohs directive	Compliant By Exemption

Material

Material	cast aluminium

Others

Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Package 1 bare product quantity	1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	20.55 cm
Package 1 width	7.25 cm
Package 1 length	24.25 cm
Package 1 weight	1.8 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.101694915582286
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.5329546876223422
Carbon footprint of the distribution phase [a4]	0.5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.11658647016790791
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	4.40561524461261
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
