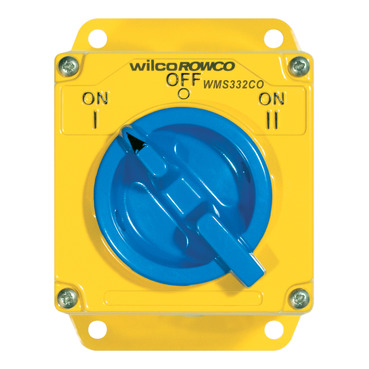

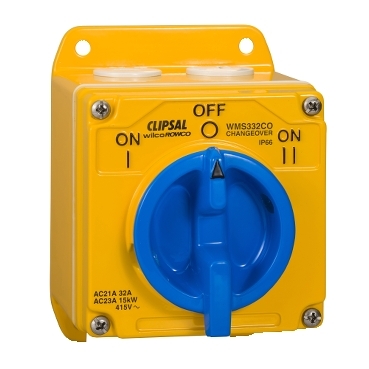

Metal Clad Changeover Switch 3 Pole, 32A, 415V, Made of Cast Aluminium
Item Number: WMS332CO
Datasheet
Close
Specifications
Design
Range of product
- Wilco
- Series A
Product brand
Clipsal
Physical
Device presentation
basic element with complete housing
Control type
rotary knob
Number of poles
3
Device mounting
base mounting
Local signalling
without
[ue] rated operational voltage
415 V AC
Rated current
32 A
Marking
ON-OFF
Fixing mode
by screws
Switch function
3-pole
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
cast aluminium
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Marking location
marking on surface
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.18 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
