Linergy Screw Terminal Fused, for 5X20,5X25,5X30mm Cartridge Fuse, 2PTS, 4M
Item Number: NSYTRV42SF5
Datasheet
Specifications
Design
Range of product
Range
Product or component type
Device application
Product compatibility
Warranty
Physical
Mounting mode
Length
Quantity per set
Width
Height
Connections - terminals
- 1 x screw terminal: upstream
- 1 x screw terminal: downstream
Number of terminals
Wire stripping length
Tool type
- connection: screwdriver
- disconnection: screwdriver
[ue] rated operational voltage
- 500 V conforming to EN/IEC 60947-7-1
- 600 V UL
- 600 V CSA
[in] rated current
- 6.3...6.3 A conforming to EN/IEC 60947...7-1
- 12 A UL
- 6.3...6.3 A CSA
Net weight
Range compatibility
- PrismaSeT G
- PrismaSeT P
- PrismaSet HD
- PrismaSeT Pack 250
- PanelSeT
- Mureva
- PrismaSeT XS
- TeSys
Product certifications
- UL
- CSA
Ambient air temperature for operation
- -40...130 °C conforming to IEC 60216...1
- -40...130 °C conforming to VDE 0304-T21
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Material
Material
Others
Life cycle assessment data
If one of the deliverables is not relevant please give the reason
Substance regulation data deliverable
Package 4 bare product quantity
Package 3 bare product quantity
Package 2 bare product quantity
Package 1 bare product quantity
Product name
Device short name
Terminal block type
Terminal block level
Nominal cross section
Fuse size
Connection position
Number of measurement input
Cable cross section
- 0.2...4 mm², flexible without cable end
- 0.2...4 mm², solid or flexible with cable end
Tightening torque
Dielectric loss
- 0.01 at 1 MHz conforming to IEC 60250
- 0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant
Resistivity
- 10000 Ω.cm conforming to IEC 60093
- 10000 Ω.cm conforming to VDE 0303-T30
Surface resistance
- 1000 MOhm conforming to IEC 60093
- 1000 MOhm conforming to VDE 0303-T30
Creep resistance
- 500 CTI (> 400 kB) conforming to IEC 60093
- 500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance
Compatibility code
Dielectric strength
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Green premium status for reporting
Sustainable packaging
Weee
Halogen content performance
Halogen content performance
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Recycled metal content at cr level
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-

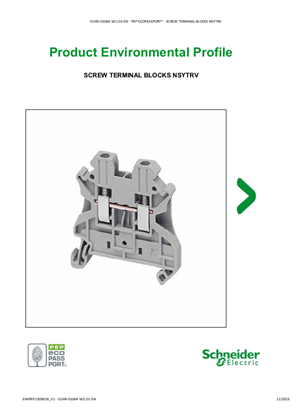

Environmental Disclosure
-

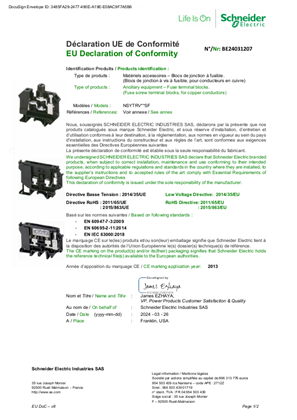

Declaration of Conformity
-
