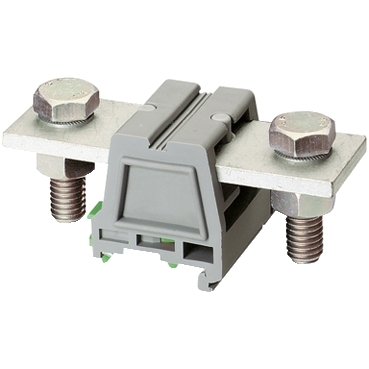

Linergy Screw Terminal Feed Through, 2 Points, LUG-LUG, 150mm², Grey
Item Number: NSYTRV1502BB
Datasheet
Specifications
Design
Range of product
Range
Product or component type
Product compatibility
Warranty
Physical
Mounting mode
Length
Quantity per set
Width
Height
Connections - terminals
- 1 x lug: upstream (M12)
- 1 x lug: downstream (M12)
Number of terminals
Wire stripping length
Tool type
- connection: screwdriver
- disconnection: screwdriver
[ue] rated operational voltage
- 1000 V conforming to EN/IEC 60947-7-1
- 600 V UL
- 600 V CSA
[in] rated current
- 309 A conforming to EN/IEC 60947...7-1
- 285 A UL
- 275 A CSA
Range compatibility
- PrismaSeT G
- PrismaSeT P
- PrismaSet HD
- PanelSeT
Product certifications
- UL
- GL
- CSA
Ambient air temperature for operation
- -40...130 °C conforming to IEC 60216...1
- -40...130 °C conforming to VDE 0304-T21
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Material
Material
- polyamide 6/6: insulating case
- copper alloy: connector and screw
- copper alloy: commoning link
- chromium-nickel steel: spring
Others
Product name
Device short name
Accessory / separate part category
Terminal block type
Terminal block level
Nominal cross section
Connection position
Number of measurement input
Cable cross section
- 35...150 mm², solid
- 50...150 mm², flexible without cable end
Tightening torque
Dielectric loss
- 0.01 at 1 MHz conforming to IEC 60250
- 0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant
Resistivity
- 10000 MΩ.m conforming to IEC 60093
- 10000 MΩ.m conforming to VDE 0303-T30
Surface resistance
- 1000 GΩ conforming to IEC 60093
- 1000 GΩ conforming to VDE 0303-T30
Creep resistance
- 500 CTI (> 400 kB) conforming to IEC 60093
- 500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance
Compatibility code
Dielectric strength
Unit type of package 1
Number of units in package 1
Weee
Halogen content performance
Halogen content performance
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
