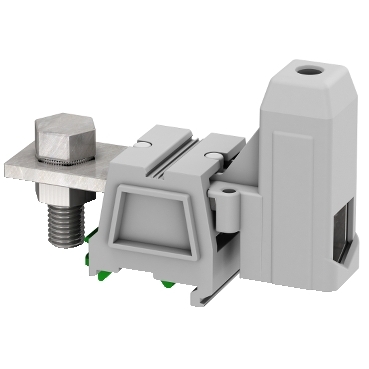

Linergy Screw Terminal Feed Through, 2 Points, LUG-Connector, 95mm², Grey

Item Number: NSYTRV952BC

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480532252	-
10	CAR	13606480532259	-

Specifications

Design

Range of product	Linergy
Range	Linergy
Product or component type	terminal block
Product compatibility	Spacial enclosures
Warranty	18 months

Physical

Mounting mode	clip-on
Length	114 mm
Quantity per set	set of 10
Width	40 mm
Height	86 mm
Connections - terminals	1 x lug: upstream (M12) 1 x screw terminal: downstream (M12)
Number of terminals	2
Wire stripping length	29 mm
Tool type	connection: screwdriver disconnection: screwdriver
[ue] rated operational voltage	1000 V conforming to EN/IEC 60947-7-1 600 V UL 600 V CSA
[in] rated current	232 A conforming to EN/IEC 60947...7-1 230 A UL 200 A CSA
Range compatibility	PrismaSeT G PrismaSeT P PrismaSet HD PanelSeT
Product certifications	GL CSA UL
Ambient air temperature for operation	-40...130 °C conforming to IEC 60216...1 -40...130 °C conforming to VDE 0304-T21
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1304013EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	polyamide 6/6: insulating case copper alloy: connector and screw copper alloy: commoning link chromium-nickel steel: spring

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	PEP created standard configuration, but individal CR is component /core parts
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Linergy TR
Device short name	TRV
Accessory / separate part category	connection accessory
Terminal block type	passthrough
Terminal block level	1
Nominal cross section	95 mm²
Connection position	sideways
Number of measurement input	0
Cable cross section	25...95 mm², solid 35...95 mm², flexible without cable end
Tightening torque	25...30 N.m upstream 15...20 N.m downstream
Dielectric loss	0.01 at 1 MHz conforming to IEC 60250 0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant	3.7 at 1 MHz
Creep resistance	500 CTI (> 400 kB) conforming to IEC 60093 500 CTI (> 400 kB) conforming to VDE 0303-T30
Surface resistance	1000 GΩ conforming to IEC 60093 1000 GΩ conforming to VDE 0303-T30
Resistivity	10000 MΩ.m conforming to IEC 60093 10000 MΩ.m conforming to VDE 0303-T30
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Compatibility code	terminal block
Dielectric strength	1000 V conforming to IEC 60243-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5 cm
Package 1 width	7 cm
Package 1 length	27 cm
Package 1 weight	296 g
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.853955422
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.040015154
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.025008908
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.84408489
Carbon footprint of the end-of-life phase [c1 to c4]	0.8 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Removable battery	N/A
Total lifecycle carbon footprint	2.763064374
Average percentage of recycled metal content	0 %
Pvc free	Yes
Silicone-free	Yes
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
