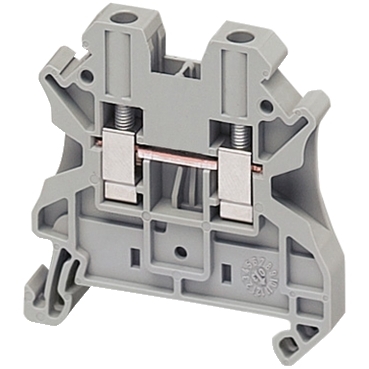

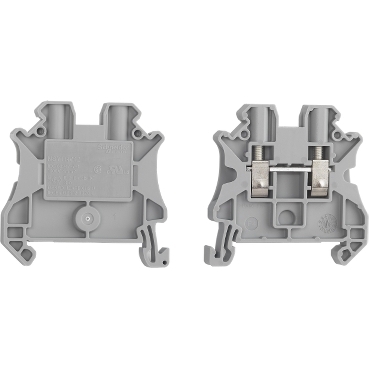

Datasheet
Specifications
Design
Range of product
Range
Product or component type
Product compatibility
Warranty
Physical
Mounting mode
Length
Quantity per set
Width
Height
Connections - terminals
- 1 x screw terminal: upstream (M3)
- 1 x screw terminal: downstream (M3)
Number of terminals
Wire stripping length
Tool type
- connection: screwdriver
- disconnection: screwdriver
[ue] rated operational voltage
- 1000 V conforming to EN/IEC 60947-7-1
- 600 V CSA
- 600 V UL
[in] rated current
- 32 A conforming to EN/IEC 60947...7-1
- 30 A CSA
- 30 A UL
Net weight
Range compatibility
- PrismaSeT G
- PrismaSeT P
- PrismaSet HD
- PrismaSeT Pack 250
- PanelSeT
- Mureva
- PrismaSeT XS
- TeSys
Product certifications
- VDE
- GL
- CSA
- DNV
Ambient air temperature for operation
- -40...130 °C conforming to IEC 60216...1
- -40...130 °C conforming to VDE 0304-T21
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile

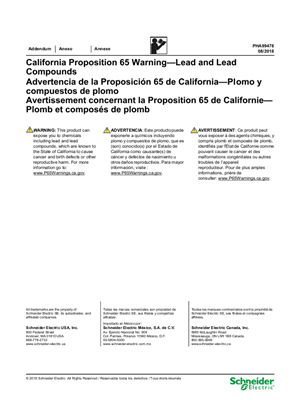

California proposition 65
Material
Material
- polyamide 6/6: insulating case
- copper alloy: connector and screw
- copper alloy: commoning link
- chromium-nickel steel: spring
Others
Life cycle assessment data
If one of the deliverables is not relevant please give the reason
Substance regulation data deliverable
Package 3 bare product quantity
Package 2 bare product quantity
Package 1 bare product quantity
Product name
Device short name
Accessory / separate part category
Terminal block type
Terminal block level
Nominal cross section
Connection position
Number of measurement input
Cable cross section
- 0.14...6 mm², solid cable with cable end
- 0.2...4 mm², flexible cable with cable end
- 0.2...6 mm², solid cable without cable end
- 0.2...6 mm², flexible cable without cable end
Tightening torque
Dielectric loss
- 0.01 at 1 MHz conforming to IEC 60250
- 0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant
Resistivity
- 10000 MΩ.m conforming to IEC 60093
- 10000 MΩ.m conforming to VDE 0303-T30
Surface resistance
- 1000 GΩ conforming to IEC 60093
- 1000 GΩ conforming to VDE 0303-T30
Creep resistance
- 500 CTI (> 400 kB) conforming to IEC 60093
- 500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance
Compatibility code
Dielectric strength
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging without single use plastic
Packaging made with recycled cardboard
Scip number
Green premium status for reporting
Sustainable packaging
Weee
Halogen content performance
Halogen content performance
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Recycled metal content at cr level
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
