Linergy, End clamp with screw

Item Number: NSYTRAABV35

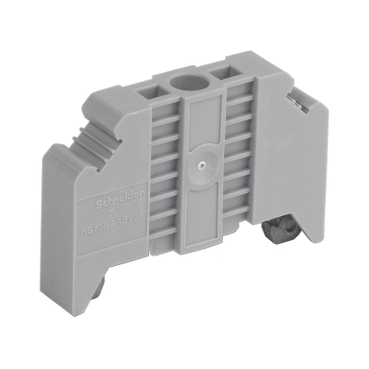

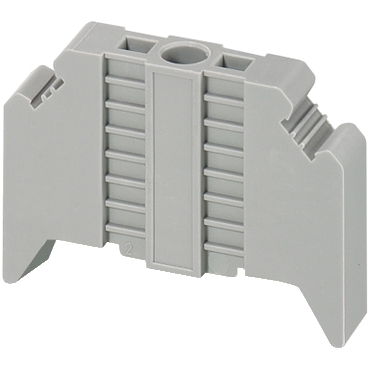

Linergy NSYTR end stop for terminal block. It is compatible with TRV screw terminal, TRH IDC, TRP push-in and TRR spring terminal block. It has grey surface treatment. Mounting by screws. Sold in lots of 50 units.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Linergy

Range

Linergy

Product or component type

end stop

Product compatibility

  • TRV screw terminal terminal block
  • TRP push-in terminal block
  • TRR spring terminal terminal block
  • TRH IDC terminal block

Warranty

18 months

Physical

Length

50.5 mm

Mounting mode

by screws

Quantity per set

set of 50

Net weight

14.8 g

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

50

Package 3 bare product quantity

1150

Package 4 bare product quantity

9200

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Product name

TR

Device short name

TRA

Accessory / separate part category

mounting accessory

Thickness

9.5 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.950 cm

Package 1 width

3.300 cm

Package 1 length

4.900 cm

Package 1 weight

14.000 g

Unit type of package 2

BB1

Number of units in package 2

50

Package 2 height

3.700 cm

Package 2 width

10.500 cm

Package 2 length

24.500 cm

Package 2 weight

716.000 g

Unit type of package 3

S03

Number of units in package 3

1150

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

16.960 kg

Sustainable packaging

Yes

Pvc free

Yes

Halogen-free status

Halogen free plastic parts product

Silicone-free

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Halogen-free status

Halogen free plastic parts product

Pvc free

Yes

Silicone-free

Yes

Take-back

No

Warranty (in months)

18
Show all specifications
