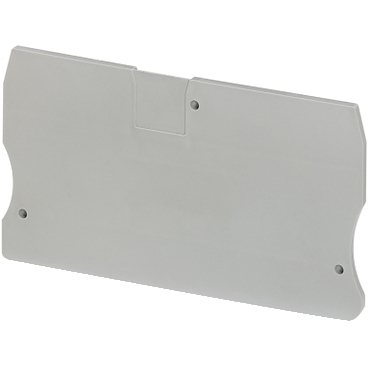

Linergy Cover plate Linergy TR, 2.2mm width, 2 points, for spring terminals NSYTRR162, grey, Set of 50

Home ProductsIndustrialLinergyCover plate

Linergy Cover plate Linergy TR, 2.2mm width, 2 points, for spring terminals NSYTRR162, grey, Set of 50

Item Number: NSYTRACR162

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480533907	-
50	BAG	23606480533901	-

Specifications

Design

Range of product	Linergy
Range	Linergy
Product or component type	cover plate
Product compatibility	TRR spring terminal terminal block, length = 80 mm

Physical

Number of terminals	2
Quantity per set	set of 50
Net weight	4.6 g
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	50
Package 3 bare product quantity	500
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Product name	Linergy TR
Device short name	TRA
Accessory / separate part category	insulation accessory
Thickness	2.2 mm
Cable cross section	16 mm²
Terminal block level	1
Number of measurement input	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.000 cm
Package 1 width	3.250 cm
Package 1 length	2.375 cm
Package 1 weight	4.000 g
Unit type of package 2	BB1
Number of units in package 2	50
Package 2 height	7.000 cm
Package 2 width	13.000 cm
Package 2 length	19.000 cm
Package 2 weight	242.000 g
Unit type of package 3	S02
Number of units in package 3	500
Package 3 height	15.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	2.778 kg
Sustainable packaging	No
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Pvc free	Yes
Silicone-free	Yes
Take-back	No
Warranty (in months)	18
