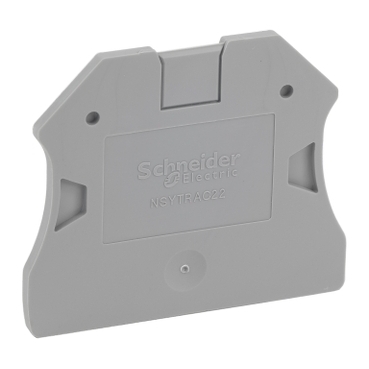

Linergy Cover plate Linergy TR, 2 points, 2.2mm width, for screw terminals NSY TRV22,TRV42,TRV, grey, Set of 50

Item Number: NSYTRAC22

1 PCE 0

Linergy NSYTR cover plate for terminal block. It has grey surface treatment. For screw single-level terminal block 1x1, 2.5 to 10mm². It is compatible with TRV screw terminal. Sold in lots of 50 units.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480533549	-
50	BAG	23606480533543	-

Specifications

Design

Range of product	Linergy
Range	Linergy
Product or component type	cover plate
Product compatibility	TRV screw terminal - passthrough terminal block, length = 47.7 mm TRV screw terminal - protective earth terminal block, length = 47.7 mm TRV screw terminal - blade disconnect terminal block, length = 55 mm
Warranty	18 months

Physical

Number of terminals	2
Quantity per set	set of 50
Net weight	2.4 g
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Package 4 bare product quantity	14400
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	3600
Package 2 bare product quantity	50
Package 1 bare product quantity	1
Legacy weee scope	Out
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
	At least in Europe
Warranty duration(in months) bmecat	18
Product name	Linergy TR
Device short name	TRA
Accessory / separate part category	insulation accessory
Thickness	2.2 mm
Cable cross section	6 mm² 2.5...2.5 mm² 4 mm² 10 mm²
Terminal block level	1
Number of measurement input	2 1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	0.400 cm
Package 1 width	4.000 cm
Package 1 length	4.700 cm
Package 1 weight	2.000 g
Unit type of package 2	BB1
Number of units in package 2	50
Package 2 height	3.000 cm
Package 2 width	13.000 cm
Package 2 length	17.000 cm
Package 2 weight	131.000 g
Unit type of package 3	S04
Number of units in package 3	3600
Package 3 height	30.000 cm
Package 3 width	40.000 cm
Package 3 length	60.000 cm
Package 3 weight	9.950 kg
Sustainable packaging	No
Pvc free	Yes
Halogen-free status	Halogen free plastic parts product
Silicone-free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
China rohs label	1
Halogen-free status	Halogen free plastic parts product
Pvc free	Yes
Silicone-free	Yes
Take-back	No
Warranty (in months)	18

Show all specifications
