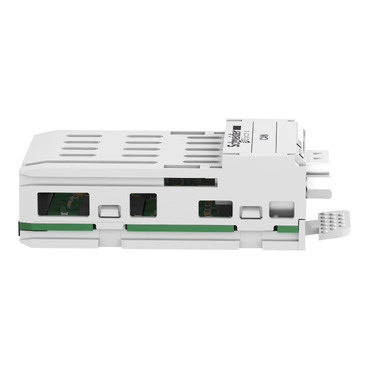

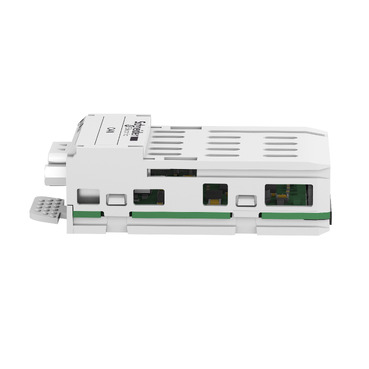

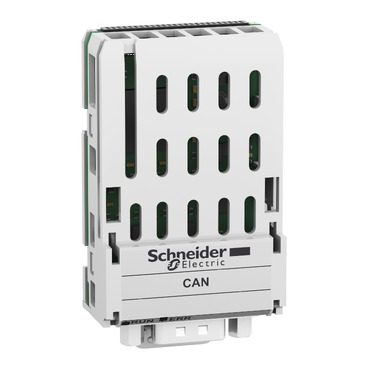

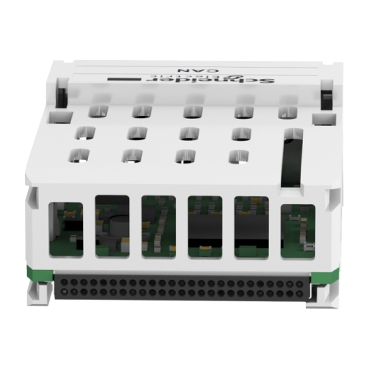

Lexium 32 Communication module CANopen SUB-D9

Item Number: VW3A3618

1 PCE 0

This CANopen communication module is an option for variable speed drives of Altivar range. It is equipped with a 9-way male SUB-D connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480177576	-

Specifications

Design

Range of product	Altivar
Product or component type	communication module
Product compatibility	Lexium 32M
Warranty	18 months

Physical

Range compatibility	Altivar Process ATV600 Altivar Machine ATV340 except Sercos drives Altivar 32 Altivar Machine ATV320 Lexium 32 Altivar Process Modular Altivar Process ATV900
Communication port protocol	CANopen, CANmotion
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2010018EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	24
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Accessory / separate part category	communication accessories
Electrical connection	1 male connector SUB-D 9, CANopen, CANmotion
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.700 cm
Package 1 width	6.300 cm
Package 1 length	9.000 cm
Package 1 weight	73.000 g
Unit type of package 2	S01
Number of units in package 2	24
Package 2 height	15.000 cm
Package 2 width	15.000 cm
Package 2 length	40.000 cm
Package 2 weight	1.976 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	2a2f2e41-9976-44a1-aaef-cecaebe1de88
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
