Harmony XB5R, Wireless and batteryless package, Wireless metal 22mm black pushbutton, non configurable receiver, 24V DC

Home ProductsIndustrialHarmonyWireless and batteryless package, Wireless metal 22mm black pushbutton, non configurable receiver, 24V DC

Harmony XB5R, Wireless and batteryless package, Wireless metal 22mm black pushbutton, non configurable receiver, 24V DC

Item Number: XB4RFB01

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4R

Product or component type

wireless and batteryless package

Warranty

18 months

Physical

Transmission frequency

2405 MHz for transmitter|2405 MHz for receiver

Control type

wireless and batteryless push-button Ø 22 mm assembled on fixing collar

Communication port protocol

Zigbee conforming to IEEE 802.15.4

Number of channels

1

Product certifications

CCC|C-Tick|GOST|CSA|UL

Marking

CE

Standards

UL 508|EN/IEC 60947-1|CSA C22.2 No 14|EN/IEC 60947-5-1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Device short name

XB4R

Head material

metal

Level or class

5M00G7W

Antenna type

omnidirectional

Type of receiver

non-programmable receiver (1 relay)

[us] rated supply voltage

24 V DC

Kit composition

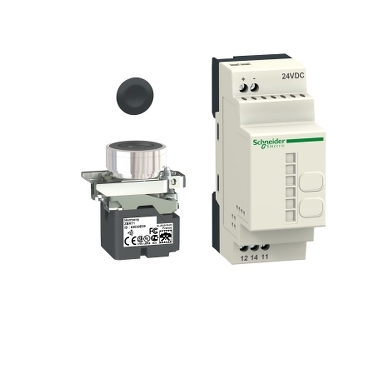

1 diameter: 22 mm|1 fixing collars|1 push-button head diameter: 22 mm|1 transmitter|1 receiver|1 set of caps

Max power consumption in w

1 mW

Modulation technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

Customizable

no

Customizable

0

Compatibility code

XB4R

[us] rated supply voltage

24 V

Radio agreement

ARIB T66|RSS|ICASA|SRRC|FCC|ANATEL

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.300 cm

Package 1 width

10.500 cm

Package 1 length

11.000 cm

Package 1 weight

235.000 g

Unit type of package 2

S03

Number of units in package 2

16

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.000 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
