Harmony Electromechanical Relays Universal plug in relay 10A, 3CO, with LED, lockable test button, 125V DC

Home ProductsIndustrialHarmonyUniversal plug in relay

Harmony Electromechanical Relays Universal plug in relay 10A, 3CO, with LED, lockable test button, 125V DC

Item Number: RUMC32GD

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

plug-in relay

Physical

Control type

lockable test button

[in] rated current

10 A

Electrical durability

100000 cycles for resistive load

[ie] rated operational current

  • 10 A at 277 V AC conforming to UL
  • 10 A at 30 V DC conforming to UL
  • 10 A at 277 V AC (same polarity) conforming to CSA
  • 10 A at 30 V DC conforming to CSA
  • 5 A at 250 V AC (NC) conforming to IEC
  • 5 A at 28 V DC (NC) conforming to IEC
  • 10 A at 250 V AC (NO) conforming to IEC
  • 10 A at 28 V DC (NO) conforming to IEC

Mechanical durability

5000000 cycles

Device presentation

complete product

Net weight

0.086 kg

Ambient air temperature for operation

-40...55 °C

Ip degree of protection

IP40

Standards

  • CSA C22.2 No 14
  • UL 508
  • IEC 61810-1

Product certifications

  • EAC
  • CSA
  • UL

Ambient air temperature for storage

-40...85 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

X

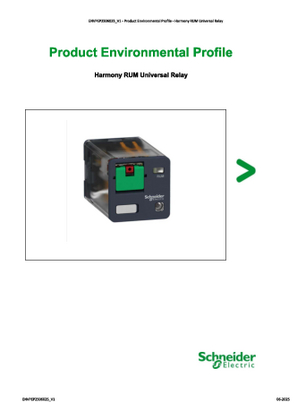

Environmental disclosure

ENVPEP1406038EN

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material

AgNi

Others

Package 1 bare product quantity

1

Package 3 bare product quantity

60

Package 2 bare product quantity

10

Series name

RUM series

Relay type

universal relay

Contacts type and composition

3 C/O

Status led

with

[uc] control circuit voltage

125 V

[uc] control circuit voltage

125 V DC

Control circuit type

DC

[ithe] conventional enclosed thermal current

10 A at -40-55 °C

[uimp] rated impulse withstand voltage

4 kV (1.2/50 µs)

Minimum switching capacity

170 mW at 10 mA, 17 V

Operating time

20 ms at nominal voltage

Rated operational voltage limits

100...137.5 V DC

[ui] rated insulation voltage

  • 250 V conforming to IEC
  • 300 V conforming to CSA
  • 300 V conforming to UL

Reset time

20 ms at nominal voltage

Maximum switching voltage

250 V conforming to IEC

Drop-out voltage threshold

>= 0.1 Uc DC

Load current

  • 10 A at 250 V AC
  • 10 A at 28 V DC

Average resistance

9766 Ohm at 20 °C +/- 10 %

Maximum switching capacity

2500 VA/280 W

Average coil consumption

1.4 W

Safety reliability data

B10d = 100000

Operating rate

  • <= 18000 cycles/hour no-load
  • <= 1200 cycles/hour under load

Utilisation coefficient

20 %

Compatibility code

RUM

Dielectric strength

  • 1500 V AC between contacts with micro disconnection
  • 2500 V AC between coil and contact with reinforced
  • 2000 V AC between poles with basic

Protection category

RT I

Pollution degree

2

Operating position

any position

Test levels

level A group mounting

Shape of pin

cylindrical

Vibration resistance

  • 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
  • 4 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating

Shock resistance

  • 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
  • 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.000 cm

Package 1 width

3.500 cm

Package 1 length

3.500 cm

Package 1 weight

94.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

3.800 cm

Package 2 width

14.600 cm

Package 2 length

19.700 cm

Package 2 weight

995.000 g

Unit type of package 3

S02

Number of units in package 3

60

Package 3 height

15.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

6.739 kg

Packaging without single use plastic

Yes

Packaging made with recycled cardboard

Yes

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

20.9767288092

Global warming ; total life cycle​

21 kg CO2 eq.

Minimum percentage of recycled plastic content

0
