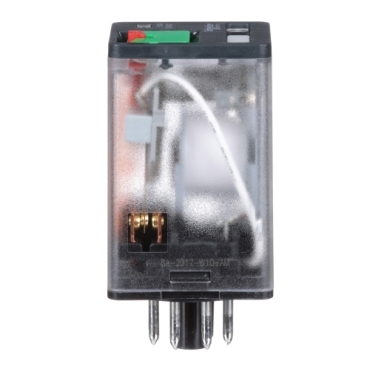

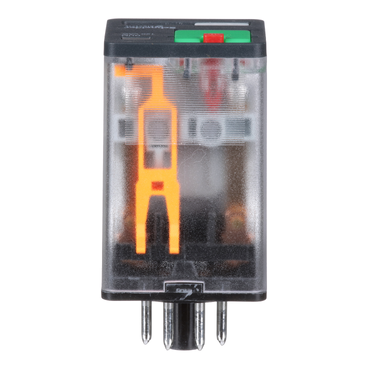

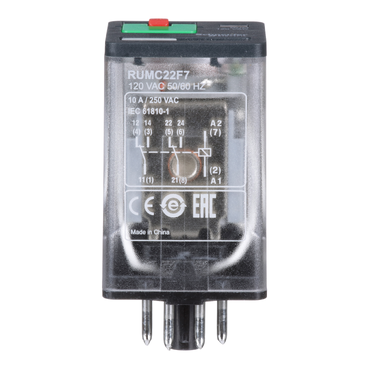

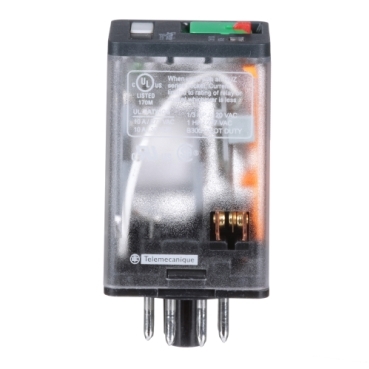

Harmony Electromechanical Relays Universal plug in relay 10A, 2CO, with LED, lockable test button, 120V AC

Item Number: RUMC22F7

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480626692	-
10	CAR	13606480626699	-

Specifications

Design

Range of product	Harmony Electromechanical Relays
Product or component type	plug-in relay

Physical

Control type	lockable test button
[in] rated current	10 A
Electrical durability	100000 cycles for resistive load
[ie] rated operational current	10 A at 277 V AC conforming to UL 10 A at 30 V DC conforming to UL 10 A at 30 V DC conforming to CSA 5 A at 250 V AC (NC) conforming to IEC 5 A at 28 V DC (NC) conforming to IEC 10 A at 250 V AC (NO) conforming to IEC 10 A at 28 V DC (NO) conforming to IEC 10 A at 277 V AC conforming to CSA
Mechanical durability	5000000 cycles
Device presentation	complete product
Net weight	0.086 kg
Ambient air temperature for operation	-40...55 °C
Ip degree of protection	IP40
Standards	IEC 61810-1 UL 508 CSA C22.2 No 14
Product certifications	EAC UL CSA
Ambient air temperature for storage	-40...85 °C
Reach free of svhc	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2506025EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	AgNi

Others

Legacy weee scope	Out
Package 4 bare product quantity	960
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	60
Package 2 bare product quantity	10
Package 1 bare product quantity	1
Weee label	No
	At least in Europe
Warranty duration(in months) bmecat	18
Series name	RUM series
Relay type	universal relay
Contacts type and composition	2 C/O
Status led	with
[uc] control circuit voltage	120 V
[uc] control circuit voltage	120 V AC 50/60 Hz
Control circuit type	AC
[ithe] conventional enclosed thermal current	10 A at -40-55 °C
[uimp] rated impulse withstand voltage	4 kV (1.2/50 µs)
Minimum switching capacity	170 mW at 10 mA, 17 V
Average coil consumption in va	3 at 60 Hz
Operating time	20 ms at nominal voltage
Rated operational voltage limits	96...132 V AC
[ui] rated insulation voltage	250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL
Reset time	20 ms at nominal voltage
Maximum switching voltage	250 V conforming to IEC
Drop-out voltage threshold	>= 0.15 Uc AC
Average resistance	1700 Ohm at 20 °C +/- 15 %
Maximum switching capacity	2500 VA/280 W
Safety reliability data	B10d = 100000
Operating rate	<= 18000 cycles/hour no-load <= 1200 cycles/hour under load
Utilisation coefficient	20 %
Compatibility code	RUM
Dielectric strength	1500 V AC between contacts with micro disconnection 2500 V AC between coil and contact with reinforced 2000 V AC between poles with basic
Protection category	RT I
Pollution degree	3
Operating position	any position
Test levels	level A group mounting
Shape of pin	cylindrical
Load current	10 A at 250 V AC 10 A at 28 V DC
Vibration resistance	3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation 4 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating
Shock resistance	10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.500 cm
Package 1 width	3.500 cm
Package 1 length	6.500 cm
Package 1 weight	90.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	4.000 cm
Package 2 width	15.000 cm
Package 2 length	20.000 cm
Package 2 weight	957.000 g
Unit type of package 3	S02
Number of units in package 3	60
Package 3 height	15.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	5.663 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	36 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.06634012030017
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05812502712407452
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.014730795102679814
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	31.666639636605897
Carbon footprint of the use phase [b2, b3, b4, b6]	32 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.162686078291481
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	35.9685216574243
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
