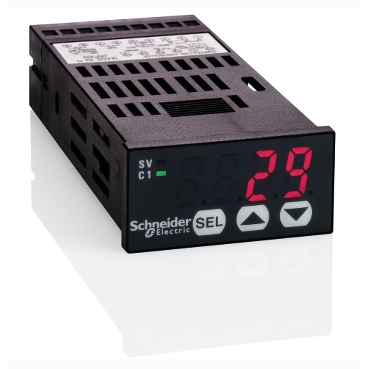

Harmony Control Relays Temperature Control Relay REG - 24 x 48mm - 100..240V AC - current 4..20 mA

Item Number: REG24PTP1JHU

1 PCE 0

Where To Buy

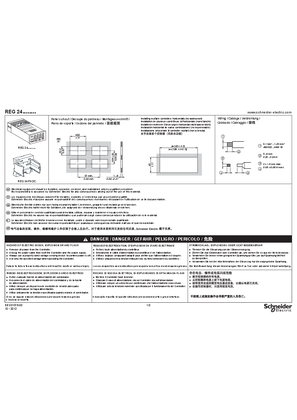

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480059858	-

Specifications

Design

Range of product	Zelio Control
Product or component type	modular measurement and control relays
Warranty	18 months

Physical

Communication port protocol	Modbus
Function available	auto tuning ramp 8 steps PID hysteresis on-off fuzzy logic
Marking	CE
Mounting support	panel 35 mm symmetrical DIN rail
Standards	EN 61326-1 CSA C22.2 No 24-93 EN 61010-1
Product certifications	GOST cURus (873)
Ambient air temperature for storage	-20...60 °C
Ambient air temperature for operation	-10...50 °C
Relative humidity	90 % without condensation
Ip degree of protection	IP66 (front face) conforming to IEC 60529 IP20 (rear)

Others

	At least in Europe
Warranty duration(in months) bmecat	18
Relay type	temperature control relays
Product specific application	packaging HVAC industrial machines heating or cooling
Relay name	REG
Outer dimension	1/32 DIN 24 x 48 mm
Analogue input type	temperature probe for Pt 100 thermocouple for thermocouple J, K, R, B, S, T, E, N, PLII
[us] rated supply voltage	100...240 V AC
Supply voltage limits	85...264 V
Measurement accuracy	0.5 % full scale
Sampling duration	500 ms
Number of outputs	1 analog output
Output type	analog 4...20 mA
Power consumption in va	6 VA at 100 V AC 8 VA at 240 V AC
Method of access	slave
Transmission frame	RTU
Physical interface	RS485 non isolated
Exchange mode	half duplex
Transmission rate	9600, 19200 kbit/s
Operating position	any position
Display type	7 segments LCD
Display digits	4
Signalling function	setpoint value indicator (SV) LED green process output 1 active (C1) LED red Modbus alarm (AL2) LED process value LCD display
Type of output	analog
Operating altitude	2000 m
Storage altitude	0...3000 m
Vibration resistance	1 gn (f= 10-70 Hz) conforming to IEC 60068-2-6
Shock resistance	5 gn conforming to IEC 60068-2-27
Nema degree of protection	NEMA 4X front face
Unit type of package 1	PCE
Number of units in package 1	1
Sustainable packaging	No
Warranty (in months)	18
